Quick Details
-
Weight:
-
2830 KG
-
Power:
-
35HP
-
Engine:
-
Laidong 4L22BT
-
Gauge:
-
1150mm
-
Ground Clearance:
-
240mm
-
Track Width:
-
260mm
-
Pitch:
-
130mm
-
Overall Dimension:
-
2960*1640*2260mm
-
Product name:
-
China 35HP Mini Crawler Traktor
-
After Warranty Service:
-
Online support
Quick Details
-
Brand Name:
-
Xinkai
-
Place of Origin:
-
Hubei, China
-
Engine Brand:
-
Laidong
-
Weight:
-
2830 KG
-
Power:
-
35HP
-
Engine:
-
Laidong 4L22BT
-
Gauge:
-
1150mm
-
Ground Clearance:
-
240mm
-
Track Width:
-
260mm
-
Pitch:
-
130mm
-
Overall Dimension:
-
2960*1640*2260mm
-
Product name:
-
China 35HP Mini Crawler Traktor
-
After Warranty Service:
-
Online support

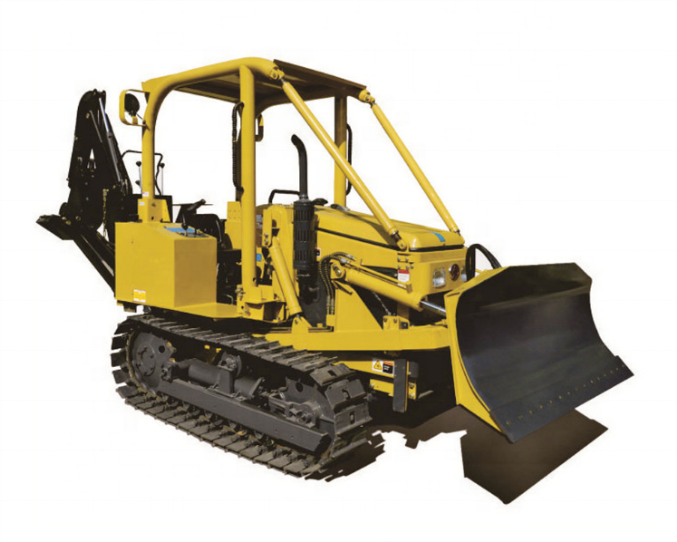

China 35HP Mini Crawler Traktor
FD3
5
6 multi-function crawler tractor
is mainly used for bulldozing and level off land, snow, digging, ditch cleaning etc,
with
characteristics of high efficiency
and
big traction
.
After four unity before loading,
it
can realize loading, bulldozing, leveling, clamping, fast conversion between different practices
and
work more flexible.
This series product can be equipped with different farming tools , namely the hydraulic reversing clutch and the operation more easy and flexible .
|
Dozer model |
FD356S-S |
|
Length(mm) |
2960(with blade) |
|
Width(mm) |
1640(with blade) |
|
Height(mm) |
2160(up to 2260) |
|
Weight(kg) |
2830 |
|
Gauge (mm) |
1150 |
|
Ground clearance(mm) |
240 |
|
Track width (mm) |
260 |
|
Pitch (mm) |
130 |
|
Traction(kN) |
24 |
(1)6 way dozer blade
|
|
|
|
Width ×Height(mm) |
1640(1740)×675 |
|
Lifting height(mm) |
500 |
|
Depth (mm) |
100~150 |
|
Cutting angle |
52.5° |
|
Max.digging depth of blade(mm) |
80 |
|
Blade Capacity |
0.67 m 3 |
|
Rated working pressure(MPa) |
16 |
