Quick Details
-
Luminous Intensity:
-
Super bright
-
Luminous Flux(lm):
-
>40000LM
-
Optical Attenuation(%):
-
3
-
Power Dissipation:
-
3
-
Viewing Angle(°):
-
120
-
Color Temperature:
-
3000K, 6000K
-
Operating Temperature(℃):
-
-40 - 70
-
Storage Temperature(℃):
-
10 - 50
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
COOLEEON
-

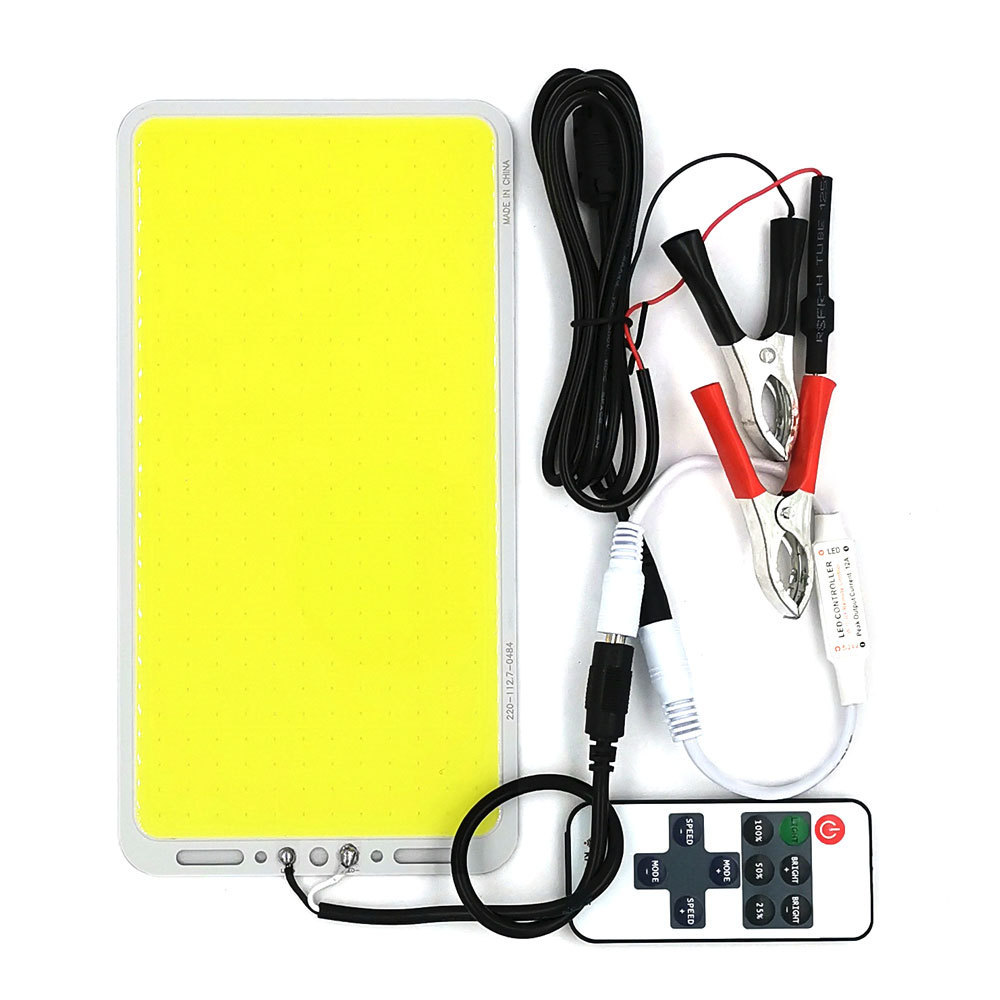

Product name:
-
COB LED Panel Light
-
COB Size:
-
220x113mm
-
Working Voltage:
-
DC 12-14V
-
Max current:
-
15A
-
Keyword:
-
Dimmable LED light
-
Luminous efficiency:
-
>200LM/W
-
Advantage:
-
Super bright + remote control
-
Emitting Colour:
-
Warm/ cold white
-
LED number:
-
336pcs LED chips
Quick Details
-
Warranty(Year):
-
1-Year
-
Luminous Efficacy(lm/w):
-
120
-
Color Rendering Index(Ra):
-
80
-
Luminous Intensity:
-
Super bright
-
Luminous Flux(lm):
-
>40000LM
-
Optical Attenuation(%):
-
3
-
Power Dissipation:
-
3
-
Viewing Angle(°):
-
120
-
Color Temperature:
-
3000K, 6000K
-
Operating Temperature(℃):
-
-40 - 70
-
Storage Temperature(℃):
-
10 - 50
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
COOLEEON
-
Product name:
-
COB LED Panel Light
-
COB Size:
-
220x113mm
-
Working Voltage:
-
DC 12-14V
-
Max current:
-
15A
-
Keyword:
-
Dimmable LED light
-
Luminous efficiency:
-
>200LM/W
-
Advantage:
-
Super bright + remote control
-
Emitting Colour:
-
Warm/ cold white
-
LED number:
-
336pcs LED chips
| COB Size | 220x113mm | Colors | Warm/ cool white,blue |
| Lighting Area | 203x110mm | Color temperature | 3000K, 4000K, 6000K |
| Weight | 200g | Brightness | Around 20000LM |
| Working Votalge | DC 12-14V | RA (CRI) | 80 |
| Max Current | 15mA | Working temperature | -20 to 70℃ |
| Watt | Max 200W | COB Mode | Flip Chip |
What is LED COB?
COB (Chips on Board) is a new technology of LED packaging of LED light engine. Multi LED chips are packaged together as one light module. When it lights up, it looks like a lighting panel.
How COB LED light source works?
In COB lighting, single LED chips are placed directly on a circuit board (or substrate) which has thermal properties to disperse heat. Heat dissipation is a very important aspect of LED lighting since it can have a major impact on the life expectancy of the luminary. Therefore, COB lighting can have a higher LED chip density and achieve higher light level while maintaining or improving life expectancy.
Advantage of LED COB:
COB light is a more efficient form of LED lighting for general or automotive lighting applications because:
- light has a more uniform appearance
- better life expectancy
- achieve higher light level over a large area
- COB is more stable and reliable than standard LED package.
