Quick Details
-
Warranty:
-
1 years
-
Place of Origin:
-
Henan, China, Henan,China
-
Brand Name:
-
Henan Mine Crane
-
Model Number:
-
JK
-
Product name:
-
remote controls motor gearbox portable motor warn electric winch for s
-
Motor:
-
Chinese Famous Brand
-
Weight:
-
Different, for JK1 is 300KG
-
Rated speed:
-
22~30m/min
-
Rope capacity:
-
190~300m
-
Type:
-
Electric Winch Wire Rope
-
Color:
-
as your demand
-
Lifting direction:
-
vertically, drag and drop
-
Crane feature:
-
Electric winch
Quick Details
-
Power Source:
-
Electric
-
Application:
-
CRANES
-
Capacity:
-
other
-
Warranty:
-
1 years
-
Place of Origin:
-
Henan, China, Henan,China
-
Brand Name:
-
Henan Mine Crane
-
Model Number:
-
JK
-
Product name:
-
remote controls motor gearbox portable motor warn electric winch for s
-
Motor:
-
Chinese Famous Brand
-
Weight:
-
Different, for JK1 is 300KG
-
Rated speed:
-
22~30m/min
-
Rope capacity:
-
190~300m
-
Type:
-
Electric Winch Wire Rope
-
Color:
-
as your demand
-
Lifting direction:
-
vertically, drag and drop
-
Crane feature:
-
Electric winch

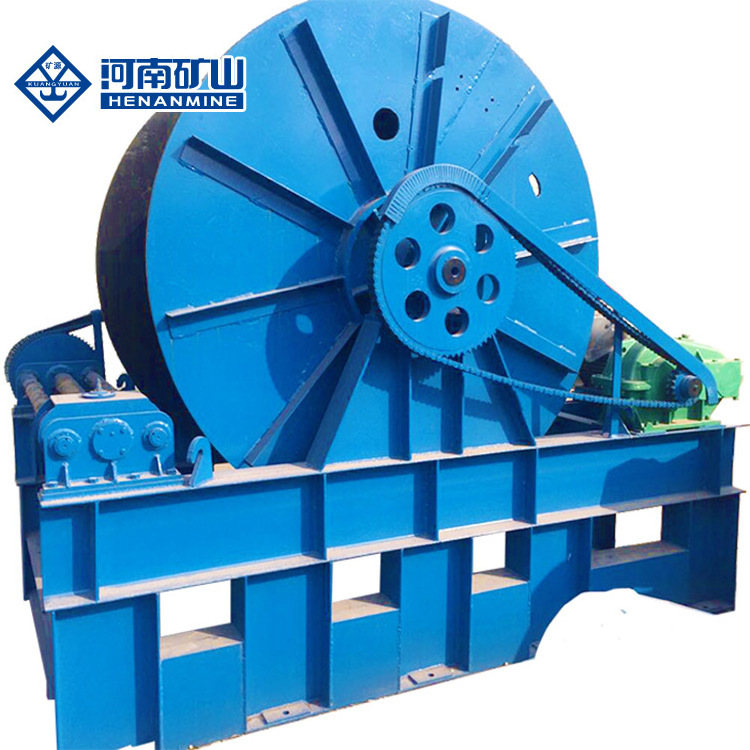

remote controls motor gearbox portable motor warn electric winch for sale
Electric winch are composed of base, motor, elastic coupling, hydraulic brake, enclosed triple-reduction gear box, reel and brackets with electrical control cabinet.
When the motor starts, the elastic coupling drives the reduction gear box, then of which the output shaft drives the revolution of reel. All the motors are the YZR-series products adopting the national standard (GB).
The work or brake of the reel relies on the hydraulic brake. The brake and motor works synchronously, therefore when the power is cut off, the reel is braked simultaneously, of which the process is fast, sensitive, safe and reliable.
| KY brand winch | WINCH TECHNIQUE PARAMETER | |||||||||||
| Rated load (KN) | Rated speed (m/min) | Rope capacity (m) | Rope Diameter (mm) | Motor type | Motor power (KN) | Overall dimension (mm) | Weight(Kg) | Type | ||||
| JK MODEL FAST SPEED ELECTRONIC CONTROL WINCH | JK0.5 | 5 | 22 | 190 | 7.7 | Y100L-4 | 3 | 620*701*417 | 200 | / | ||
| JK1 | 10 | 22 | 100 | 9.3 | Y112M-4 | 4 | 620*701*417 | 300 | / | |||
| JK1.6 | 16 | 24 | 150 | 12.5 | Y132S-4 | 5.5 | 945*996*570 | 500 | / | |||
| JK2 | 20 | 24 | 150 | 13 | Y132M-4 | 7.5 | 945*996*570 | 550 | / | |||
| KK3.2 | 32 | 25 | 290 | 15.5 | YZR180L-6 | 15 | 1325*1335*840 | 1011 | / | |||
| JK3.2B | 32 | 30 | 250 | 15.5 | YZR200L-6 | 22 | 1900*1738*985 | 1500 | / | |||
| JK5 | 50 | 30 | 300 | 21.5 | YZR225M-6 | 30 | 1900*1620*985 | 2050 | / | |||
| JK5B | 50 | 25 | 210 | 21.5 | YZR225M-8 | 22 | 2250*2500*1300 | 2264 | / | |||
| JK8 | 80 | 25 | 160 | 26 | YZR280S-8 | 45 | 1533*1985*1045 | 3000 | / | |||
| JK10 | 100 | 30 | 300 | 30 | YZR315S-8 | 55 | 2250*2500*1300 | 5100 | / | |||
Electric winch generally includes the following units:
1. motor.
2. Reduction gear box.
3. winch drum.
4. Brake.
5. electric control system.
6. optional rope guider.
Advantages of electric winch:
1.Top quality with competitive price.
2.Widely used in different places. widely used in factory, mining, shipyard or double beam cranes.
3.Easy installation and maintenance.
4.Compact structure and reasonable design.
5.Easy usage and control mode4.
6. Low noise and good working condition.
