Quick Details
-
Products Status:
-
Stock
-
CPU:
-
ARM Cortex A73 Octa-core (2.0GHz)
-
GPU:
-
ARM Mali-G72 MP3
-
Display:
-
8 inch IPS/AFFS FHD 1200*1920 industrial 1000nit Sunlight -Readable
-
Battery:
-
10000mAh
-
RAM:
-
8 GB
-
Internal Memory:
-
128GB
-
SIM Card:
-
Nano sim card*2
-
Data interface:
-
USB Type-A(Host)*1, Type-C*1
-
Main Camera:
-
13.0MP(AF) with flash led
Quick Details
-
Type:
-
Biometric Time Recording
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
B81 060
-
Products Status:
-
Stock
-
CPU:
-
ARM Cortex A73 Octa-core (2.0GHz)
-
GPU:
-
ARM Mali-G72 MP3
-
Display:
-
8 inch IPS/AFFS FHD 1200*1920 industrial 1000nit Sunlight -Readable
-
Battery:
-
10000mAh
-
RAM:
-
8 GB
-
Internal Memory:
-
128GB
-
SIM Card:
-
Nano sim card*2
-
Data interface:
-
USB Type-A(Host)*1, Type-C*1
-
Main Camera:
-
13.0MP(AF) with flash led

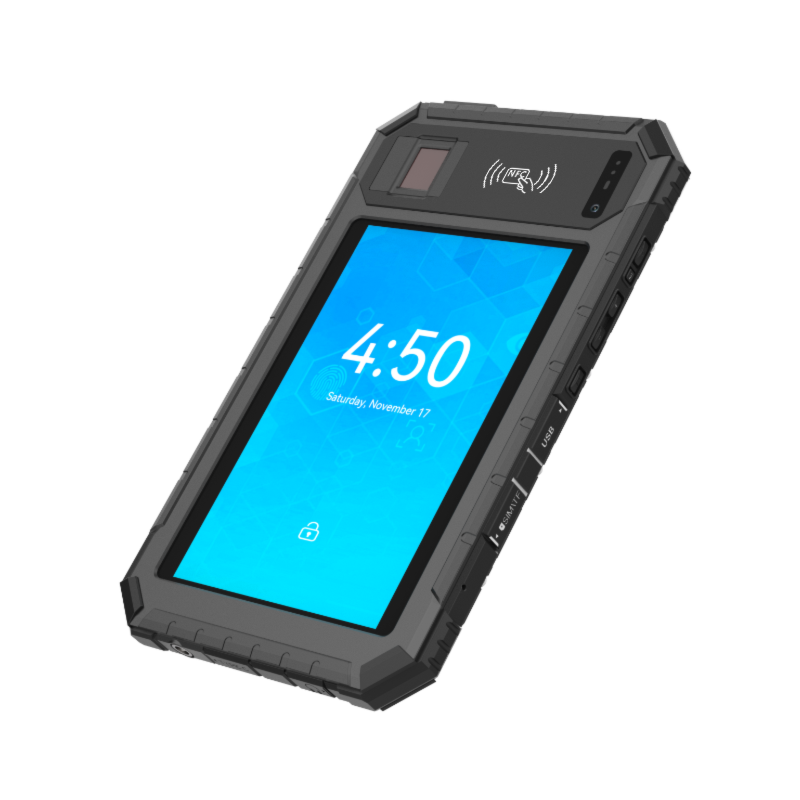

Appearance
Product packaging
Specification
|
Hardware
|
|
|
|
|
||||
|
CPU
|
|
ARM Cortex A73 octa-core(2.0GHz )
|
|
|
||||
|
GPU
|
|
Arm Mali--G72 MP3
|
|
|
||||
|
RAM
|
|
8G
|
|
|
||||
|
Internal Memory
|
|
128G
|
|
|
||||
|
External Memory
|
|
Micro SD card ( T-FLASH card), max 256GB
|
|
|
||||
|
Main Camera
|
|
13.0MP(AF) with flash led
|
|
|
||||
|
Sub Camera
|
|
5.0MP
|
|
|
||||
|
Battery
|
|
10000mAh
|
|
|
||||
|
Display
|
|
8 inch IPS/AFFS FHD 1200*1920 industrial 1000nit Sunlight -Readable
|
|
|
||||
|
Touch Panel
|
|
Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen
|
|
|
||||
|
IO/Sensor/Navigation
|
|
|
|
|
||||
|
SIM Card
|
|
Nano sim card*2
|
|
|
||||
|
TF Card
|
|
Micro SD card ( T-FLASH card) ;max 256GB
|
|
|
||||
|
Headphone
|
|
3.5mm (CTIA）
|
|
|
||||
|
DC Charging interface
|
|
DC 5521 5.0V 2A-10W
|
|
|
||||
|
Data interface
|
|
USB Type-A(Host)*1, Type-C*1
|
|
|
||||
|
Direction Sensor
|
|
Support
|
|
|
||||
|
Gravity sensor
|
|
Support
|
|
|
||||
|
Magnetic Field Sensor
|
|
Support
|
|
|
||||
|
Motion sensor
|
|
Support
|
|
|
||||
|
Rotation Vector
|
|
Support
|
|
|
||||
|
Light-sensor
|
|
Support
|
|
|
||||
|
Acceleration sensor
|
|
Support
|
|
|
||||
|
Charger
|
|
5.0V 2A-10W
|
|
|
||||
|
Navigation
|
|
GPS+Beidou+Glonass+AGPS+SBAS （EPO 2.5m）
|
|
|
||||
|
Appearance
|
|
|
|
|
||||
|
Size
|
|
267*164.6*20.6mm (L×W×H)
|
|
|
||||
|
Weight
|
|
850g
|
|
|
||||
|
Color & Material
|
|
Black (PC+ABS)
|
|
|
||||
|
Communications & Networking
|
|
|
|
|
||||
|
Phone Call
|
|
GSM /WCDMA/CDMA 1X/VoLTE
|
|
|
||||
|
2G
|
|
GSM/CDMA 1X/EDGE/GPRS/WAP
|
|
|
||||
|
2G Band
|
|
GSM（B2/3/5/8）
|
|
|
||||
|
3G
|
|
WCDMA 3.75G (HSDPA+ 42.2Mbps, HSUPA+ 11.5Mbps),EVDO
|
|
|
||||
|
3G Band
|
|
WCDMA（B1/2/5/8）,Evdo: BC0/BC1 CDMA: BC0/BC1
|
|
|
||||
|
4G
|
|
FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps downlink , 50Mbps uplink
|
|
|
||||
|
4G Band
|
|
TD-LTE（B38/39/40/41）；FDD LTE（B1/2/3/4/5/7/8/12/17/20/28）
|
|
|
||||
|
WI-FI
|
|
Dual-band WIFI (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac
|
|
|
||||
|
Bt
|
|
5.0 Low Energy (LE)
|
|
|
||||
|
Industrial & Reliability Design
|
|
|
|
|
||||
|
Shake-proof
|
|
1-19Hz/1.0mm; 19-200Hz/1.0g
|
|
|
||||
|
Dropproof /IK
|
|
MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05
|
|
|
||||
|
Waterproof
|
|
Class 7 (IEC 60529)
|
|
|
||||
|
Dustproof
|
|
Class 6 (IEC 60529)
|
|
|
||||
|
Operating
|
|
-20°C to 55°C
|
|
|
||||
|
Storage Temperature
|
|
-40°C to 80°C
|
|
|
||||
|
Reliability
|
|
MTBF>5000h; MTTR＜0.5h
|
|
|
||||
|
RH
|
|
5% to 95%
|
|
|
||||
|
Operating Altitude
|
|
Max: 4,500m（15,000 feet）
|
|
|
||||
|
OS/Software
|
|
|
|
|
||||
|
Language
|
|
English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian,
Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified， Chinese,Chinese Traditional,etc |
|
|
||||
|
OS
|
|
Android 11/13 (Continuous Update)
|
|
|
||||
|
Package/Warranty terms
|
|
|
|
|
||||
|
Warranty
|
|
24 months
|
|
|
||||
|
Package
|
|
USB cable/Charger 5V 2A/Introduction manual/Screen protector/Packing box/Aircraft box/Toolkit (optional)/SIM Card Ejector
|
|
|
||||
Function Modules
|
NFC
|
|
|
|
|
||||
|
Frequency
|
|
13.56MHz
|
|
|
||||
|
Protocol standard
|
|
ISO14443A/B, ISO15693, NFC
|
|
|
||||
|
Label standard
|
|
M1(S50, S70), CPU, NFC
|
|
|
||||
|
Read-write distance
|
|
2-5cm
|
|
|
||||
|
Data Collection
|
|
|
|
|
||||
|
Scanning engine
|
|
E20 Barcode Module
|
|
|
||||
|
2D
|
|
QR Code, Micro QR, Data Matrix, PDF417, Micro PDF417, Aztec, Maxicode, Hanxin code, Dotcode, Composite.
|
|
|
||||
|
1D
|
|
Code 128 ( ISBT 128, AIM 128, GSI 128 ), EAN-13, EAN-8, UPC-E, UPC-A, ISBN, ISSN, Code11, Interleaved 2 of 5, Code39, Code93,
Code32, Codabar, Matrix 2 of 5, Industrial 25, IATA25, MSI Plessey, GSI DataBar, Plessey, Febraban. |
|
|
||||
|
Verification and collection
|
|
|
|
|
||||
|
Thin film optical fingerprint sensor
|
|
SM-92M
Sensor Type: Optical CMOS
Live Detection: support
Image Resolution: 500DPI
Image size: 300X400 pixel (W*H)
Image grayscaleleve: 256
Compliant with ISO 19749: 2021 certification standard
FBI-PIV&FAP20 standard
|
|
|
||||
|
ISO7816 contact card reader module
|
|
|
|
|
||||
|
Support card type
|
|
Common logic encryption IC card and T=0, 1 protocol CPU card
|
|
|
||||
|
Support Agreement
|
|
Support for 1 SAM card according to GSM 11.11 (optional)
|
|
|
||||
Products Description
Factory strength
Certifications
FAQ
Q :Are you manufacturer?
A: Yes, we are manufacturers.We can provide OEM / ODM customized service according to our customers’ various application and demands.All of our products are fully patented, ID/MD design, hardware and software,mold,assembly are done by our own team.
Q: Would you provide SDK for me?
A: Yes, we offer free SDK if you order sample.In addition, we also have support engineers to assist you with software development.
Q: What is the minimum order(MOQ)?
A: We accept one unit for standard products.we can even customized with your logo if needed. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
Q: Can we get the free sample?
A: Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.
Q: Can i choose multiple function into 1 device?
A: Yes, you can choose multiple fuction into onedevice, Different functions depending on the product model,optional functions:RFID (LF/HF/UHF)1 Fingerprint/ Bar code scanner.
Q: How to order and pay?
A: We accept T/T (bank transfer), Alibaba online,Western Union 1 Trade Assurance
Q: What's Your Products Warranty?
A: We Offer 24 Months Warranty after shipment sent.
Q: Can I extend the warranty?
A: We offer a deferred warranty for up to 36 Months, and the price for the warranty extension is 10% up.
Q: How long it will take for delivery?
A: For production lead time around 3-10days depend on requirement, and shipping time by DHL/UPS/FEDEX/TNT, delivery time would around 3-5 working days. For some remote place, delivery time maybe a little bit longer.
Q:How to repair the device if any problem ?
A: We will provide technical support online to solve problem; If for the hardware problem , we couldsend the parts or components and teach customer to fit if they have technician or can also send backto us to fix it.
Q: Can you do customized and preload our software?
A:
We are professional rugged device manufacture with 11 years experiences
