Quick Details
-
Voltage:
-
220V
-
Power:
-
1300W
-
Dimension(L*W*H):
-
640*610*550
-
Weight (KG):
-
105
-
Product name:
-

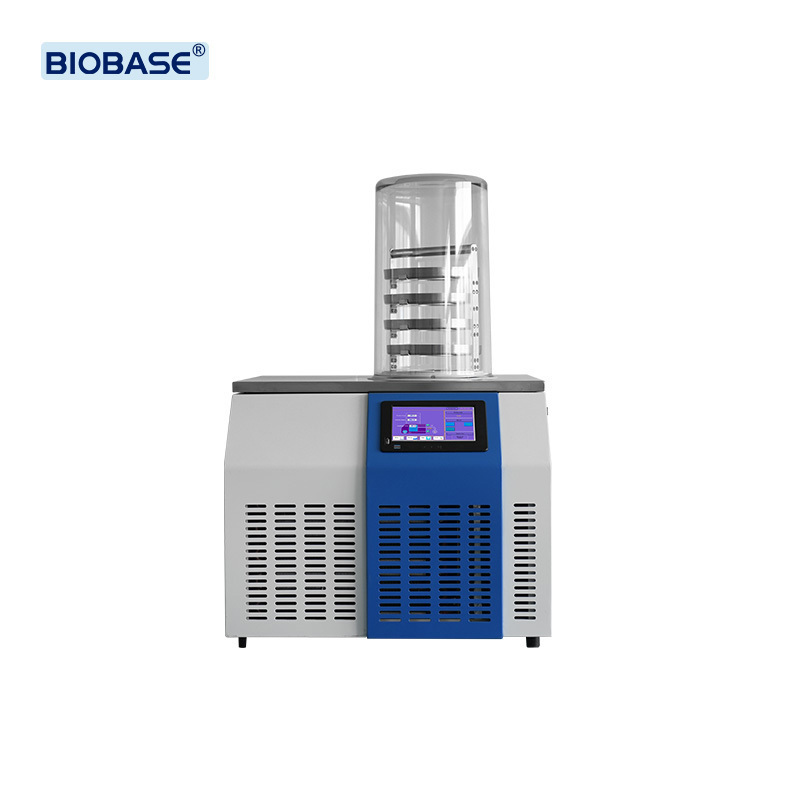

Freeze Dryer
-
Model:
-
BK-FD10S
-
Freeze Drying Area:
-
0.12㎡
-
Tray:
-
4 pcs
-
Height Between Trays:
-
50mm
-
Cold Trap Temperature:
-
≤-60℃(No load)(-80℃optional)
-
Cold Trap Capacity:
-
6L
-
Cold Trap Size (Diameter*H):
-
219*140mm
-
Vacuum Degree:
-
≤5 Pa
Quick Details
-
Type:
-
Freeze Drying Equipment
-
Place of Origin:
-
China
-
Brand Name:
-
BIOBASE
-
Voltage:
-
220V
-
Power:
-
1300W
-
Dimension(L*W*H):
-
640*610*550
-
Weight (KG):
-
105
-
Product name:
-
Freeze Dryer
-
Model:
-
BK-FD10S
-
Freeze Drying Area:
-
0.12㎡
-
Tray:
-
4 pcs
-
Height Between Trays:
-
50mm
-
Cold Trap Temperature:
-
≤-60℃(No load)(-80℃optional)
-
Cold Trap Capacity:
-
6L
-
Cold Trap Size (Diameter*H):
-
219*140mm
-
Vacuum Degree:
-
≤5 Pa
Product Description
Introduction
Vacuum freeze-drying technology is also known as sublimation drying. The principle is to freeze a sample containing water in advance, and then sublimate its moisture under vacuum. The original biological, chemical and physical properties of the
freeze-dried samples remain basically the same, and they are easy to be stored for a long time. After adding water, the samples can be restored to the state before freeze-drying, and their original biochemical characteristics can be maintained. Therefore,
freeze-drying technology is widely used in medicine, food, chemical, biological products and other fields.
freeze-dried samples remain basically the same, and they are easy to be stored for a long time. After adding water, the samples can be restored to the state before freeze-drying, and their original biochemical characteristics can be maintained. Therefore,
freeze-drying technology is widely used in medicine, food, chemical, biological products and other fields.
Feature
* Compressor, energy saving and high efficiency, low noise, long life.
* Vacuum pump, small volume, pumping speed, low noise, can achieve higher vacuum.
* Integrated design, compact structure, easy to use.
* Environmentally friendly refrigerant, ODP=0.
* With defrosting function, safe and reliable.
* The cold trap and operating table are made of stainless steel, corrosion resistant and easy to clean.
* The transparent cover of the drying chamber is made of aviation acrylic material, with high strength and no bonding.
* Large cold trap opening size, with pre-freezing function, no need for low temperature refrigerator.
* Professional gas diversion technology, high freeze-drying efficiency, and uniform ice capture.
* Vacuum pump, small volume, pumping speed, low noise, can achieve higher vacuum.
* Integrated design, compact structure, easy to use.
* Environmentally friendly refrigerant, ODP=0.
* With defrosting function, safe and reliable.
* The cold trap and operating table are made of stainless steel, corrosion resistant and easy to clean.
* The transparent cover of the drying chamber is made of aviation acrylic material, with high strength and no bonding.
* Large cold trap opening size, with pre-freezing function, no need for low temperature refrigerator.
* Professional gas diversion technology, high freeze-drying efficiency, and uniform ice capture.
Detailed Images
Specification
|
Model
|
|
BK-FD10S
|
BK-FD10P
|
BK-FD10T
|
BK-FD10PT
|
||||
|
Type
|
|
Standard chamber
|
Standard chamber with 8 port manifold
|
Stoppering chamber
|
Stoppering
chamber with 8 port manifold |
||||
|
Freeze Drying Area
|
|
0.12㎡
|
|
0.08㎡
|
|
||||
|
Tray
|
|
4 pcs
|
|
3pcs
|
|
||||
|
Height Between Trays
|
|
50mm
|
|
/
|
|
||||
|
Cold Trap Temperature
|
|
≤-60℃(No load)(-80℃optional)
|
|
|
|
||||
|
Cold Trap Capacity
|
|
6L
|
|
|
|
||||
|
Cold Trap Size (Diameter*H)
|
|
Φ219*140mm
|
|
|
|
||||
|
Vacuum Degree
|
|
≤5 Pa
|
|
|
|
||||
|
Water Capture Capacity
|
|
3-4L/24h
|
|
|
|
||||
|
Tray Size (D*H)
|
|
Φ200*20mm
|
|
|
|
||||
|
Freeze Drying Time
|
|
36h
|
|
|
|
||||
|
Loading Capacity/Shelf (Liquid)
|
|
1.2L
|
|
0.9L
|
|
||||
|
Total Loading Capacity (Liquid)
|
|
2.4L
|
|
1.6L
|
|
||||
|
Drying Chamber Size (Diameter*H)
|
|
Φ260*420mm
|
Φ260*465mm
|
|
|
||||
|
Total Qty. Of VialΦ22
|
|
/
|
/
|
147
|
147
|
||||
|
Total Qty. Of VialΦ16
|
|
/
|
/
|
297
|
297
|
||||
|
Total Qty. Of VialΦ12
|
|
/
|
/
|
492
|
492
|
||||
|
Refrigerant
|
|
-60℃: R600a, R23 -80℃: R404a、R23
|
|
|
|
||||
|
Cooling System
|
|
Standard: Air cooling Optional: Water cooling
|
|
|
|
||||
|
Power Supply
|
|
Standard: 220V 50Hz Optional: 220V 60Hz
|
|
|
|
||||
|
Power Consumption
|
|
1300W
|
|
|
|
||||
|
Standard Accessory
|
|
Vacuum pump 2L/S, Material tray*4(Material tray*3 for T/PT), Drying rack*1, Cover*1, Acrylic bucket*1(all models)
Conical-mouth flask100ml*2pcs, 200ml*2pcs, 250ml*2pcs, 500ml*2pcs, Switch valve*8 pcs (only for model BK-FD10P/PT) |
|
|
|
||||
|
Optional Function & Accessory
|
|
Equipment moving frame, vacuum pump of other specifications, vacuum regulation, oil mist filter, automatic air intake, automatic
water discharge and other customization(for all models) 600ml/1200ml Wide-mouth flask (for BK-FD10P/PT) |
|
|
|
||||
|
External Size (W*D*H), mm
|
|
640*610*550
|
|
|
|
||||
|
Package Size(W*D*H),mm
|
Main Body
|
695*680*710
|
|
|
|
||||
|
|
Accessory
|
565*680*510
|
|
|
|
||||
|
Gross Weight
|
|
105
|
110
|
115
|
116
|
||||
