Quick Details
-
Dimension(L*W*H):
-
1640*1280*2700
-
Weight (T):
-
3
-
Marketing Type:
-
New Product 2021
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
Customizable
-
Material:
-
Aluminum, SS, MS, etc
-
Safety protection:
-
Photoelectric protection
-
Function:
-
Metal Processing
-
CNC feeding system:
-
Available
-
Worktable:
-
Inclinable
-
Weight:
-
7000
-
Certification:
-
CE ISO
-
Power:
-
7.5KW
Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Durmark
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
1640*1280*2700
-
Weight (T):
-
3
-
Marketing Type:
-
New Product 2021
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
Customizable
-
Material:
-
Aluminum, SS, MS, etc
-
Safety protection:
-
Photoelectric protection
-
Function:
-
Metal Processing
-
CNC feeding system:
-
Available
-
Worktable:
-
Inclinable
-
Weight:
-
7000
-
Certification:
-
CE ISO
-
Power:
-
7.5KW

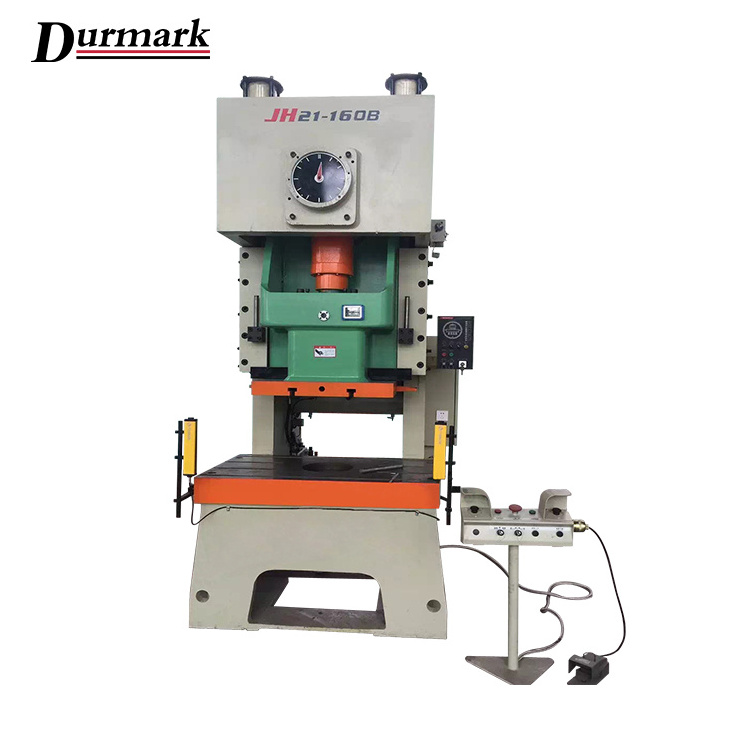

JH21 pneumatic punching press machine/tin can making machine production line
With high rigidity design in machine frame, welded of quality steel sheet and treated by tension elimination, improve stability and reliability of precision of the machine.
Keep the transmission center and machine center in uniformity, guarantee the precision of pressing.
In order to g
uarantee the machine running in stable and smooth, adopts the design of symmetrical two slid boards with balancer.
The crank, gear, connect bar are oxidized hardening and milled, having super comprehensive mechanical performance and durable function.
Reliable high sensitive clutchtbrake and international up-to-date twin electromagnetic valve, overloading protector can guarantee the precision and safe production.
|
No
|
Name
|
JH21-80T
|
|
1
|
Nominal force(KN)
|
800
|
|
2
|
Nominal force stroke(mm)
|
5
|
|
3
|
Slider stroke(mm)
|
140
|
|
4
|
Slider stroke times(time\min)
|
60
|
|
5
|
Maximum height for die loading
|
320
|
|
6
|
Adjustment range for die loading height
|
80
|
|
7
|
Distance between slider center line and the fuselage
|
300
|
|
8
|
Worktable size
|
580*1000
|
|
9
|
Work table blanking hole size(Upper hole diameter &depth*Below hole diameter)
|
D200*40*D180
|
|
10
|
Slider bottom size
|
420*560
|
|
11
|
Shank hole size
|
D50*Depth80
|
|
12
|
Distance between columns(mm)
|
640
|
|
13
|
Bolster thickness(mm)
|
120
|
|
14
|
Dimension
|
1640*1280*2700
|
|
15
|
Motor(kw)
|
7.5
|
M ain Fe a tu res
1.Steel welded body, tempering treatment, high rigidity, accuracy and stability;
2.Vertical located crankshaft, compact structure;
3.The crankshaft undergoes grinding treatment after high frequency quenching;
4.Lengthened rectangular guideway wit
h a
surface of bronze plate;
5.Pneumatic dual balance cylinder, which balances the slide block and punch weight to reduce noise
6.PLC control and imported safety dual valve;
7.Wet clutch and hydraulic overload protector.
Pa
ckag
i
n
g Details:
Plastic fil
m, wooden package, or as requirement.
Delivery
Detail: 15 days
Pre-sales Service
1. Inq
uiry and consulting support.
2. Sample testing support .
3. Recommend the most suitable machine according to cu
stomer's purpose
4. Factory visiting welcomed.
After-sales Service
1. Training
how to install the machine .
2. Training how to use the machine .
3. Warranty 1 year.
4. Engineers available to service machinery oversea .
We use the wooden cabinet, protect the machine and can be e
asily
used forklift to unloading machine.
Our Factory
How about your mach
ine quality? We are
worry about the quality.
RE: Durm
ark c
ompany is a mature brand in CHINA,through our many years research in technology,our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Brillante machines.And where there are our machines,there are good reputation and terminal user satisfaction.
Whether
the machine price can be more disc
ount?
RE:1. Durmark always provide high quality machine,as we know ,oversea market is more important and difficult than domestic market because of communication time costing
after sales,So always,our machine has enough quality standard to make sure the machine can work more than the real warranty period.In this way ,we will save a lot and think in advance for the clients
.
RE:2. we are sure to provide quality=price and price=quality ,the matched price and acceptable for the clients and durable for our machines.We welcome your negotiate with us and get a good satisfaction.
