Quick Details
-
Pressure:
-
/
-
Structure:
-
/
-
Weight:
-
Custom weight
-
Power:
-
/
-
Dimension(L*W*H):
-
Custom size
-
Product name:
-
Hydraulic fitting adapter
-
Material:
-
Carbon steel/stainless steel/brass
-
Thread Size:
-
BSP thread
-
Standard:
-
Eaton
-
Tube O.D.:
-
6mm-38mm
-
After warranty service:
-
Online support
-
Other:
-
Custom design can be provided
-
Surface treatment:
-
Trivalent zinc plated
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Online support, Video technical support, Other
Quick Details
-
Warranty:
-
1 Year
-
Brand Name:
-
HYTEC
-
Place of Origin:
-
Shandong, China
-
Pressure:
-
/
-
Structure:
-
/
-
Weight:
-
Custom weight
-
Power:
-
/
-
Dimension(L*W*H):
-
Custom size
-
Product name:
-
Hydraulic fitting adapter
-
Material:
-
Carbon steel/stainless steel/brass
-
Thread Size:
-
BSP thread
-
Standard:
-
Eaton
-
Tube O.D.:
-
6mm-38mm
-
After warranty service:
-
Online support
-
Other:
-
Custom design can be provided
-
Surface treatment:
-
Trivalent zinc plated
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Online support, Video technical support, Other
Product Parameters

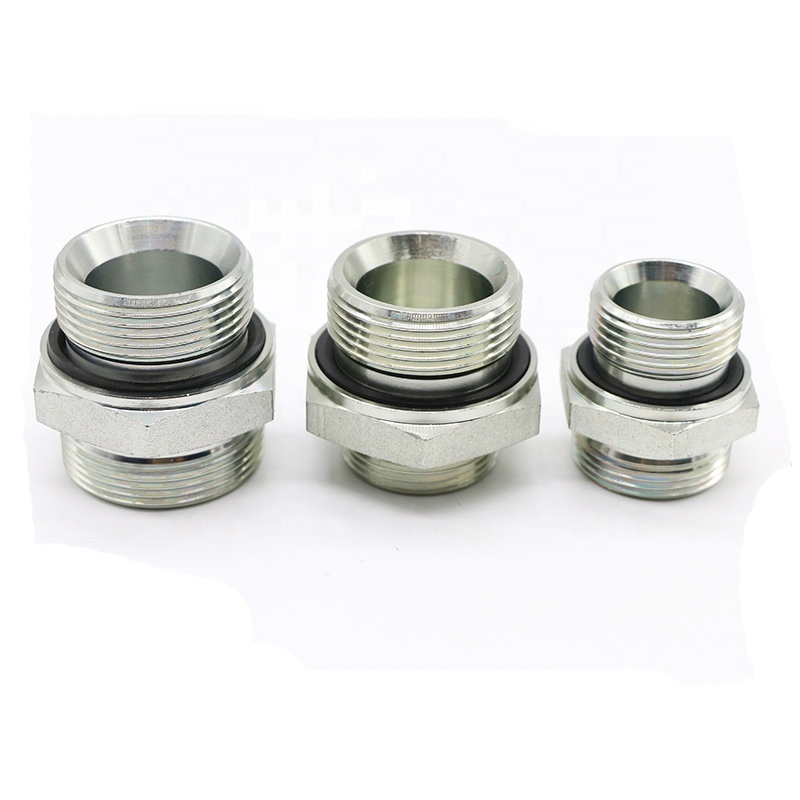

1CB-WD eaton BSP thread captive seal hydraulic straight fitting adapter
1. Type:straight fittings with BSP thread with captive seal;
2. Material: carbon steel/stainless steel/brass;
3. Interchangeable with PARKER, EATON, CAST fittings, we can match as per your model;
4. Ferrule and nuts can be choosed to match;
5. Pressure: Low pressure and high pressure can be provided;
6. Custom design can be provided.
|
Material
|
carbon steel/stainless steel/brass
|
|
Thread Size
|
BSP thread
|
|
Standard
|
Eaton
|
|
Type
|
Straight fitting
|
|
Tube O.D.
|
6mm-38mm
|
|
Condition
|
New
|
|
Brand
|
OEM
|
|
After warranty service
|
Online support
|
|
Other
|
with/without ferrule and nuts
|
|
Surface treatment
|
Trivalent zinc plated |
|
PART NO
|
Thread
|
|
O.D.(MM )
|
DIMENSION (MM)
|
|
|
|
|
Working pressure
MPa |
|||||||||
|
|
E
|
F
|
D1
|
B
|
I1
|
L1
|
S1
|
S2
|
|
|||||||||
|
1CB-12-02WD
|
M12X1.5
|
G1/8"X28
|
6
|
8
|
8.5
|
23.5
|
14
|
14
|
31.5 L series
|
|||||||||
|
1CB-12-04WD
|
M12X1.5
|
G1/4"X19
|
6
|
12
|
10
|
25
|
19
|
14
|
|
|||||||||
|
1CB-12-06WD
|
M12X1.5
|
G3/8"X19
|
6
|
12
|
11.5
|
26.5
|
22
|
14
|
|
|||||||||
|
1CB-14-02WD
|
M14X1.5
|
G1/8"X28
|
8
|
8
|
9
|
24
|
14
|
17
|
|
|||||||||
|
1CB-14-04WD
|
M14X1.5
|
G1/4"X19
|
8
|
12
|
10
|
24
|
19
|
17
|
|
|||||||||
|
1CB-14-06WD
|
M14X1.5
|
G3/8"X19
|
8
|
12
|
11
|
26
|
22
|
17
|
|
|||||||||
|
1CB-16-04WD
|
M16X1.5
|
G1/4"X19
|
10
|
12
|
11
|
24.5
|
19
|
19
|
|
|||||||||
|
1CB-16-06WD
|
M16X1.5
|
G3/8"X19
|
10
|
12
|
12.5
|
26
|
22
|
19
|
|
|||||||||
|
1CB-16-08WD
|
M16X1.5
|
G1/2"X14
|
10
|
14
|
13
|
28
|
27
|
19
|
|
|||||||||
|
1CB-18-04WD
|
M18X1.5
|
G1/4"X19
|
12
|
12
|
12
|
27
|
19
|
22
|
|
|||||||||
|
1CB-18-06WD
|
M18X1.5
|
G3/8"X19
|
12
|
12
|
12.5
|
26
|
22
|
22
|
|
|||||||||
|
1CB-18-08WD
|
M18X1.5
|
G1/2"X14
|
12
|
14
|
14
|
28
|
27
|
22
|
|
|||||||||
|
1CB-22-04WD
|
M22X1.5
|
G1/4"X19
|
15
|
12
|
13
|
28
|
24
|
27
|
|
|||||||||
|
1CB-22-06WD
|
M22X1.5
|
G3/8"X19
|
15
|
12
|
13.5
|
28
|
24
|
27
|
|
|||||||||
|
1CB-22-08WD
|
M22X1.5
|
G1/2"X14
|
15
|
14
|
14
|
29
|
27
|
27
|
|
|||||||||
|
1CB-22-12WD
|
M22X1.5
|
G3/4"X14
|
15
|
16
|
15
|
29
|
32
|
27
|
|
|||||||||
|
1CB-26-08WD
|
M26X1.5
|
G1/2"X14
|
18
|
14
|
14.5
|
31
|
27
|
32
|
|
|||||||||
|
1CB-26-12WD
|
M26X1.5
|
G3/4"X14
|
18
|
16
|
14.5
|
31
|
32
|
32
|
|
|||||||||
|
1CB-30-12WD
|
M30X2
|
G3/4"X14
|
22
|
16
|
16.5
|
33
|
32
|
36
|
16 L series
|
|||||||||
|
1CB-36-16WD
|
M36X2
|
G1"X11
|
28
|
18
|
17.5
|
34
|
41
|
41
|
|
|||||||||
|
1CB-45-20WD
|
M45X2
|
G1.1/4"X11
|
35
|
20
|
17.5
|
39
|
50
|
50
|
|
|||||||||
|
1CB-52-24WD
|
M52X2
|
G1.1/2"X11
|
42
|
22
|
19
|
42
|
55
|
60
|
|
|||||||||
|
1DB-14-04WD
|
M14X1.5
|
G1/4"X19
|
6
|
12
|
15
|
|
19
|
17
|
63 S series
|
|||||||||
|
1DB-16-04WD
|
M16X1.5
|
G1/4"X19
|
8
|
12
|
15
|
30
|
19
|
19
|
|
|||||||||
|
1DB-16-06WD
|
M16X1.5
|
G3/8"X19
|
8
|
12
|
15.5
|
30
|
22
|
19
|
|
|||||||||
|
1DB-18-04WD
|
M18X1.5
|
G1/4"X19
|
10
|
12
|
14.5
|
31
|
19
|
22
|
|
|||||||||
|
1DB-18-06WD
|
M18X1.5
|
G3/8"X19
|
10
|
12
|
14.5
|
31
|
22
|
22
|
|
|||||||||
|
1DB-18-08WD
|
M18X1.5
|
G1/2"X14
|
10
|
14
|
17.5
|
34
|
27
|
22
|
|
|||||||||
|
1DB-20-04WD
|
M20X1.5
|
G1/4"X19
|
12
|
12
|
16.5
|
33
|
22
|
24
|
|
|||||||||
|
1DB-20-06WD
|
M20X1.5
|
G3/8"X19
|
12
|
12
|
15
|
33
|
22
|
24
|
|
|||||||||
|
1DB-20-08WD
|
M20X1.5
|
G1/2"X14
|
12
|
14
|
17.5
|
34
|
27
|
24
|
|
|||||||||
|
1DB-22-08WD
|
M22X1.5
|
G1/2"X14
|
14
|
14
|
19
|
37
|
27
|
27
|
|
|||||||||
|
1DB-24-06WD
|
M24X1.5
|
G3/8"X19
|
16
|
12
|
18
|
36.5
|
27
|
30
|
40 S series
|
|||||||||
|
1DB-24-08WD
|
M24X1.5
|
G1/2"X14
|
16
|
14
|
18.5
|
37
|
27
|
30
|
|
|||||||||
|
1DB-24-12WD
|
M24X1.5
|
G3/4"X14
|
16
|
16
|
20.5
|
39
|
32
|
30
|
|
|||||||||
|
1DB-30-12WD
|
M30X2
|
G3/4"X14
|
20
|
16
|
20.5
|
42
|
32
|
36
|
|
|||||||||
|
1DB-36-08WD
|
M36X2
|
G1/2"X14
|
25
|
14
|
23
|
47
|
41
|
46
|
|
|||||||||
|
1DB-36-12WD
|
M36X2
|
G3/4"X14
|
25
|
16
|
23
|
47
|
41
|
46
|
|
|||||||||
|
1DB-36-16WD
|
M36X2
|
G1"X11
|
25
|
18
|
23
|
47
|
41
|
46
|
|
|||||||||
|
1DB-42-20WD
|
M42X2
|
G1.1/4"X11
|
30
|
20
|
23.5
|
50
|
50
|
50
|
|
|||||||||
|
1DB-52-24WD
|
M52X2
|
G1.1/2"X11
|
38
|
22
|
26
|
57
|
55
|
60
|
31.5 S series
|
|||||||||
|
Note：In case if you are interested to order the adapter incomplete set with cutting ring and nut， it is necessary to insert
suffix“RN"after our part No.for example 1DB-20-08WD/RN |
|
|
|
|
|
|
|
|
|
|||||||||
