Quick Details
-
Application:
-
Garment
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Bangzheng Machinery
-
Dimension(L*W*H):
-
360cm*230cm*160cm
-
Weight:
-
4500 KG
-
Features:
-
Automatic Feeding System
-
X axis servo motor:
-
For Japanese Panasonic servo drive motor
-
Y axis servo motor:
-
For Japanese Panasonic servo drive motor
-
T axis servo motor:
-
For Japanese Panasonic servo drive motor
-
Z axis servo motor (vibration axis):
-
For Japanese Panasonic servo drive motor
-
Control System:
-
Independent research and development
-
sensor:
-
Import Omron
-
guide:
-
Taiwan PMI
-
drag chain cable:
-
German igus
-
Vacuum adsorption turbo pump:
-
Golden Bridge
-
Head hydraulic buffer:
-
For Japan imported SMC
Quick Details
-
Production Capacity:
-
5000 Sets/year
-
Voltage:
-
220-380V
-
Marketing Type:
-
New Product 2023
-
Application:
-
Garment
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Bangzheng Machinery
-
Dimension(L*W*H):
-
360cm*230cm*160cm
-
Weight:
-
4500 KG
-
Features:
-
Automatic Feeding System
-
X axis servo motor:
-
For Japanese Panasonic servo drive motor
-
Y axis servo motor:
-
For Japanese Panasonic servo drive motor
-
T axis servo motor:
-
For Japanese Panasonic servo drive motor
-
Z axis servo motor (vibration axis):
-
For Japanese Panasonic servo drive motor
-
Control System:
-
Independent research and development
-
sensor:
-
Import Omron
-
guide:
-
Taiwan PMI
-
drag chain cable:
-
German igus
-
Vacuum adsorption turbo pump:
-
Golden Bridge
-
Head hydraulic buffer:
-
For Japan imported SMC
Product Description
|
clipping height
|
|
1-11 cm
|
|
|
|||
|
Effective cropping width
|
|
1700mm
|
|
|
|||
|
Effective cutting length
|
|
Automatic feeding unlimited length
|
|
|
|||
|
Automatic spreading length
|
|
16.8m spreading table (total working length 24m)
|
|
|
|||
|
Way of transporting the knife
|
|
Reciprocating vibrating knife transport
|
|
|
|||
|
cutting speed
|
|
0-60m/min
|
|
|
|||
|
Cutting knife grinding
|
|
Double wheel counter-rotating grinding
|
|
|
|||
|
Adsorption method
|
|
Frequency conversion vacuum constant pressure control mode
|
|
|
|||
|
safety devices
|
|
automatic induction
|
|
|
|||
|
using electric
|
|
Three-phase AC380V/50Hz/25Kw
|
|
|
|||
|
operation panel
|
|
touch control panel
|
|
|
|||
|
clipping parameters
|
|
Input LAN, USB
|
|
|
|||
|
Device weight
|
|
About 4500Kg
|
|
|
|||
|
Other functions
|
|
Mobile cutting device, automatic feeding device, pattern scanning, adsorption bed
|
|
|
|||
|
operating system
|
|
Supports the overall rotation of the nesting chart, knife-edge conversion, single-piece recutting, one-key deletion of overlapping
areas (supports removal of repeated lines), automatic multi-layer cutting bed for residual cloth cutting, automatic cloth spreading machine, and air floatation table |
|
|
|||
Product Description:
1. Computer-controlled automatic cutting, no need for printing paper, no need for a large number of cutting workers, to achieve mass production;
2. The pieces cut out by the equipment have high precision, and the lathe workers can sew directly without trimming the pieces, which effectively improves the sewing efficiency of the lathe workers;
3. The cutting bed control software supports multi-source data formats: it can directly receive common data clothing design typesetting software;
4. The unique algorithm and motion control technology realize the seamless connection between straight lines and arcs, and the cutting precision is high;
5. The equipment adopts automatic sharpening technology, and the sharpening time can be designed according to the characteristics of the fabric, effectively prolonging the service life of the cutting knife;
6. There is no need to print and store paper plates, the reuse rate is high, and the plate making management is convenient;
7. The replacement of consumables is convenient and the replacement cost is low;
8. High degree of automation and simple operation.
Product advantages

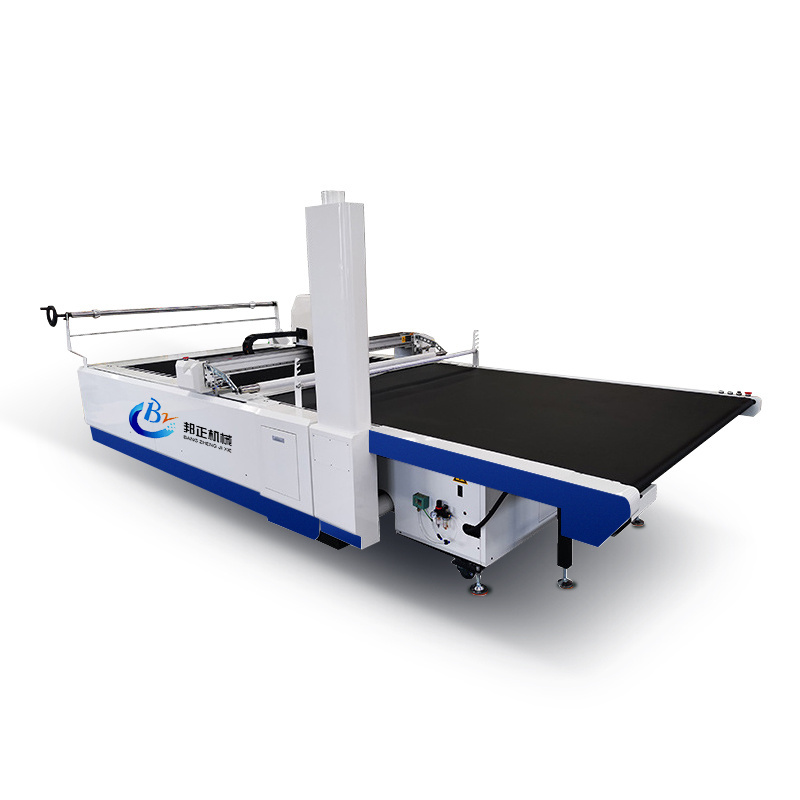

Introduction to multi-layer cutting machine
Product parameters
product display
Scenario shows
Enterprise honor
Packing and shipping
FAQ
Q: Are you a factory or a trading company?
A: We are a factory, we have the right to import and export, many customers come to visit our factory every year, you are welcome to come to our factory at any time
Q: How can I tell if this cutting machine is suitable for me?
A: First, you should share something about the material to be processed (length*width*height, breathable or not) and other specific requirements, such as additional drawing function, punching function, etc. We will make the first round of judgment based on our experience. If necessary, we'll make a demo clip for you, then we'll share the video with you and discuss possible solutions.
Q: Is it easy to operate this machine for the first time?
A: We will send you English manual and guide video, it can teach you how to operate the machine. If you still can't learn how to use it, we can talk by phone, email or other contact methods.
Q: Is there any after sales service?
A: We have integrated after sales service. Besides our own experienced engineers, we also offer local after sales service through the help of our agents. All this will make you convenient.
