Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Dimension(Long * Breadth * High):
-
7430*2350*2970 mm
-
Warranty:
-
2000 working hours or 12 month, 2000 working hours or 12 month
-
Machine Weight:
-
7400 kg
-
Bucket capacity:
-
1 cubic meter, 1m3
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Backhoe Loader
-
Form:
-
center positioned
-
Engine:
-
Weichai
-
Front & Rear Axle & Transmission:
-
CARRARO
-
Color:
-
Yellow
-
Model:
-
WZ30-25
-
Operating weight:
-
7400kg
Quick Details
-
Engine Brand:
-
WEICHAI
-
Power:
-
70 KW, 74 KW
-
Brand Name:
-
KATTIER
-
Place of Origin:
-
Jiangsu, China
-
Dimension(Long * Breadth * High):
-
7430*2350*2970 mm
-
Warranty:
-
2000 working hours or 12 month, 2000 working hours or 12 month
-
Machine Weight:
-
7400 kg
-
Bucket capacity:
-
1 cubic meter, 1m3
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Backhoe Loader
-
Form:
-
center positioned
-
Engine:
-
Weichai
-
Front & Rear Axle & Transmission:
-
CARRARO
-
Color:
-
Yellow
-
Model:
-
WZ30-25
-
Operating weight:
-
7400kg

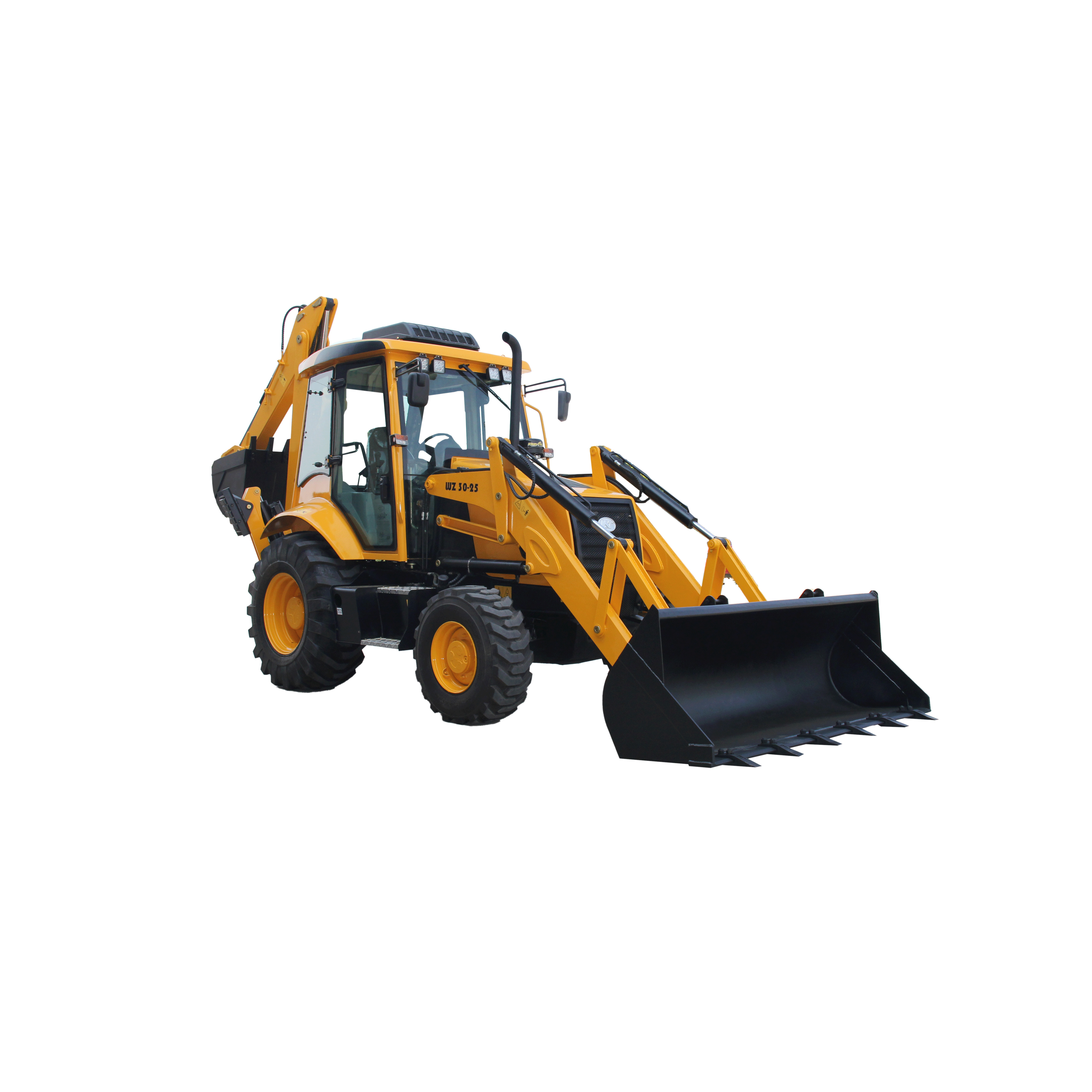

Weichai four-cylinder supercharged engine is featured in high fuel efficiency, low emission and large power margin. It is equipped with the driving & steering front axle, maintenance-free wet-type unilateral braking rear axle and four-speed synchronous shift gearbox designed and manufactured specially by CARRARO; its forward and backward directions are switched by electric hydraulic control. The loader working device is an eight-bar automatic leveling mechanism. The bucket is leveled automatically while hoisting, in order to avoid scattering and ensure stable working. The excavator working device can rotate 180 degrees along the gyration center at the back of the frame. The A-shaped stabilizer and the center-positioned excavating device are strong in working stability. Its chassis is an integral type special chassis featured in strong rigidity, impact resistance and compact size. Its cab has a board view and is configured with rail-mounted upturning glass window.
In order to be able to put backhoe loader into the container, The bucket, shovel plate, tire and air conditioner will be removed from the backhoe loader. Then all parts will be loaded into container and tied up in a certain order according to the packing plan.
The minimum order quantity is one, However make your order in even number form (like 2,4,8 etc.) could be freight saving, as one container can carry up to two Backhoe Loader.
|
Step |
Task |
Duration |
|
1 |
Payment received from bank account |
3-5 days |
|
2 |
Assembling the ordered machinery |
30 days |
|
3 |
Quality inspection and testing |
1-3 days |
|
4 |
Local transportation and custom clearance |
3-5 days |
Payment terms: 30% T/T as deposit, 70% T/T before shipment.
1. More than 15 years of manufacturing experience and technology accumulation ensure the quality.
2. A variety of optional configurations, to achieve all kinds of work requirement.
3. Free customization for Model sticker, LOGO sticker and on-board documents.
4. Highly competitive price and cost performance, Always open for negotiation.
5. Price remain stable through out the year, never greedy on profit.
6. Safe and Fast delivery with High cube container.
7. Two years warranty for Tractor and its core components.
8. Free spare parts provided within the warranty period.
9. Excellent after sale service such as video technical support, online support, field maintenance and repair service.
Q1. Manufacturer or Trading Company?
A1. We are an company specialise in manufacturing Heavy wheeled tractor ( KAT series 100-440hp) and Backhoe loader (wz30-25,KAT920),for more than 15 years.
Q2. MOQ?
A2. one unit.
Q3. Delivery time?
A3. Approximately one month shipping time.
Q4. Custimizable Section?
A4. Free custimisation for Logo,Model sticker and Nameplate.
Q5. Payment method?
A5. L/C or T/T.
