Quick Details
-
Voltage:
-
380V,50HZ,3 phase
-
Place of Origin:
-
shandong,china
-
Brand Name:
-
longxiang
-
Model Number:
-
LX4
-
Warranty:
-
one years
Quick Details
-
Power:
-
16kw
-
External Size:
-
7000*5200*3400mm(L*W*H)
-
Internal Size:
-
6900*3900*2650mm(L*W*H)
-
Voltage:
-
380V,50HZ,3 phase
-
Place of Origin:
-
shandong,china
-
Brand Name:
-
longxiang
-
Model Number:
-
LX4
-
Warranty:
-
one years
Products Description
|
|
|

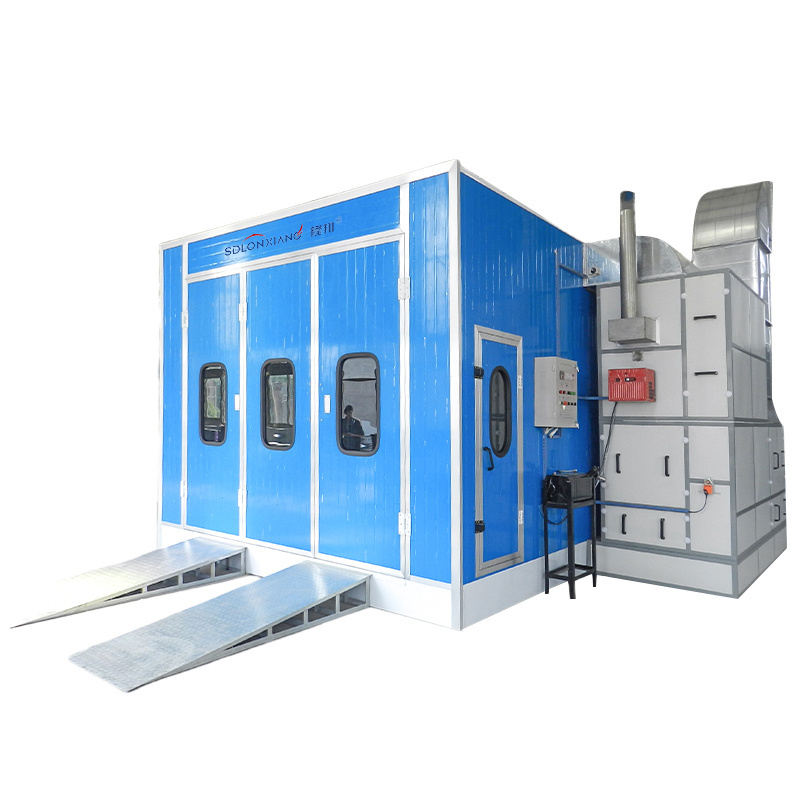

LX4
|
|
|
|||
|
Outside size
|
|
7000×5200×3400mm(L×W×H)
|
|
|
|||
|
Inside size
|
|
6900×3900×2650mm(L×W×H)
|
|
|
|||
|
Entrance door
|
|
3 folds, 3000x2600 mm(W×H), bending steel door
|
|
|
|||
|
Emergency door
|
|
650*2000mm(W*H), equipped with handle lock
|
|
|
|||
|
Cabin system
|
Wall panel
|
--Sandwich style EPS 50mm, 0.5mm thick steel, anti-flame and heat- insulation.
--High quality galvanized steel roof panel.
|
|
|
|||
|
|
|
--Galvanized steel assemble, 280mm high, quadrate steel support,2 rows of grills with 30*5mm, 3 rows of diamond plates.
--2 ramps,external setting, 900*2000mm(W*L)/pc |
|
|
|||
|
|
Inlet fan
|
2*4kw double-intake centrifugal fans, air capacity:12500m³/h for each set
|
|
|
|||
|
|
Outlet fan
|
1*7.5kw double-intake centrifugal fan, air capacity: 18000m³/h for each set
|
|
|
|||
|
|
|
--Intake air from side upper, adopt powder quadrate steel frame, strong and beautiful.
--Cabinet for the fan*1unit, air duct * 1 units. --Elbow: 90°*1 unit. |
|
|
|||
|
|
Burner
|
Italy RIELLO G20 oil burner, heating capacity: 180000Kcal/h, with pneumatic damper from spraying to baking cycle
|
|
|
|||
|
|
Heat Exchanger
|
1.5mm thickness SUS304 stainless steel
|
|
|
|||
|
|
Cabinet
|
Rock-wool insulation*1 unit, heat insulation and preservation, inflaming retarding
|
|
|
|||
|
|
Ceiling lights
|
8units*4pieces*16w LED Lighting
|
|
|
|||
|
|
Side lights
|
8*2pcs*16w LED lighting
|
|
|
|||
|
Filtering system
|
Primary filter
|
Grade G2 plate type , filtering rate＞83%
|
|
|
|||
|
|
Ceiling filter
|
EU5 grade high efficient filter, filtering rate＞98%
|
|
|
|||
|
|
Floor filter
|
Multi-layer fiberglass filter, filtering rate＞70%
|
|
|
|||
|
Control system
|
Control panel
|
Intelligent control system
|
|
|
|||
|
|
Function
|
Lighting, temperature time setting, painting, constant temperature painting, baking, emergency stop, failure indication, etc
|
|
|
|||
|
Total power
|
16.5 KW
|
|
|
|
|||
|
Voltage/frequency
|
380V, 50HZ, 3phase
|
|
|
|
|||
