Quick Details
-
Brand Name:
-
SHD
-
Dimension(L*W*H):
-
9000*2628*3400mm
-
Weight:
-
9770
-
Material:
-
Alloy steel Q345R
-
Name:
-

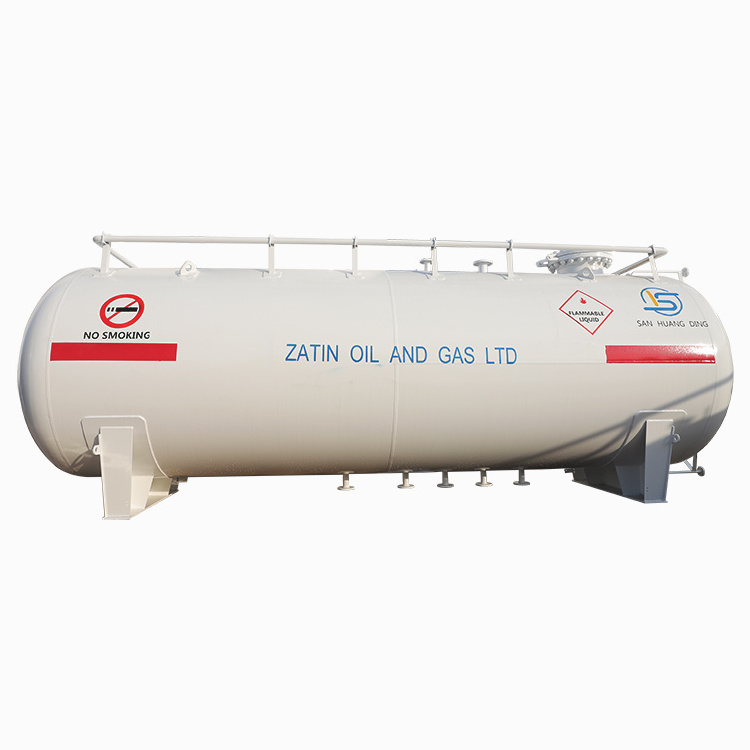

lpg storage tank
-
Application:
-
filling car/cylinder/home use
-
Color:
-
White / customzied
-
Type:
-
Vertical or Horizontal
-
Designed pressure:
-
1.77 MPa
-
Working Pressure:
-
1.6 Mpa
-
Volume:
-
5000L to 200000L
-
standard:
-
GB150 ASME
-
Keywords:
-
50000 Litres LPG cooking gas storage tank with whole equipment
Quick Details
-
Capacity:
-
15ton
-
Max Working Pressure(MPa):
-
1.6 MPa
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SHD
-
Dimension(L*W*H):
-
9000*2628*3400mm
-
Weight:
-
9770
-
Material:
-
Alloy steel Q345R
-
Name:
-
lpg storage tank
-
Application:
-
filling car/cylinder/home use
-
Color:
-
White / customzied
-
Type:
-
Vertical or Horizontal
-
Designed pressure:
-
1.77 MPa
-
Working Pressure:
-
1.6 Mpa
-
Volume:
-
5000L to 200000L
-
standard:
-
GB150 ASME
-
Keywords:
-
50000 Litres LPG cooking gas storage tank with whole equipment
Product Parameter
|
Model(m3)
|
design pressure (mpa)
|
Cylinder size (dia*length*thickness)mm
|
dimensions(dia/height/length)mm
|
Material
|
Total net weight(kg)
|
|
5
|
1.77mpa
|
Dn1200*4000*10
|
1800*1800*6000
|
Q345r
|
3200kg
|
|
10
|
1.77mpa
|
Dn1200*4400*10
|
2000*2000*6000
|
Q345r
|
3500kg
|
|
15
|
1.77mpa
|
Dn1600*5250*12
|
2300*2000*7000
|
Q345r
|
3800kg
|
|
20
|
1.77mpa
|
Dn1800*5800*12
|
2500*2000*1200
|
Q345r
|
5200kg
|
|
25
|
1.77mpa
|
Dn2200*7100*12
|
2600*2200*1200
|
Q345r
|
7000kg
|
|
30
|
1.77mpa
|
Dn2000*5500*12
|
2450*2000*7500
|
Q345r
|
7500kg
|
