Quick Details
-
Brand Name:
-
EPever
-
Model Number:
-
LS1024EPD
-
Work Time (h):
-
24h
-
Max PV Power:
-
other
-
Max PV Voltage:
-
50V
-
Certificate:
-
CE ROHS
-
Warranty:
-
2years
-
Battery input voltage range:
-
8~32V
-
Battery type:
-
Sealed battery
-
Enclosure:
-
IP67
-
Net weight:
-
410g
-
Dimensions(LxWxH)mm:
-
108.5*75*25.6
-
Operating temperature range:
-
- 35℃~+50℃
-
Equalization voltage:
-
14.8V(12V);29.6V(24V)
-
Boost voltage:
-
14.4V(12V);28.8V(24V)
-
Float voltage:
-
13.7V(12V);27.4V(24V)
Quick Details
-
Type:
-
PWM
-
Application:
-
Charger Controller, Water Heater Controller, Solar Working Station, Lighting Controller, Voltage Controller, Solar System Controller
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
EPever
-
Model Number:
-
LS1024EPD
-
Work Time (h):
-
24h
-
Max PV Power:
-
other
-
Max PV Voltage:
-
50V
-
Certificate:
-
CE ROHS
-
Warranty:
-
2years
-
Battery input voltage range:
-
8~32V
-
Battery type:
-
Sealed battery
-
Enclosure:
-
IP67
-
Net weight:
-
410g
-
Dimensions(LxWxH)mm:
-
108.5*75*25.6
-
Operating temperature range:
-
- 35℃~+50℃
-
Equalization voltage:
-
14.8V(12V);29.6V(24V)
-
Boost voltage:
-
14.4V(12V);28.8V(24V)
-
Float voltage:
-
13.7V(12V);27.4V(24V)

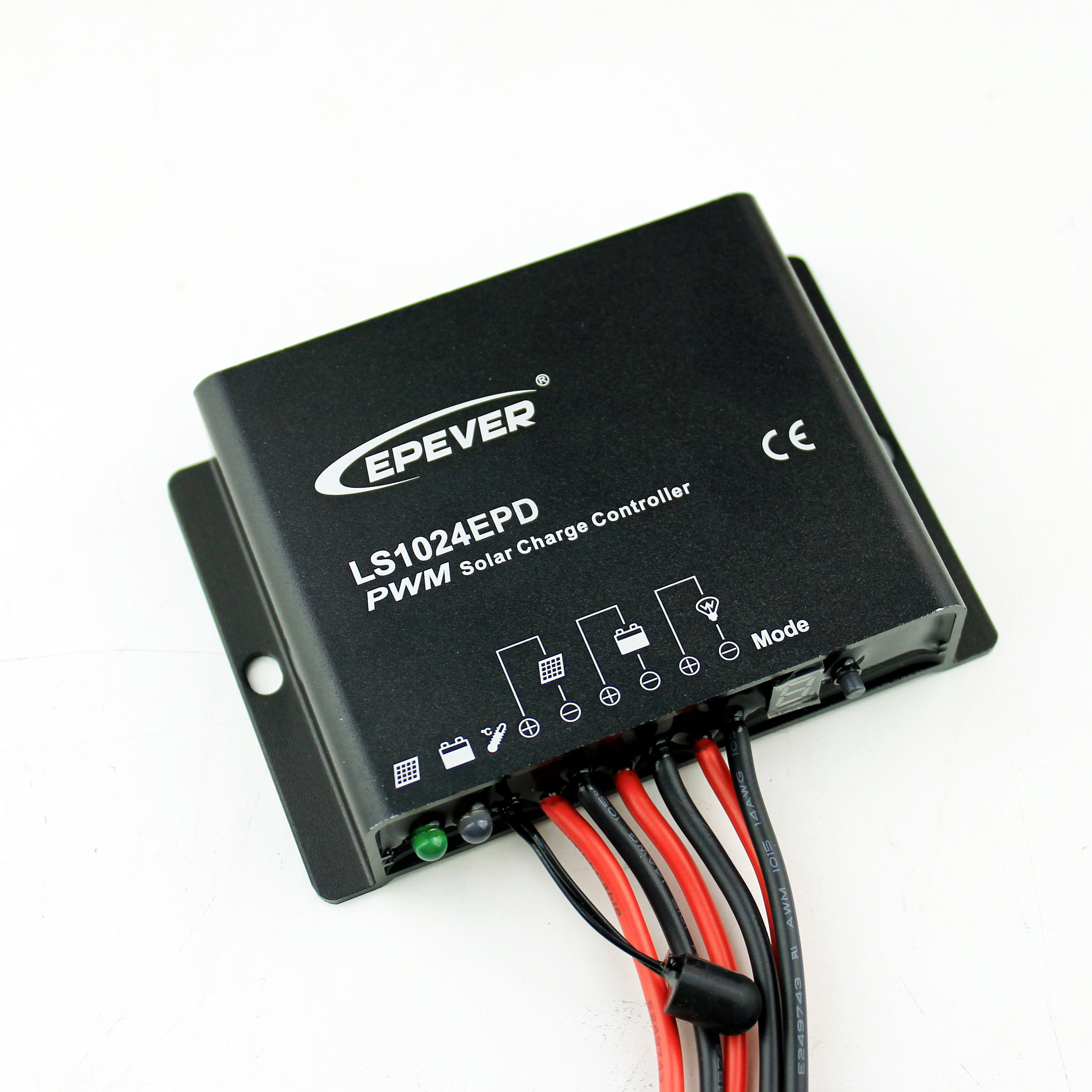

Cost Efficient PWM IP67 waterproof digital tube 10a 20a
Solar lighting Charge Controller for SEALED battery
Products Description
LS-EPD
series adopts a
digital tube menu control
design. The
waterproof
design is mainly considered to be used in
harsh environments
. It is widely applied to
folding panels, outdoor camping, field automatic detection equipment, traffic lights, solar
street lights, courtyard light systems , etc.
street lights, courtyard light systems , etc.
Product Features
Features
* Series
PWM
charging mode
*
Multiple load control
modes
* Extensive electronic protection
* Battery type: sealed battery
* LED indicators for situation indication and programming
* Fully encapsulated PCB, IP67 protection
* Adopt high-quality international brand components
* Extensive electronic protection
* Battery type: sealed battery
* LED indicators for situation indication and programming
* Fully encapsulated PCB, IP67 protection
* Adopt high-quality international brand components
Technical Specifications
|
Model
|
LS1024EPD
|
LS2024EPD
|
|
|
Nominal system voltage
|
12/24VDC Auto
|
|
|
|
Battery type
|
Sealed battery
|
|
|
|
Battery input voltage range
|
8～32V
|
|
|
|
Rated charge current
|
10A
|
20A
|
|
|
Rated discharge current
|
10A
|
20A
|
|
|
Max. PV open circuit voltage
|
50V
|
|
|
|
Equalization voltage
|
14.8V(12V);29.6V(24V)
|
|
|
|
Boost voltage
|
14.4V(12V);28.8V(24V)
|
|
|
|
Float voltage
|
13.7V(12V);27.4V(24V)
|
|
|
|
Low voltage reconnect voltage
|
12.6V(12V);25.2V(24V)
|
|
|
|
Low voltage disconnect voltage
|
11.2V(12V);22.4V(24V)
|
|
|
|
Self-consumption
|
12V:≤4.58mA；24V:≤6.01mA
|
|
|
|
Temperature compensation
|
-5mA/℃/2V(25℃）
|
|
|
|
Enclosure
|
IP67
|
|
|
|
Grounding
|
Common Positive
|
|
|
|
Operating temperature range
|
-35℃～+50℃
|
|
|
|
Dimensions(LxWxH)(mm)
|
108.5×75×25.6
|
|
|
|
Net Weight
|
410g
|
435g
|
|
Certifications
Solar System Connection
