Quick Details
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
TONGDA
-
Model Number:
-
LT-770
-
Warranty:
-
1 Years
-
Product name:
-
pneumatic tire changer
-
Rim diameter:
-
12"-20" (305mm-510mm)
-
Rim width:
-
12" (305mm)
-
Noise:
-
<70dB
-
Air supply:
-
6-10 bar
-
Wheel diameter:
-
29" (737mm)
-
Cylinder diameter:
-
7" (178mm)
-
Piston journey:
-
6" (152mm)
-
Cylinder volume:
-
5.6Gallon (21Litre)
-
Cycle time:
-
9 seconds
Quick Details
-
Motor Power:
-
--
-
Operating Pressure:
-
6-10 Bar
-
Power Supply:
-
110V/220V/380V
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
TONGDA
-
Model Number:
-
LT-770
-
Warranty:
-
1 Years
-
Product name:
-
pneumatic tire changer
-
Rim diameter:
-
12"-20" (305mm-510mm)
-
Rim width:
-
12" (305mm)
-
Noise:
-
<70dB
-
Air supply:
-
6-10 bar
-
Wheel diameter:
-
29" (737mm)
-
Cylinder diameter:
-
7" (178mm)
-
Piston journey:
-
6" (152mm)
-
Cylinder volume:
-
5.6Gallon (21Litre)
-
Cycle time:
-
9 seconds

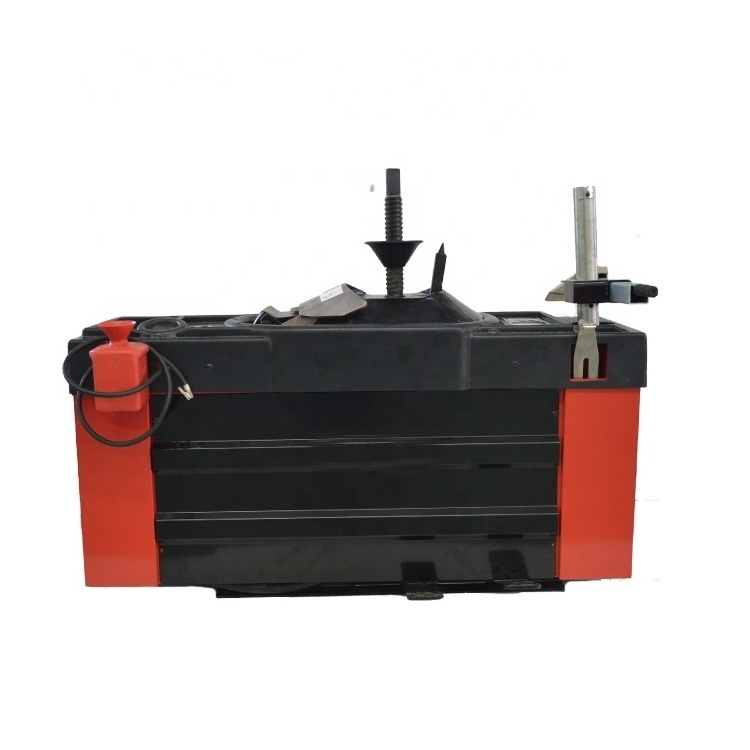

2023 Pneumatic Tire Changers Tongda LT-770 tire changing machine pneumatic tire changer for sale
TECHNICAL DATA
| Rim diameter | 12"-20" (305mm-510mm) |
| Rim width | 12" (305mm) |
| Noise | <70dB |
| Air supply | 6-10 bar |
| Wheel diameter | 29" (737mm) |
| Cylinder diameter | 7" (178mm) |
| Piston journey | 6" (152mm) |
| Cylinder volume | 5.6Gallon (21Litre) |
| Cycle time | 9 seconds |
| N.w./G.w. | 475Lb/583Lb (216Kg/267Kg) |
CHARACTER
LT-770 is super fast and super powerful.
Some of the key features are Fast one-position operation that takes half the steps, Tool returns to the same position on the wheel after each cycle, Tall positioning pin eliminates adapters for front wheel drive, high offset wheels , and Two-position detent mechanism limits travel of lower bead loosening shoe on narrow rims.
1.For the goods exported, we do not offer Oversea Sale Service, but we would like to offer our customer free spare parts as much as 1% of their total order value for normal maintenance.
2.1 year warranty, The main parts are damaged, not caused by human we will provide free spare for you
3.Our factory offer after sale service to client
4.24 Hours Technical support by email and mobile
5.Operation and technical knowledge are supplied to customers' workers both in domestic and abroad.
6.Offer the latest instruction manual and actual operating video.
