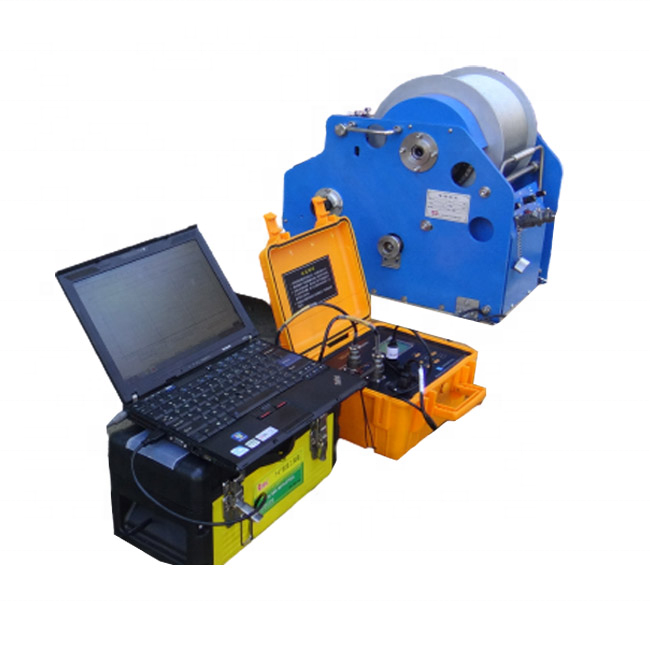

200m Well Logging Equipment Geophysical Borehole Logging Equipment For Gamma Ray

200m Well Logging Equipment Geophysical Borehole Logging Equipment For Gamma Ray

Features

Geophysical Logging Equipment For Gamma Ray, Resistivity and SP well logging tool

1.Extension notebook computer.

2.Logging can be made upward and downward

3.Digital and analogue signals can be received.

4.Auto-sampling according to the depth interval.

Specifications

Geophysical Logging Equipment For Gamma Ray, Resistivity and SP well logging tool

1.12-bit A/D converter, enlargement factor k= 0.5~128

2.Counting channel frequency:  f ≤500KHz.

3.Digital signals transfer frequency 9600bit/s

4.Analogue signals input:  ≤±10V

5.Supply current: 2mA to 500mA (optional)

6.Logging speed: 0 to 30 meter/min.

7.Power consumption: Less than 200W

8.Power supply: AC220V±10%  50Hz±5%

9.Operation temperature: -10°C to +50°C

10.Dimensions:  420×260×210mm

11.Weight: less than 7 kg

Logging System Software

Geophysical Logging Equipment For Gamma Ray, Resistivity and SP well logging tool

1.Operation system: windows98/2000/XP

2.Sampling interval: 1cm to 1000cm

3.Max depth of sampling once: 3000m (0.1m sampling interval)

4.Multi-parameter auto-aligns depths.

5.Curves of multi-parameters:  up to 10.

6.Curve drift, anomaly deletion, smooth, inverse order, combination, segmentation, computation and so on.

7.Interpreting sections input and rock-formation name, thickness, bottom block depth will be formed automatically.

8.Curve scaled (zoom in or out).

9.Curve depth scales:  1:50,1:100, 1:200, 1:500 and 1:1000

10.Colored or Grey plot maps.

11.Max Map output: width 415mm, length 2310mm.

Specifications of JCH-3 Winch Controller

Geophysical Logging Equipment For Gamma Ray, Resistivity and SP well logging tool

1.Speed Range:   1 to 29.9 meters per minute.

2.Depth Error:  ≤0.4‰

3.Depth Range:  0 to 9999.99 meters

4.Power Supply:  AC220V±10%  50Hz±5%

5.Continually working time: less than 24 hours

6.Depth pulse’s unit:  0.25mm per pulse

7.Power Consumption:  Less than 1.5kW

8.Work temperature range: -10°C to +70°C

9.Dimensions:  305×200×220 mm.

10.Weights:  less than 3 kg

Geophysical Logging Equipment For Gamma Ray, Resistivity and SP well logging tool

WINCHES

3000m Frequency-control Auto Winch

2000m Frequency-control Auto winch

1000m Frequency-control Auto Winch

500m Manual Winch

300m Auto-arrayed Manual Winch

LOGGING PROBES

M552/SM552 Integrated Wall-Cling Probe

DsCD Logging (double-spaced compensated density)

Natural Gamma Logging

Three-lateral Resistivity Logging

Caliper Logging

Spontaneous Potential Logging

M433/SM433 Dual-Density Probe

R411/SR411 Nature Gamma Probe

GJ-451/SGJ-451 Cement Bond Probe

X411/SX411 Three-lateral Resistivity Probe

S524/SS524 Acoustic Wave Probe

JCS-1/SJSC-1 Digital Inclination Probe

J511/SJ511 Big-hole Caliper Prob

W422/SW422 Temperature and Liquid Resistivity Combined Probe

J411/SJ411 Caliper Probe

H411/SH411 Magnetic Susceptibility Probe

NP442 Multi-Channel Spectrum Probe

Z422/SZ422 Neutron Combined Probe

LLY-1/SLLY-1 Flow Probe

Y411 Fluorescence Probe
