Quick Details
-
Place of Origin:
-
China
-
Dimension(Long * Breadth * High):
-
1740x900x1370mm
-
Machine Weight:
-
860KGS
-
Bucket capacity:
-
0.15M3
-
Certification:
-
CE ISO
Quick Details
-
Engine Brand:
-
Briggs & Stratton
-
Power:
-
23HP
-
Brand Name:
-
HENGTIAN
-
Place of Origin:
-
China
-
Dimension(Long * Breadth * High):
-
1740x900x1370mm
-
Machine Weight:
-
860KGS
-
Bucket capacity:
-
0.15M3
-
Certification:
-
CE ISO

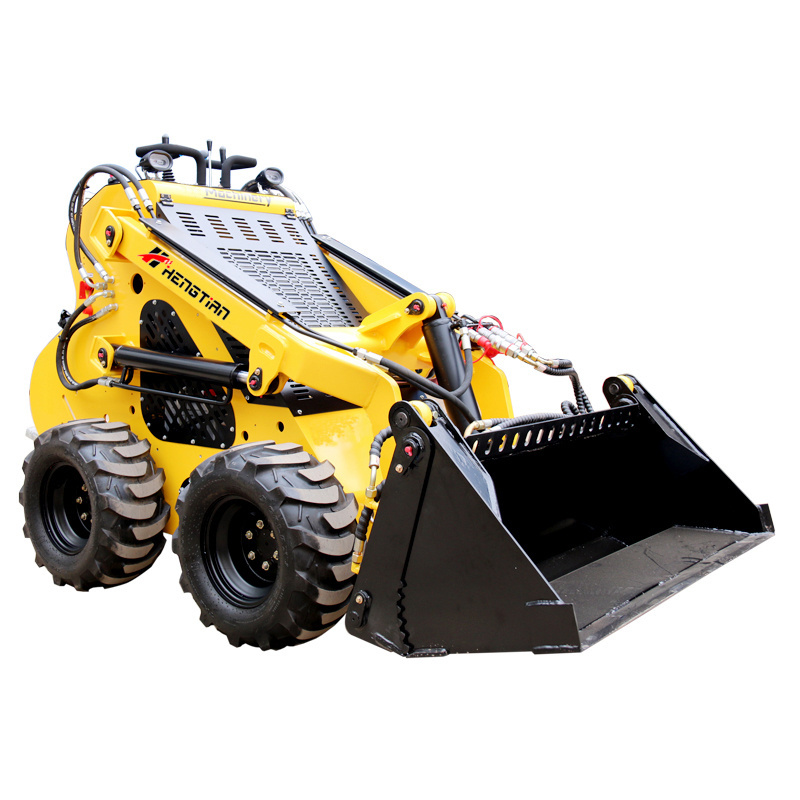

Chinese mini skid steer loader wheel loader with pallet fork made
.
Feature and specification
1. Loading capacity: 220kgs.
2. Petrol Engine power: 23hp V-twin heavy duty.
3. Hydraulic driving motor: USA WHITE big displacement.
4. Bucket 4 in 1 capacity: 0.15m
3.
5. Flow output: 58 L/min.
6. Operating weight: 600kgs.
7. 740mm narrow width to access even door
8. ISO standard Nipples on all friction points
9. Blinking daily and night LED lights
10. Automatically big diameter air cooler fan.
11. Dumping foldable foot platform.
12. Italy DNP flat faced quick coupling
Standard configuration
|
Engine : |
23HP American Briggs&Stratton VANGUARD engine or Kohler engine |
|
Pump : |
American PERMCO , Italy Hansa pump for optional |
|
Valves: |
Italian Hydraulic control valves |
|
Motor: |
American WHITE |
|
Bearing: |
Japanese NSK |
|
Drive: |
4x4 wheels |
|
Instrument: |
Waterproof instrument |
|
All parts electrophoresis avoid rusting |
|
Powerful double PERMCO pump:
- The engine radiator is all-Aluminum, good for engine cooling.
-It is easier to get touch into the motor,pumps as
Swing -out the cooler.
|
Item |
Main description |
Units - Metric |
Units- US |
|
A |
Overall operating height |
2452mm |
96.5 in |
|
B |
Height to bucket hinge pin |
1914mm |
75.3in |
|
C |
Height to top of cab |
1370mm |
54in |
|
D |
Height to bottom of level bucket |
1790mm |
70.4in |
|
E |
Overall length without bucket |
1740mm |
68.5in |
|
F |
Overall length with bucket |
2170mm |
85.4in |
|
G |
Dumping angle at maximum height (°) |
33.7 |
33.7 |
|
H |
Dumping height |
1515mm |
60in |
|
I |
Dumping reach |
545mm |
21.5in |
|
J |
Rollback of bucket on ground (°) |
26 |
26 |
|
K |
Rollback of bucket at full height (°) |
114 |
114 |
|
L |
Wheelbase |
657mm |
25.9in |
|
M |
Ground clearance |
140mm |
5.5in |
|
N |
Angle of departure (°) |
23 |
23 |
|
O |
Turning radius front without bucket |
801mm |
31.5in |
|
P |
Front turning radius with bucket |
1282mm |
50.4in |
|
Q |
Rear turning radius |
1026mm |
40.5in |
|
S |
Tread width, centerline to centerline |
960mm |
37.8in |
|
T |
Width between outside of two wheels |
1150mm |
45.3in |
|
U |
Bucket width |
1160mm |
45.7in |
Mini skid steer loader TY323 with attachments:
1. less than 3 units, will be packed into plywood cover box, the packing measurement should be negotiated with the seller according to your order items(including attachments, tools,etc..
2. more than 3 units, will be in a nude package loaded into container directly.
3. 4-6 units into one 20'GP container.
4. 8-10 units into one 40'GP container.
