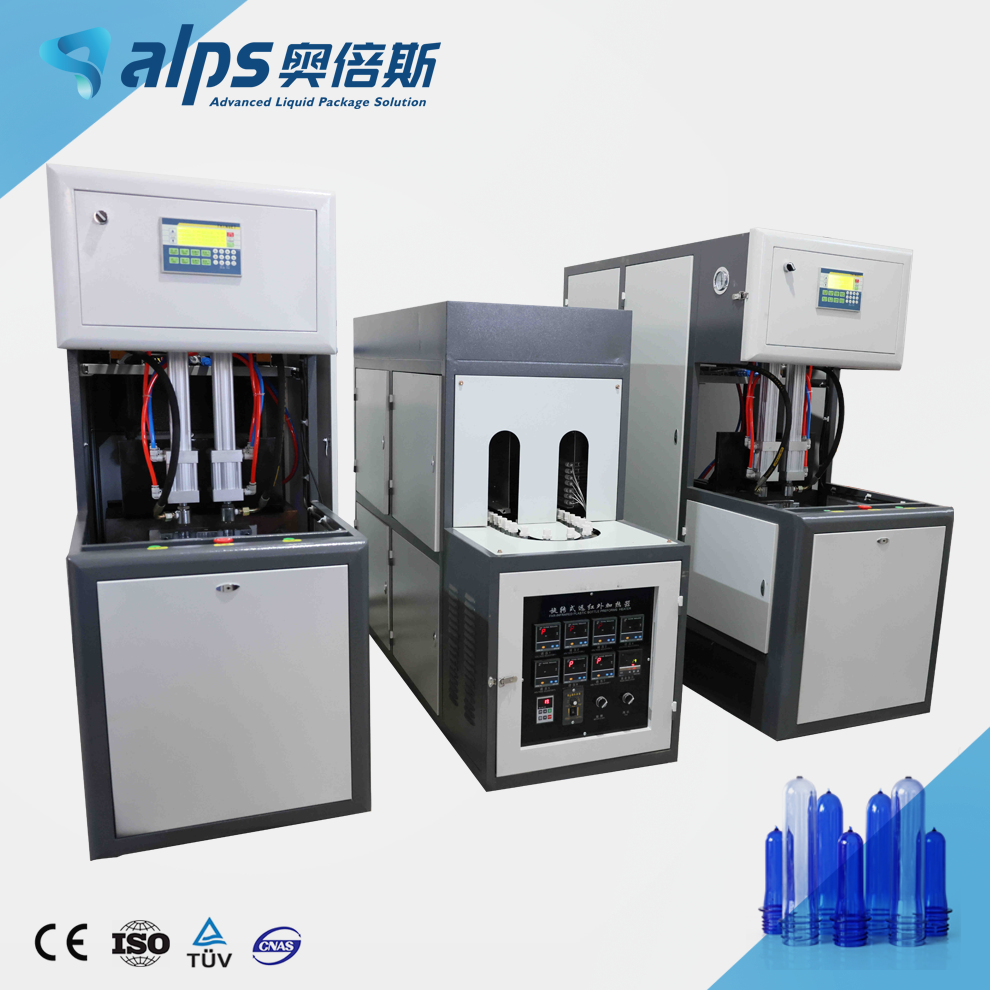

Semi automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 0.1L to 20L. It is widely used to produce the mineral water bottle,carbonated drink bottle,Juice bottle, pesticide bottle ,oil bottle,daily chemical bottle, cosmetics bottle,wide-mouth Jar ,PET can etc.
- Product Details
- {{item.text}}
Quick Details
-
Bottle Volume(ml):
-
500 ml
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Alps
-
Year:
-
2021
-
Voltage:
-
customized
-
Dimension(L*W*H):
-
2.5*1*1.85m
-
Hollow part volume:
-
20ML~2L
-
Clamping Force (kN):
-
80
-
Power (kW):
-
35
-
Weight (KG):
-
800 KG
-
Keywords:
-
semi automatic bottle blowing machine
-
Capacity:
-
600 ~2000 pcs/hour
-
Bottle volume:
-
0.1L ~20L
-
Suitable bottle:
-
PET drinking Bottle
-
Bottle material:
-
PET preform
-
Machine type:
-
PET stretch blowing
-
Model:
-
2 / 4 / 6 cavities
-
Automatic type:
-
Semi automatic
-
Operator:
-
2~3 workers
Quick Details
-
Neck Diameter(mm):
-
28 mm
-
Max.Bottle Diameter(mm):
-
120 mm
-
Max.Bottle Height(mm):
-
380 mm
-
Bottle Volume(ml):
-
500 ml
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Alps
-
Year:
-
2021
-
Voltage:
-
customized
-
Dimension(L*W*H):
-
2.5*1*1.85m
-
Hollow part volume:
-
20ML~2L
-
Clamping Force (kN):
-
80
-
Power (kW):
-
35
-
Weight (KG):
-
800 KG
-
Keywords:
-
semi automatic bottle blowing machine
-
Capacity:
-
600 ~2000 pcs/hour
-
Bottle volume:
-
0.1L ~20L
-
Suitable bottle:
-
PET drinking Bottle
-
Bottle material:
-
PET preform
-
Machine type:
-
PET stretch blowing
-
Model:
-
2 / 4 / 6 cavities
-
Automatic type:
-
Semi automatic
-
Operator:
-
2~3 workers
Product Description
Low Price Semi Automatic Plastic Beverage Water Blowing Making PET Bottle Blowing Machine
|
Technical parameter: semi automatic bottle blowing machine
|
|
|
|
|
||||
|
Model
|
BL800
|
BL1500
|
BL9A
|
BL12
|
||||
|
Bottle sizes
|
0.1L-2L
|
0.1L-2L
|
1L-5L
|
10L-20L
|
||||
|
Capacity(bottles/hour)
|
800 bph
|
1200 bph
|
300~600 bph
|
60~120 bph
|
||||
|
Application
|
semi automatic bottle blowing machine
|
|
|
|
||||
|
Total power
|
15kw
|
25kw
|
35kw
|
35kw
|
||||
|
Max bottle height
|
<300mm
|
<300mm
|
<400mm
|
<500mm
|
||||
|
Hp air compressor
|
1.0 m3/min 30kg
|
1.2 m3/min 30kg
|
1.2 m3/min 30kg
|
1.6m3/min 30kg
|
||||
|
Weight
|
500kg
|
800kg
|
1000kg
|
1200kg
|
||||
Main Features
● Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
● The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
● The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
● The machine can be operated in the step-by-step mode and the semi-auto mode.
● The machine is small with low investment, easy and safe to operate .
Auxiliary equipment description
High Pressure Air Compressor Function :
To provide air source for PET stretch blow molding machine, carrying out the process of compressing air from atmosphere to the required pressure
Air Cooling Dryer Function :
To remove the moisture from the compressed air and lower temperature of the compressed air in the heat ex-changer.
Air filter Function:
To clear up the impurities out of the compressed air, like carbon hydrogen, tiny dust and solid particles.
