- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
JINGYAN
-
Model Number:
-
JY-1035
-
Operation method:
-
LCD display
-
Friction speed:
-
(21/42/85/106 c.p.m)
-
Friction load:
-
4.5b (2.04kg) (20N)
-
Rubbing stroke:
-
60 mm
-
Number of settings:
-
0-9999 stops automatically
-
Friction area:
-
50*100 mm
-
Machine power:
-
40 W
-
Power supply:
-
AC220V 50HZ
-
Dimension:
-
300 * 325 * 300 mm
-
Weight:
-
20kg
Quick Details
-
Warranty:
-
1 year
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JINGYAN
-
Model Number:
-
JY-1035
-
Operation method:
-
LCD display
-
Friction speed:
-
(21/42/85/106 c.p.m)
-
Friction load:
-
4.5b (2.04kg) (20N)
-
Rubbing stroke:
-
60 mm
-
Number of settings:
-
0-9999 stops automatically
-
Friction area:
-
50*100 mm
-
Machine power:
-
40 W
-
Power supply:
-
AC220V 50HZ
-
Dimension:
-
300 * 325 * 300 mm
-
Weight:
-
20kg

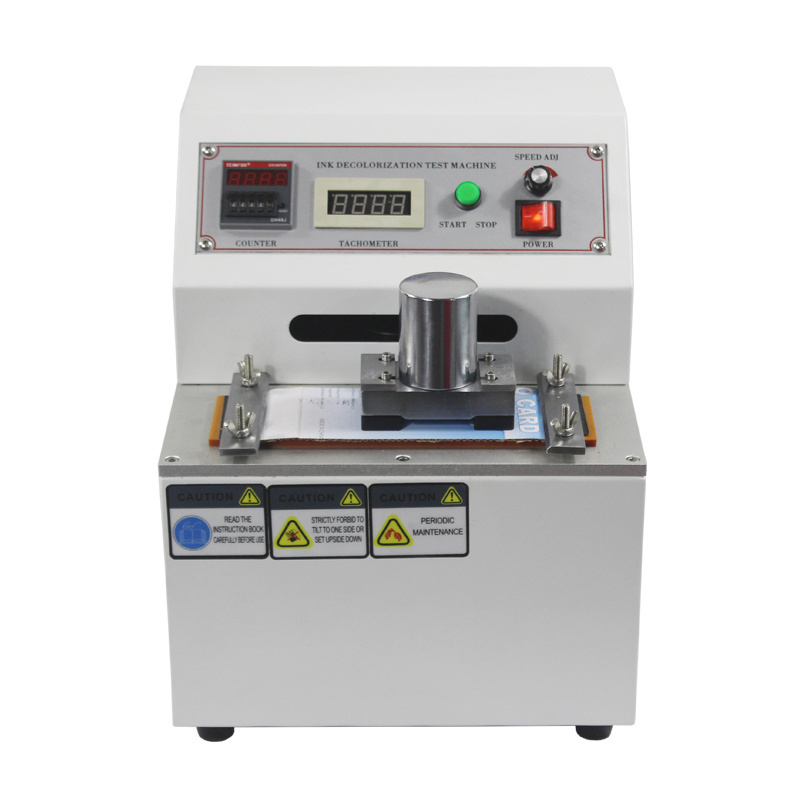

Introduction:
1. use: Ink and print, color box wear resistance, decolorization degree test.
2. the principle:This machine judges the wear resistance and the degree of decolorization by rubbing between the measured material and the white wood forest paper.
|
Items |
Specifications |
|
Operation method |
LCD display. |
|
Friction speed |
4 kinds of speed adjustable (21/42/85/106c.p.m) |
|
Friction load |
4.5b (2.04kg) (20N) |
|
Rubbing stroke |
60mm |
|
Number of settings |
0-9999 stops automatically. |
|
Friction area |
50×100mm |
|
Machine power |
40W |
|
Machine size |
300×325×300 m m W×D×H |
|
Machine weight |
20kg |
|
Use voltage |
AC 220V 50 60HZ 2A |
