Quick Details
-
Warranty:
-
12 months
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
V1SA-7670SA
-
Product name:
-
4G GPS Tracking Device
-
Network:
-
4G LTE
-
Application:
-
Car Motorcycle Electric Car Fleet
-
Battery:
-
60 mAh
-
Positioning method:
-
Beidou+GPS
-
Size:
-
81mm * 32mm * 14mm
-
Power supply method:
-
Battery powered
-
Feature:
-
Vibration alarm, low voltage alarm
-
Feature 1:
-
Power failure alarm, overspeed alarm
Quick Details
-
Positioning Mode:
-
GPS, Beidou
-
Function:
-
Waterproof, Loop recording, Fast Charging, Voice Monitor, street view, ACC Detection, Geofence, SDK, 5G Sim Card
-
Data Storage:
-
Cloud Storage
-
Warranty:
-
12 months
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
V1SA-7670SA
-
Product name:
-
4G GPS Tracking Device
-
Network:
-
4G LTE
-
Application:
-
Car Motorcycle Electric Car Fleet
-
Battery:
-
60 mAh
-
Positioning method:
-
Beidou+GPS
-
Size:
-
81mm * 32mm * 14mm
-
Power supply method:
-
Battery powered
-
Feature:
-
Vibration alarm, low voltage alarm
-
Feature 1:
-
Power failure alarm, overspeed alarm
Products Description
Real Time Gps Tracker Vehicle GPS Tracking Device for Bike Motorcycle Car Truck
V1SA is a 4G vehicle positioning terminal crafted for Telematics, integrating 4G wireless communication technology and GPS/BDS satellite navigation and positioning technology, the terminal adopts industrial-grade high-integrity fully built-in antenna design, the device has built-in 3-axis sensors, intelligent power-saving wake-up work. With DC detection, ACC detection, power failure alarm, speeding alarm, mileage statistics, SOS emergency distress, remote fuel and electricity disconnection and other functions. With the global positioning service platform, it realizes the real-time acquisition of vehicle data, tracking and positioning function.

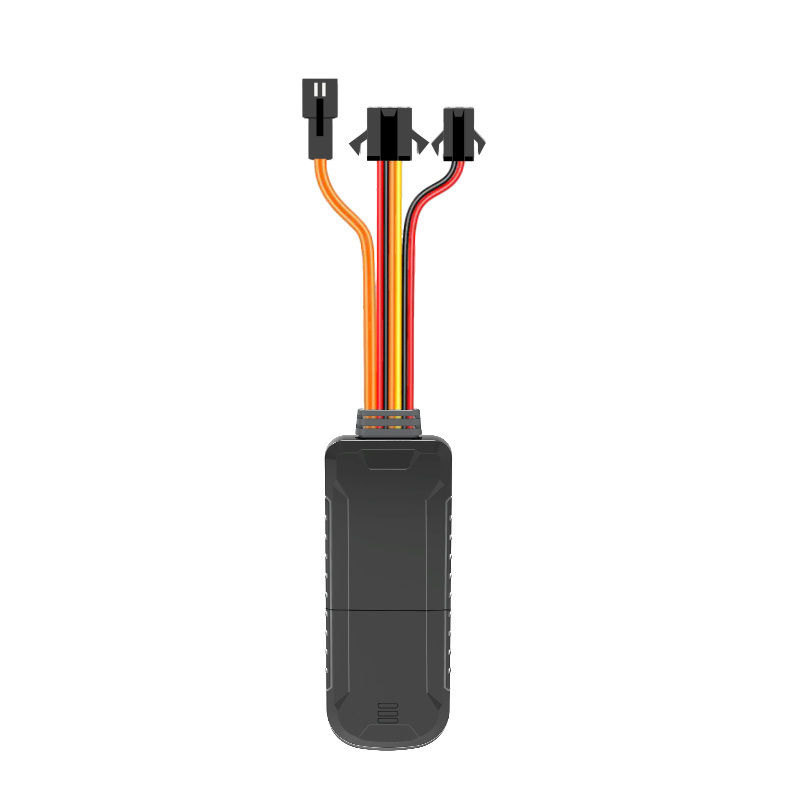

Detailed Images
Product Parameters
|
|
Function Name
|
have
|
nothing
|
Project Function Description
|
|
|
|
Electrical characteristics
|
Power supply method
|
●
|
|
Battery powered
|
|
|
|
|
Operating voltage range
|
●
|
|
DC 9V -95V
|
|
|
|
|
Working current
|
●
|
|
12V/average 35mA
|
|
|
|
|
Dormant current
|
●
|
|
12V/average 10mA
|
|
|
|
|
Built-in battery capacity
|
●
|
|
60 mAh (3.7V polymer battery) optional
|
|
|
|
Environmental characteristics
|
Operating temperature range
|
●
|
|
-20 ℃ -75 ℃
|
|
|
|
|
Storage temperature range
|
●
|
|
-30 ℃ -80 ℃
|
|
|
|
|
Operating humidity range
|
●
|
|
10% -85% RH non condensing
|
|
|
|
Communication characteristics
|
Communication module brand/chip model
|
●
|
|
SIMCOM A7670SA
|
|
|
|
|
Communication frequency band
|
●
|
|
LTE/4G
|
LTE-FDD:
B1/B2/B3/B4/B5/B7/B8/B28/B66 |
|
|
|
|
|
|
GSM/2G
|
850/900/1800/1900MHz
|
|
|
|
SIM card
|
●
|
|
Nano SIM card
|
|
|
|
|
communication antenna
|
●
|
|
Internal antenna
|
|
|
|
|
Antenna specifications
|
●
|
|
FPC antenna
|
|
|
|
GPS/BD positioning characteristics
|
Positioning module brand/chip model
|
●
|
|
Zhongke Micro AT6558
|
|
|
|
|
Positioning method
|
●
|
|
Beidou+GPS
|
|
|
|
|
Cold start time
|
●
|
|
Average 32 seconds
|
|
|
|
|
Hot start time
|
●
|
|
Average 1 second
|
|
|
|
|
Tracking sensitivity
|
●
|
|
-162 dBm
|
|
|
|
|
Positioning antenna
|
●
|
|
Built in ceramic dielectric antenna
|
|
|
|
|
Antenna specifications
|
●
|
|
18mm * 18mm * 4mm
|
|
|
|
|
GPS frequency band
|
●
|
|
L1: 1575.42 ± 1.023MHz
|
|
|
|
|
Beidou frequency band
|
●
|
|
B1: 1561.098 ± 2.046MHz
|
|
|
|
|
Number of satellite channels
|
●
|
|
thirty-two
|
|
|
|
|
positioning accuracy
|
●
|
|
<10m (1 σ）
|
|
|
|
|
Timing accuracy
|
●
|
|
<30ns (1 σ）
|
|
|
|
|
Speed measurement accuracy
|
●
|
|
<0.1m/s (1 σ）
|
|
|
|
|
Maximum acceleration
|
●
|
|
4g
|
|
|
|
|
Maximum speed
|
●
|
|
515m/s
|
|
|
|
|
Maximum height
|
●
|
|
18000m
|
|
|
|
External interface
|
ACC detection input
|
●
|
|
One ACC detection line
|
|
|
|
|
Cut off oil and electricity
|
●
|
|
Low output one circuit (relay control line)
|
|
|
|
|
SOS
|
●
|
|
Low detection one channel (SOS alarm line)
|
|
|
|
|
Mike
|
●
|
|
Can be connected to an external microphone
|
|
|
|
Appearance specifications
|
Host size (length, width, height)
|
●
|
|
81mm * 32mm * 14mm
|
|
|
|
|
Shell material
|
●
|
|
ABS plastic
|
|
|
|
|
Host weight
|
●
|
|
38 grams
|
|
|
