Quick Details
-
Brand Name:
-
SA
-
Model Number:
-
SANH3
-
Product name:
-
ammonia gas analyzer
-
Detecting Gas:
-
lel h2s ch4 co o2 C2H4 nh3
-
Sensor:
-
Imported High-precision Sensor
-
Color:
-
Yellow
-
Alarm Type:
-
Vibration+Sound+Light Alarm
-
Usage:
-
Industrial
-
Display:
-
LCD Screen
-
Dimensions:
-
105x54x32mm
-
Weight:
-
240g
Quick Details
-
Type:
-
Single gas detector, Single Gas Detector
-
Warranty:
-
1 YEAR
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
SA
-
Model Number:
-
SANH3
-
Product name:
-
ammonia gas analyzer
-
Detecting Gas:
-
lel h2s ch4 co o2 C2H4 nh3
-
Sensor:
-
Imported High-precision Sensor
-
Color:
-
Yellow
-
Alarm Type:
-
Vibration+Sound+Light Alarm
-
Usage:
-
Industrial
-
Display:
-
LCD Screen
-
Dimensions:
-
105x54x32mm
-
Weight:
-
240g
Product Description
Single ammonia NH3 gas detector
SA-M201 NH3 ammonia gas detectors are designed to protect workers in a variety of environments, including enclosed spaces like manholes, sewers, and other areas with poor ventilation. They detect gases like oxygen (O2 Monitor), hydrogen sulfide (H2S Monitor), carbon monoxide (CO Monitor), and lower explosive levels (LEL Monitor) of a variety of combustible gases.
We offer a range of monitors for you to choose from, like Multi-gas detecting alarm,Single gas detector,2 in 1 gas detector,3 in 1 gas detector,4 in 1 gas detector,Vehicle gas detector.View our gas monitor choices below. You can also get a reliable single-gas H2S monitor, O2 monitor, CO monitor, and more at SA technology.
Ammonia (NH3) is one of the most widely used chemicals globally that is produced both in the human body and in nature. Although it is naturally created (NH3) is corrosive which poses a serve concern for health. High exposure within the air can result in immediate burning to the eyes, nose, throat and respiratory tract. Serve cases can result in blindness.So carrying an ammonia gas detector is essential for protecting your safety and healthy.
Key features: Ammonia gas leak detector
-Easy to operation
-Easy to read LCD display with back-light
-Clear indication of operating status
-75dBA audible alarm
-Striking twin red/blue visual alarm,it can be customized
-Internal vibrating alarm
-2 levels of instantaneous alarm
-STEL and TWA alarms
-Tough ABS plastic housing,intrinsically safe
-Full elastomeric overmoulding
-High impact resistance
-IP54 compliant
-reading data logging storage capacity for optional
More brand sensors we provide...
..
Like City,Honeywell,DD,Basic,Dynament,local high sensitive brands(electrochemical sensor /catalytic combustion gas sensor/NDIR sensor)
Specification

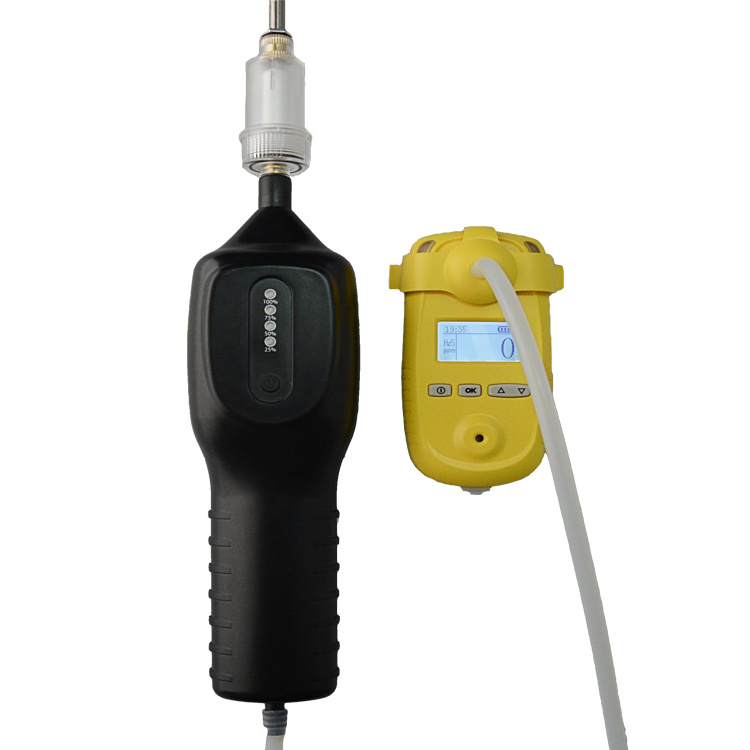

Cold room poultry 1000 ppm handheld NH3 gas analyzer test portable ammonia gas leak detector with sampling pump
|
Detecting gas
|
Measuring Range
|
|
CO
|
(0-1000)PPM
|
|
O2
|
(0.0-30.0)%VOL/(0.0-100)%VOL
|
|
H2S
|
(0-100)PPM
|
|
NO
|
(0-250)PPM
|
|
NO2
|
(0-20)PPM
|
|
H2
|
(0-1000)PPM
|
|
SO2
|
(0-20)PPM
|
|
CO2
|
(0.00-5.00)%VOL/(0-100)%VOL
|
|
NH3
|
(0-100)PPM/(0-1000)PPM
|
|
C2H4
|
(0-100)PPM
|
|
C2H4O
|
(0-20)PPM
|
|
Alarm sound intensity
|
80dB
|
|
Alarm way
|
Sound,light alarm
|
|
Alarm indicator light
|
can be visible in the distance of not less 20m
|
|
Sensor life
|
Electrochemical≥2 years NDIR≥5 years
|
|
Working current
|
95mA
|
|
Continuous operating hours
|
≥12 hours
|
|
Battery item
|
Pl123450 3.7V/1500mA
|
|
Battery short circuit current
|
2A
|
|
Charging time
|
4-5 hours
|
|
Protection level
|
IP54
|
|
Working temperature
|
-25℃～55℃;short time for -40℃～55℃
|
|
Size
|
130*66*30mm
|
We can customize this single gas detector according to your detecting gas and measuring range.Before starting an order,pls contact with our staff on what's the gas and measuring range you want.Then we can choose a right gas analyzer for you.
Packing & Delivery
Cold room poultry 1000 ppm handheld NH3 gas analyzer test portable ammonia gas leak detector with sampling pump
Those Portable single NH3 ammonia gas detector and accessories will be packed into carton box before shipping.
Our standard packing list for NH3 ammonia gas detector as below:
1.SANH3 Ammonia gas detector x 1
2.USB cable and AC adapter
3.Calibration Tube&cap
4.Back Clip
5.Leather cage
6.Pump for optional
