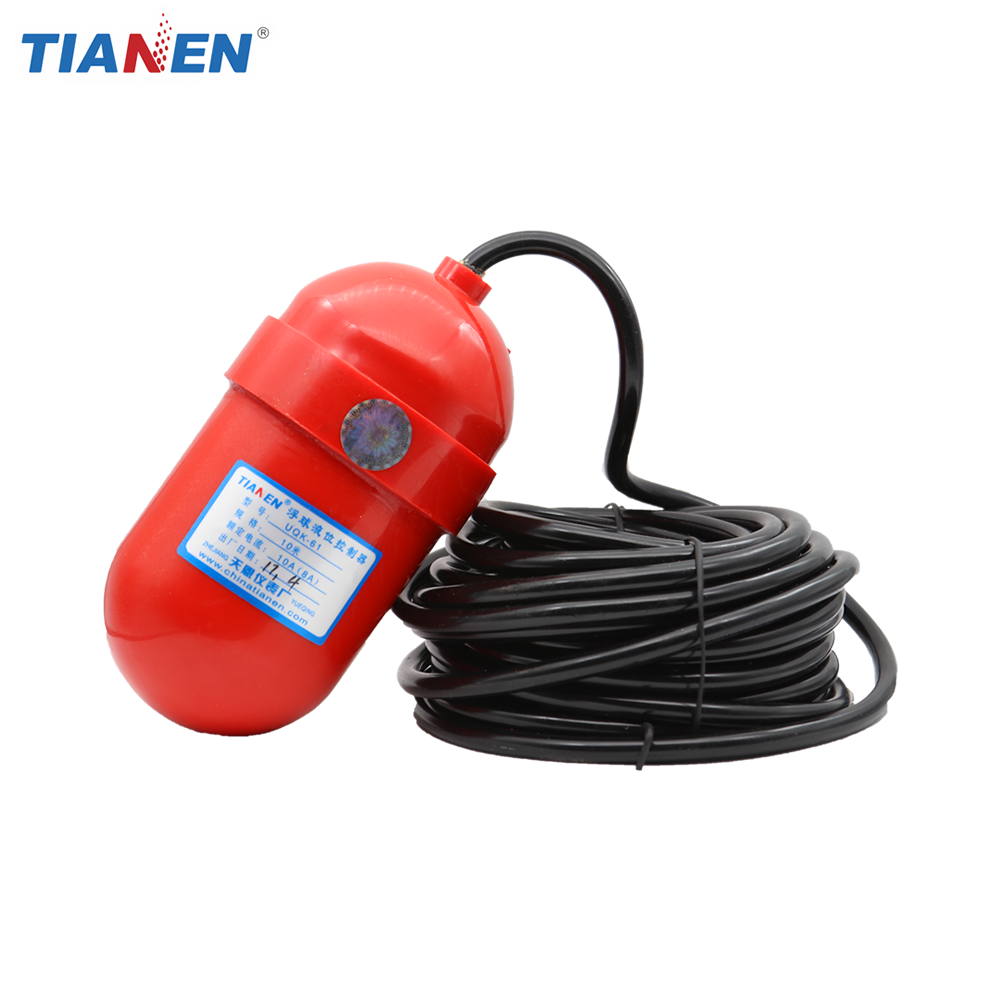

UQK-61 Magnetic Float Level Switch

FOB Reference Price: Get Latest Price

≥1 Pieces

US $8

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: TIANEN, TIANEN

Model Number:: UQK-61

Product Name:: UQK-61 Magnetic Float Level Switch

Product keywords:: Float Level Switch

Weight:: 4M 0.74kg

Quick Details

Grade:: Industrial

Warranty:: 1 YEAR

Place of Origin:: Zhejiang, China

Brand Name:: TIANEN, TIANEN

Model Number:: UQK-61

Product Name:: UQK-61 Magnetic Float Level Switch

Product keywords:: Float Level Switch

Weight:: 4M 0.74kg

FYK-221 Float Level Switch

Product Description

INTRODUCTION About UQK-61 Magnetic Float Level Switch

UQK-61 Magnetic Float Level Switch is using reed and inches switch of floating-ball to send out contact signal. Because of no movable mechanism on the outside, it’s especially suitable for the liquid with solid and semisolid floater and mucigen liquid such as sewer water, factory sewage.

SPECIFICATION

Model	Switch data	Main attachment	Application
UQK-611	One point	Wire: Φ8, 5meters Span wire: Φ5, 6meters Heavy punch, Clamp holder	Sewage with tiny floater
UQK-612	Two point	Wire: Φ8, 5meters(Each point ) Span wire: Φ5, 6meters Junction box, Heavy punch, Clamp holder	Industrial sewage and sanitary waste with a lot of floater
UQK-613	Three point
UQK-614	Four point

Outline Dimension	Floating – ball: Φ8×172 Junction box: The max external diameter is Φ205, the height is 142. Size of mounting hole: Φ170, 4-Φ18
Output Singal	1. Contact output of REED.( REED imports from abroad ) 2. Contact output of inches switch.
Contact Form	(NO) or (NC)
Contact Rating	1. working voltage: 220VAC working current: 1A 2. Contact output of inches switch: 5A
Contact Endurance	2×10 ⁶
Medium temperature	-10 ℃ ~+80 ℃ ( ABS ) -10 ℃ ~+150 ℃ (Stainless steel)
Adjustable range	0.3m~10m
