Quick Details
-
Material:
-
430 stainless steel+PA+GF
-
Size:
-
98*66*13.8mm
-
Applicable door weight:
-
0.5kg~10kg
-
Working temperature:
-
-20℃~+60℃
-
Working humidity:
-
5%~85%RH
-
Working life:
-
500,000 times
-
Tensile strength:
-
300 kg
-
Response time:
-
<200ms
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KERONG
-
Product Name:
-

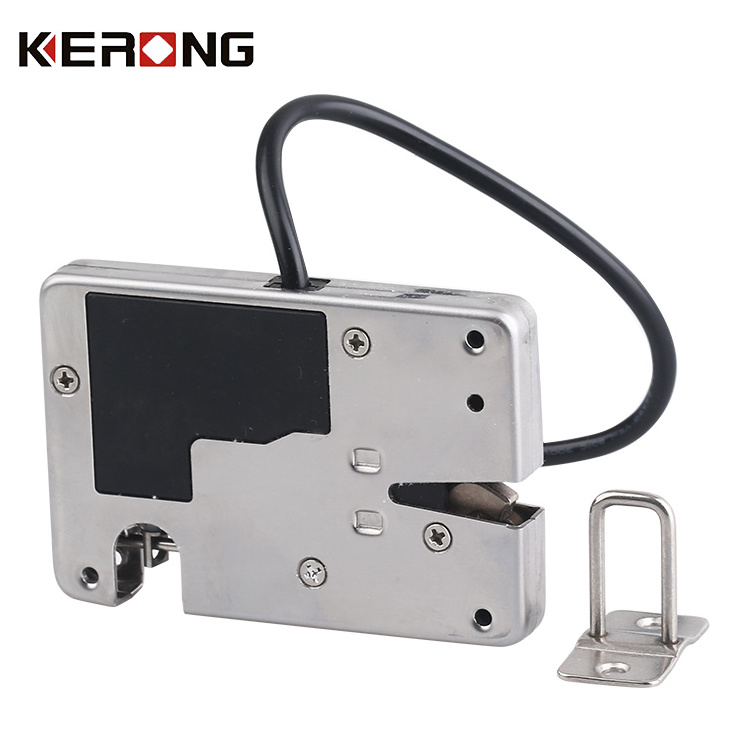

Waterproof Solenoid Lock
-
Material:
-
430 stainless steel+PA+GF
-
Size:
-
98*66*13.8mm
-
Applicable door weight:
-
0.5kg~10kg
-
Working temperature:
-
-20℃~+60℃
-
Working humidity:
-
5%~85%RH
-
Working life:
-
500,000 times
-
Tensile strength:
-
300 kg
-
Response time:
-
<200ms
Product Paramenters
|
Brand
|
KERONG
|
|
Product Model
|
KR-S98C
|
|
Material
|
430 Stainless Steel+PA+GF
|
|
Size
|
98*66*13.8mm
|
|
Weight of Lock
|
185 g
|
|
Color
|
Silver
|
|
Surface Treatment
|
Brushed texture surface
|
|
Working Voltage
|
12V/24V
|
|
Working Current
|
2.4A/1.2A
|
|
Power Consumption
|
28.8 W
|
|
Working Life
|
500,000 times
|
|
Detective Switch
|
Omron
|
|
Drive Mode
|
Solenoid
|
|
Application
|
Gym Locker, Electric Cabinet, Parcel Storage Locker, Supermarket Locker, etc
|
|
Certifications
|
CE, RoHS, FCC
|
Product Specification
1. Driven by solenoid, support 12V&24V.
2. AWG24 wire with PVC protective tube.
3. Support customizing wires and connectors.
4. All electronic parts are protected with the closed box. Waterproof.
5. Equipped with an emergency unlocking lever, which can be manually unlocked in an emergency.
6. Different lock hooks suit for different locker design, customization service is available.
7. The Japanese Omron switch has a long service life and detects the opening and closing of the lock.
2. AWG24 wire with PVC protective tube.
3. Support customizing wires and connectors.
4. All electronic parts are protected with the closed box. Waterproof.
5. Equipped with an emergency unlocking lever, which can be manually unlocked in an emergency.
6. Different lock hooks suit for different locker design, customization service is available.
7. The Japanese Omron switch has a long service life and detects the opening and closing of the lock.
8. Safety: The lock shell is made of 430 stainless steel, and there will be no obvious transformation.
