Quick Details
-
certificate:
-
TUV.SGS.BV
-
Association:
-
IFAI.ARA.
-
Function:
-
Party/Wedding/Banquet/Ceremony, etc.
-
Fixing Solution:
-
Expandable Bolt,Weight Plate, etc.
-
Featuring:
-
Waterproof, Fireproof, UV-resistant
-
Roof cover:
-
PVC coated fabric, Blockout.850g/sqm
-
Sidewall cover:
-
PVC coated fabric,650g/sqm
-
Warranty:
-
Aluminum Frame=8 years,PVC=5 years
-
Wind Loading:
-
100KM/H
-
Manufacturer:
-
Yes
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Superb
-
Model Number:
-
MS
-
certificate:
-
TUV.SGS.BV
-
Association:
-
IFAI.ARA.
-
Function:
-
Party/Wedding/Banquet/Ceremony, etc.
-
Fixing Solution:
-
Expandable Bolt,Weight Plate, etc.
-
Featuring:
-
Waterproof, Fireproof, UV-resistant
-
Roof cover:
-
PVC coated fabric, Blockout.850g/sqm
-
Sidewall cover:
-
PVC coated fabric,650g/sqm
-
Warranty:
-
Aluminum Frame=8 years,PVC=5 years
-
Wind Loading:
-
100KM/H
-
Manufacturer:
-
Yes

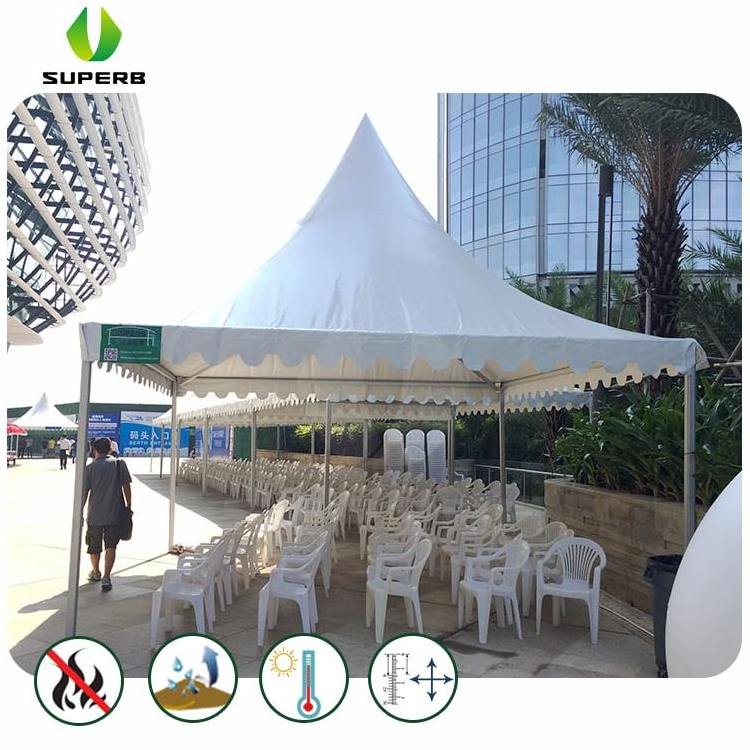

Waterproof PVC Fabric outdoor gazebo, manual assembly gazebo tent, gazebo tent 4x4
Application :
Waterproof PVC Fabric outdoor gazebo, manual assembly gazebo tent, gazebo tent 4x4 could be widely used as outdoor parties and other festival events celebrations. Each side has assembled ABS walls so that could prevent interference from outside. Authentication of SGS stand, styles could be customize.
|
Specification of Outdoor Gazebo Manufacturers |
||||||
|
Type |
Span (m) |
Side height (m) |
Peak height (m) |
Bay Distance (m) |
Longest Component (m) |
Wind Load (km/h) |
|
PA3/2.5-3 |
3 |
2.5 |
4.2 |
3 |
3 |
80 |
|
PA4/2.5-4 |
4 |
2.5 |
4.8 |
4 |
4 |
80 |
|
PA5/2.5-5 |
5 |
2.5 |
5.2 |
5 |
5 |
80 |
|
PA6/2.5-6 |
6 |
2.5 |
5.8 |
6 |
6 |
80 |
|
PAG8/2.6-8 |
8 |
2.6 |
5.4 |
4 |
80 |
|
|
PAG10/2.6-8 |
10 |
2.6 |
6.4 |
5 |
80 |
|
|
Main frame Profile |
65X65X2.5mm(3-channel,for 3-6m ) /122x68x3mm(4-channel,for 8-10m )) |
|||||
|
Eave Connection |
Hot-dip Galvanized Steel Insert |
|||||
|
Frame Material |
Hard Pressed Extruded Aluminum 6061/T6 |
|||||
|
Cover Material |
Double PVC coated Polyester textile, flame retardant to DIN4102 B1,M2,750-900g/sq.m |
|||||
|
Product Information |
|
|
Style |
PM series, cone tent |
|
Supplier |
Superb tent |
|
Material |
1.Hard pressed extruded aluminum 6061/T6(Main frame profile size: 350*120*5mm) |
|
|
2.Double PVC coated polyester fabric(650-900g/sq. m, water proof, UV resistance, anti-mildew, self-cleaning, fire retardant according to standard NFPA701 & DIN4102 B1/M2 ) |
|
|
3.Connections:Hot-dip galvanized steel |
|
Safety parameters |
Wind load: 100km/h (0.5kn/M2) & Snow load: 25kg/sq.m |
|
Life span |
Aluminum frame: 20-30years & Fabric(cover & sidewalls): 8-10years |
|
Payment terms |
L/C,T/T,Western Union,Money Gram |
|
Production lead time |
25-30 days after order confirmed. |
|
Our advantage |
1. We have more experience in manufacturing & exporting.Service will be more professional. |
|
|
2. Advance equipments are used,more rapid delivery. |
|
|
3. 24-hours on line, service more swiftly. |
|
|
4. Hight quality & competitive price. |
|
Remark |
Authentication of SGS stand, OEM and ODM orders are warmly welcome. |
Before delivery,trial assembly of tents will be conducted to eliminate any possible bugs. Installation instruction and vedio can be provided if required. In addition, assemble supervisor can also be dispatched as one of the after-sale services.
- Aluminum frame packed in membrane film .
- Hardware packed in solid carton box .
- PVC covers are packed in professional PVC carry bag .
