Quick Details
-
Brand Name:
-
SA
-
Model Number:
-
SANH3
-
Product name:
-
NH3 ammonia gas detector
-
Detecting Gas:
-
lel h2s ch4 co o2 no2 nh3
-
Sensor:
-
Imported High-precision Sensor
-
Color:
-
Yellow
-
Alarm Type:
-
Sound+Light Alarm
-
Usage:
-
Industrial
-
Display:
-
Digital Screen
-
Dimensions:
-
105x54x32mm
-
Weight:
-
450g
Quick Details
-
Type:
-
Single gas monitor, Gas Detector
-
Warranty:
-
1 YEAR
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
SA
-
Model Number:
-
SANH3
-
Product name:
-
NH3 ammonia gas detector
-
Detecting Gas:
-
lel h2s ch4 co o2 no2 nh3
-
Sensor:
-
Imported High-precision Sensor
-
Color:
-
Yellow
-
Alarm Type:
-
Sound+Light Alarm
-
Usage:
-
Industrial
-
Display:
-
Digital Screen
-
Dimensions:
-
105x54x32mm
-
Weight:
-
450g
Product Description

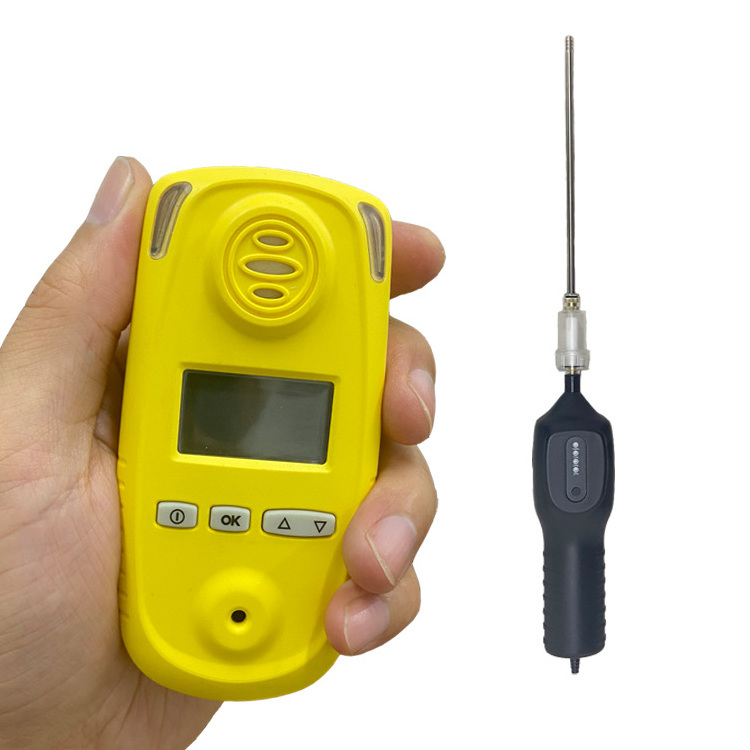

Portable NH3 gas detector
SANH3 Portable NH3 gas detectors are designed to protect workers in a variety of environments, including enclosed spaces like manholes, sewers, and other areas with poor ventilation.They detect gases like nitrogen dioxide (NO2 detector),oxygen (O2
detector
),hydrogen sulfide (H2S
detector
),carbon monoxide (CO
detector
),and lower explosive levels (LEL
detector
) of a variety of combustible gases.
Ammonia (NH3) is one of the most widely used chemicals globally that is produced both in the human body and in nature. Although it is naturally created (NH3) is corrosive which poses a serve concern for health. High exposure within the air can result in immediate burning to the eyes, nose, throat and respiratory tract. Serve cases can result in blindness.
We offer a range of monitors for you to choose from,like Multi-gas detecting alarm,Single gas
detector
,2 in 1 gas
detector
,3 in 1 gas
detector
,4 in 1 gas
detector
,Vehicle gas
detector
.View our gas monitor choices below. You can also get a reliable single-gas H2S
detector
, O2
detector
, CO
detector
, NO2
detector
,NH3 detector and more at SA technology.
Characters of Portable NH3 gas detector
Robust Tough imported ABS materials housing – protects you in the harshest environments
Water and dust resistant to IP54
Full overmoulding – high impact resistance
Effective warning
Two levels of instantaneous alarm STEL and TWA alarms for toxic versions –
ensures prompt evacuation from hazardous zone
75dB audible alarm
red/blue visual alarm – can be customized Internal vibrating alarm
Flexible
Versions available for flammable gas, oxygen and toxic gases – gas detector can be customized according to your
requirements
Rechargeable Li-battery versions for all gas types
Real-time TWA and STEL alarm
Fully interchangeable intelligent catalytic combustion gas sensor modules
User friendly
button operation – quick and easy to use Back-lit display for gas
diagnostics and operating status – easy to read
Ultra lightweight and back clip design – comfortable to wear
External pump or sniffer is available for gas leakage detection
Water and dust resistant to IP54
Full overmoulding – high impact resistance
Effective warning
Two levels of instantaneous alarm STEL and TWA alarms for toxic versions –
ensures prompt evacuation from hazardous zone
75dB audible alarm
red/blue visual alarm – can be customized Internal vibrating alarm
Flexible
Versions available for flammable gas, oxygen and toxic gases – gas detector can be customized according to your
requirements
Rechargeable Li-battery versions for all gas types
Real-time TWA and STEL alarm
Fully interchangeable intelligent catalytic combustion gas sensor modules
User friendly
button operation – quick and easy to use Back-lit display for gas
diagnostics and operating status – easy to read
Ultra lightweight and back clip design – comfortable to wear
External pump or sniffer is available for gas leakage detection
Portable NH3 gas detector benefits:
●Imported high sensitive
sensor reliability for H2S,CO,CH4,NH3,NO2 or O2
●
Adjustable alarm set points&real-time gas reading capability,audible&visual alarm
●
1 ppm resolution for H2S,NO2 electrochemical sensor and display
●Data logger
for event downloads,tests & updates
●
Programmable individual gas monitor identification
●
Simple to use one button operation,Exibd I
●Continuous working more than 12 hours after fully charged
●STEL/TWA alarm setpoints
●
Lightweight&durable – clips on tight with alligator clip
Specification
Poultry animal farm electrochemical sensor 0-1000ppm gas analyzers portable NH3 ammonia multi gas meter detectors
|
Technical specification
|
Parameter
|
|
Detecting gas
|
NH3/NO2/CO2/H2/CH4/LEL/CO/O2/H2S(optional)
|
|
|
CH4
|
|
Measurement range
|
(0.00～5.00)%Vol
|
|
Measurement error
|
(0.00～1.00)%CH4:±0.10%CH4 (1.00～3.00)%CH4:true value±10%
(3.00～4.00)%CH4:±0.30%CH4
|
|
Respond time
|
20S(T90)
|
|
Resolution
|
0.01%vol
|
|
Alarm point
|
1.00%vol(can be adjusted in whole range)
|
|
|
LEL
|
|
Measurement range
|
(0.00～100)%LEL
|
|
Measurement error
|
(1～20)%LEL:±2%LEL (20～60)%LEL:true value±2%
(60～100)%LEL:±6%LEL
|
|
Respond time
|
20S(T90)
|
|
Resolution
|
1%LEL
|
|
Alarm point
|
20%LEL(can be adjusted in whole range)
|
|
|
CO
|
|
Measurement range
|
(0～1000) ppm
|
|
Measurement error
|
(0～20)% ppm:±2ppm (20～100)ppm:±4ppm
(100～500)ppm:true value±5% (500～1000)ppm:true value ±6%
|
|
Respond time
|
45S(T90)
|
|
Resolution
|
1ppm
|
|
Alarm point
|
24ppm(can be adjusted in whole range)
|
|
|
O2
|
|
Measurement range
|
(0.0～30.0)%Vol
|
|
Measurement error
|
(0.0～5.0)%:±0.5%vol (5.0～30.0)%vol:±0.9%vol
|
|
Respond time
|
35S(T90)
|
|
Resolution
|
0.01%vol
|
|
Low Alarm point
|
18.0%vol(can be adjusted in whole range)
|
|
High Alarm point
|
25.0%vol(can be adjusted in whole range)
|
|
|
H2S
|
|
Measurement range
|
(0～100)ppm
|
|
Measurement error
|
(0～50)ppm:±3ppm (50～100)ppm:true value±10%
|
|
Respond time
|
≤45S(T90)
|
|
Resolution
|
1ppm
|
|
Alarm point
|
10ppm(can be adjusted in whole range)
|
|
Alarm sound intensity
|
80dB
|
|
Alarm way
|
Sound,light alarm
|
|
Alarm indicator light
|
can be visible in the distance of not less 20m
|
|
Sensor life
|
≥2 years(CO,O2,H2S) ≥1 years(LEL,CH4)
|
|
Working current
|
95mA
|
|
Continuous operating hours
|
≥12 hours
|
|
Battery item
|
Pl123450 3.7V/1500mA
|
|
Battery short circuit current
|
2A
|
|
Charging time
|
4-5 hours
|
|
Protection level
|
IP54
|
|
Working temperature
|
-25℃～55℃;short time for -40℃～55℃
|
|
Size
|
130*66*30mm
|
Application
This SANH3 gas detector is applied to underground coal mine,petrochemical industry, municipal, environmental protection and other spaces where multi gas may exist.This single gas monitor can be used for detecting methane(CH4) or combustible gas(LEL),oxygen(O2),carbon monoxide(CO) and hydrogen sulfide(H2S) gases.When the concentration of any gas in the environment is higher or lower than that of set alarm point,this device with send out both sound and light alarms to warn users who wears it to take protective actions.This device is portable and can be also used as a fixed device connected with air pump.
Packing & Delivery
Poultry animal farm electrochemical sensor 0-1000ppm gas analyzers portable NH3 ammonia multi gas meter detectors
Those NH3 gas detector and accessories will be packed into carton box before shipping.
Poultry animal farm electrochemical sensor 0-1000ppm gas analyzers portable NH3 ammonia multi gas meter detectors
The packing listing of NH3 gas detector are below:
1.Ammonia NH3 gas detector*1
2.Calibration cap&Tube
3.USB cable wire&adapter
4.Leather bag
5.Manual instruction
