Quick Details
-
Jacket:
-
Rubber
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
RNEDA
-
Model Number:
-
soow sjoow sow so sjo
-
Size:
-
14-6awg
-
Product name:
-
OOW SJOOW SJO SJ SJW SJOW SOW
-
Certificate:
-
UL
-
Temperature Range:
-
Temperature of 90C in wet and dry locations
-
Standard:
-
UL62 MSHA
-
Rated voltage:
-
300v 600V
Quick Details
-
Insulation Material:
-
Rubber
-
Application:
-
power cord
-
Conductor Material:
-
Copper
-
Jacket:
-
Rubber
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
RNEDA
-
Model Number:
-
soow sjoow sow so sjo
-
Size:
-
14-6awg
-
Product name:
-
OOW SJOOW SJO SJ SJW SJOW SOW
-
Certificate:
-
UL
-
Temperature Range:
-
Temperature of 90C in wet and dry locations
-
Standard:
-
UL62 MSHA
-
Rated voltage:
-
300v 600V

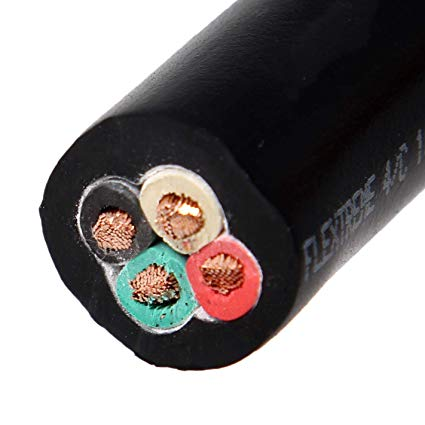

UL62 SOOW Flexible Rubber Cable 90℃ FT2
Portable cords are also rated as heavy duty, medium duty and light duty. These designations are given based on the jacket used on the cord. All four types (SJ cable, SJO cable, SJOW cable; and SJOOW cable) are considered heavy duty, due to their thermoset rubber jackets. Portable cord with thermoplastic elastomer jackets are considered medium duty and those with thermoplastic jackets are designated as light duty.Also can tell what type of jacket the cord has by reading the letters as well. A thermoplastic elastomer jacket will have the letter "E", usually after the "S" or "SJ" depending on the service type. A thermoplastic jacket will have a"T" instead of an "E" in the same spot. The absence of an "E" or a "T" means it has a thermoset rubber jacket.
The letter meaning:
S-Service
J-Junior 300v
O- oil resistant outer jacket
OO- oil resistant insulation and an oil resistant outer jacket
W-weather and water resistant
UL listed/ approved for indoor or outdoor use.
Structure
Reference Standard: UL62
Rated Voltage: 600V or 300V
Temperature: 65°C;75°C;90°C;105°C
Conductor:Copper or Tinned Copper
Insulation: EPDM/EPR
Sheath: CPE/Neoprene
