Quick Details
-
Weight (KG):
-
300
-
Voltage:
-
220V/110V, 50Hz, 60Hz
-
Place of Origin:
-
China
-
Dimension(L*W*H):
-
2040*1800*2140mm
-
Item Name:
-
Ultrasonic Desiccant Packing machine
-
Bag type:
-
pillow bag style or side sealing bag
-
Usage:
-
Packing desiccant
-
Keyword:
-
ultrasonic desiccant packing machine
-
Packing speed:
-
20-30 bags/min
-
Packing film material:
-
non-woven fabric
-
Machine type:
-
Automatic Bag Forming Filling Sealing Machine
-
Machine material:
-
Stanless Steel
-
After Warranty Service:
-
Video technical support
Quick Details
-
Function:
-
FILLING, Wrapping, Labeling, Laminating, COATING, Sealing, Embossing, SLITTING
-
Packaging Type:
-
Stand-up Pouch, Bags, Film, Foil, Pouch
-
Packaging Material:
-
Plastic, Paper
-
Weight (KG):
-
300
-
Voltage:
-
220V/110V, 50Hz, 60Hz
-
Place of Origin:
-
China
-
Dimension(L*W*H):
-
2040*1800*2140mm
-
Item Name:
-
Ultrasonic Desiccant Packing machine
-
Bag type:
-
pillow bag style or side sealing bag
-
Usage:
-
Packing desiccant
-
Keyword:
-
ultrasonic desiccant packing machine
-
Packing speed:
-
20-30 bags/min
-
Packing film material:
-
non-woven fabric
-
Machine type:
-
Automatic Bag Forming Filling Sealing Machine
-
Machine material:
-
Stanless Steel
-
After Warranty Service:
-
Video technical support
Products Description

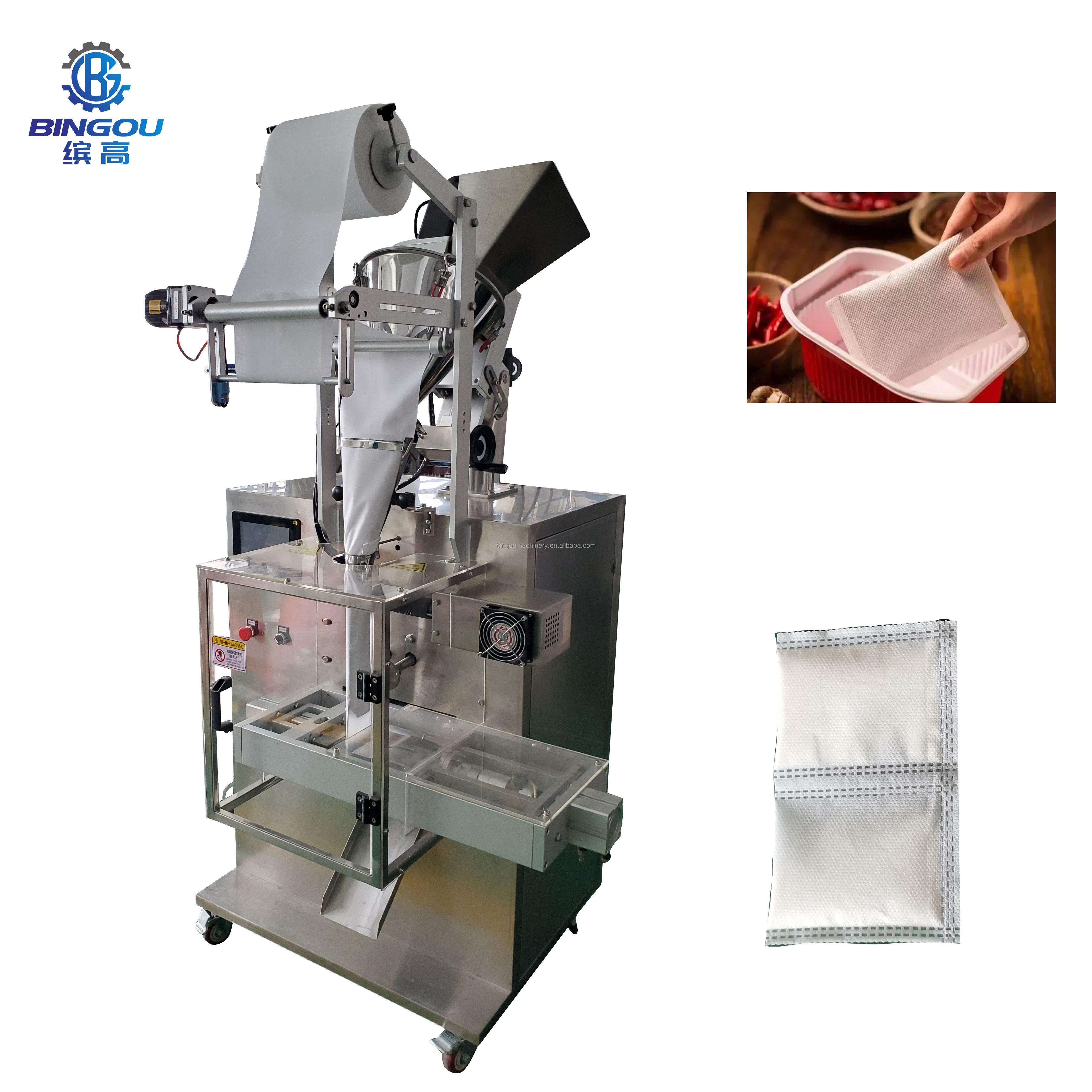

Automatic Ultrasonic Packing Machine
This machine is suitable for packing powder or small granule products into non-woven fabric bags, such as medical powder, activated charcoal, desiccant, heating bag powder, etc.
Application
desiccant
activated charcoal
Medical Powder
Sample Bags
Product Paramenters
|
Item
|
Automatic Ultrasonic packing machine
|
|
Model
|
BG-240CSB
|
|
Sealing Method
|
Ultrasonic sealing
|
|
Filling System
|
auger
|
|
Packing Speed
|
20-40 bags/min
|
|
Film width
|
240mm maximum
|
|
Bag Size
|
L 20~400mm, W 70~120mm
|
|
Bag Type
|
back center sealed bags or side sealed bags
|
|
Cutting type
|
wave cutting or flat cutting
|
|
Power
|
220V 50HZ,1.5KW
|
|
weight
|
250 kg
|
|
Overall Denmensions
|
(L)1120×(W)970×(H)1800mm
|
Features:
1)
. Three servo system control, flexible bag length cutting, operator needn’t to adjust the unloading working, saving time and
saving films.
2. human-machine operation, convenient and quick parameter setting.
3. Self diagnosis failure function, clear failure display.
4. High sensitivity optical electric color mark tracking , digital input cut position which makes the sealing and cutting more
accurate.
5. Separate PID control to temperature, suitable for various packing materials.
6. Stopping the machine in selected position, no sticking to the knife and no waste packing film.
7. Simple driving system, reliable working, convenient maintenance.
8. .All the controls are achieved by software, convenient for function adjusting and upgrading.
saving films.
2. human-machine operation, convenient and quick parameter setting.
3. Self diagnosis failure function, clear failure display.
4. High sensitivity optical electric color mark tracking , digital input cut position which makes the sealing and cutting more
accurate.
5. Separate PID control to temperature, suitable for various packing materials.
6. Stopping the machine in selected position, no sticking to the knife and no waste packing film.
7. Simple driving system, reliable working, convenient maintenance.
8. .All the controls are achieved by software, convenient for function adjusting and upgrading.
