Quick Details
-
Power (kW):
-
2.2
-
Range of Spindle Speed(r.p.m):
-
4000 - 4200 r.p.m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Tianze
-
Voltage:
-
220v/50hz/1phase
-
Dimension(L*W*H):
-
480*520*1040mm
-
Weight (KG):
-
750 KG
-
Marketing Type:
-
New Product
-
Name:
-
fruit and vegetable powder grinder machine
-
Body material:
-
304SUS
-
Certification:
-
CE/ISO
Quick Details
-
Output (kg/h):
-
20 - 80 kg/h
-
Feeding Size (mm):
-
10 - 100 mm
-
Output Size (mesh):
-
10 - 100 mesh
-
Power (kW):
-
2.2
-
Range of Spindle Speed(r.p.m):
-
4000 - 4200 r.p.m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Tianze
-
Voltage:
-
220v/50hz/1phase
-
Dimension(L*W*H):
-
480*520*1040mm
-
Weight (KG):
-
750 KG
-
Marketing Type:
-
New Product
-
Name:
-
fruit and vegetable powder grinder machine
-
Body material:
-
304SUS
-
Certification:
-
CE/ISO
Description of Automatic Herbal Tea leaf grinding machine Grind Fineness 20-120Mesh
Shrimp shell powder machine is a new design product! Combined with the advantages of high-efficiency pulverizers, it can be widely used in ultra-fine pulverization of dry materials in many industries such as , pesticides, biology, cosmetics, food, feed, chemical, ceramics, etc. demand. Especially for the fiber brittle and other materials smashing effect is more perfect.
Working principle of Automatic Herbal Tea leaf grinding machine Grind Fineness 20-120Mesh
Shrimp shell powder machine consists of adding hopper, grading wheel, crushing blade, ring gear, crushing motor, discharge port, fan blade, collecting box, vacuum box, etc. The material enters the crushing chamber through the hopper. The high-speed rotating blade is pulverized, and the distance between the grading wheel and the grading plate is adjusted to achieve the required material fineness. The high-speed rotating blade leads the required material from the pulverizing chamber to the collecting box bag, and does not meet the required material. Continue to smash in the crushing chamber, the dust generated by the collecting box bag is collected by the dust box. The unit is designed according to the “ GMP ” standard. The structure is simple, the operation is easy to clean, the noise is small, the output is high, and the machine is made of high quality stainless steel. There is no dust flying during the pulverization process.
Data of Automatic Herbal Tea leaf grinding machine Grind Fineness 20-120Mesh
|
Model |
TZ- 180-4 |
TZ- 250-4 |
TZ- 320-4 |
TZ- 350-4 |
TZ- 400-4 |
|
Material |
304S.S |
304S.S |
304S.S |
304S.S |
304S.S |
|
Volt age(V) |
220/380 |
380 |
380 |
380 |
380 |
|
Power (kw) |
2.2 |
5.5 |
7.5 |
11 |
15 |
|
Speed ( r/min 0 |
4200 |
4200 |
4200 |
4200 |
4200 |
|
Fineness(mesh) |
10-120 |
10-120 |
10-120 |
10-120 |
10-120 |
|
Output(kg/h) |
10- 80 |
30-200 |
50-300 |
70-500 |
100-800 |
|
Dimension ( mm ) |
480 * 520 * 1040 |
750 * 600 * 1260 |
780 * 700 * 1350 |
800 * 900 * 1550 |
1450 * 1300 * 2000 |
|
Weight(kg) |
75 |
180 |
260 |
320 |
600 |

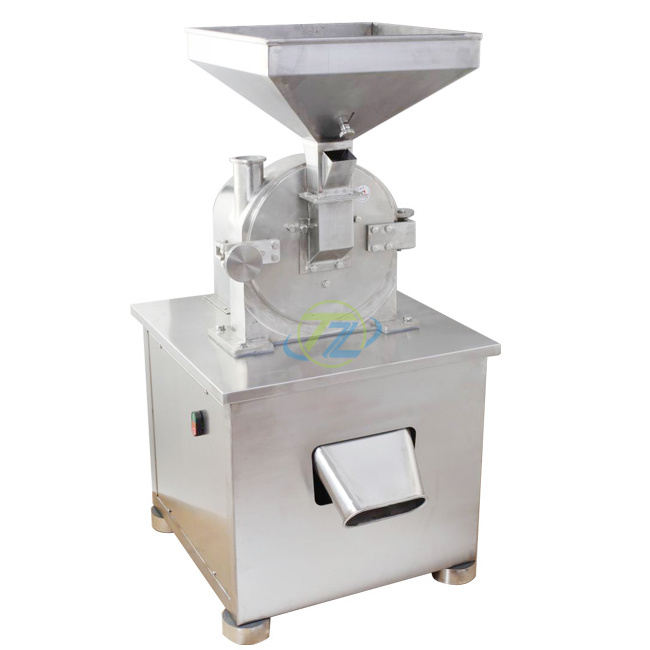

Pictures of Automatic Herbal Tea leaf grinding machine Grind Fineness 20-120Mesh
Inside parts of Automatic Herbal Tea leaf grinding machine Grind Fineness 20-120Mesh
Water cooling universal grinder
(It grinder more fine,also avoid too heat when grind difficult grind material,or need grind very fine material,water cooling helps decrease the temperature,to make sure grinder can work long time.)
If you have any question about our powder grinder machine, please tell us any time.
