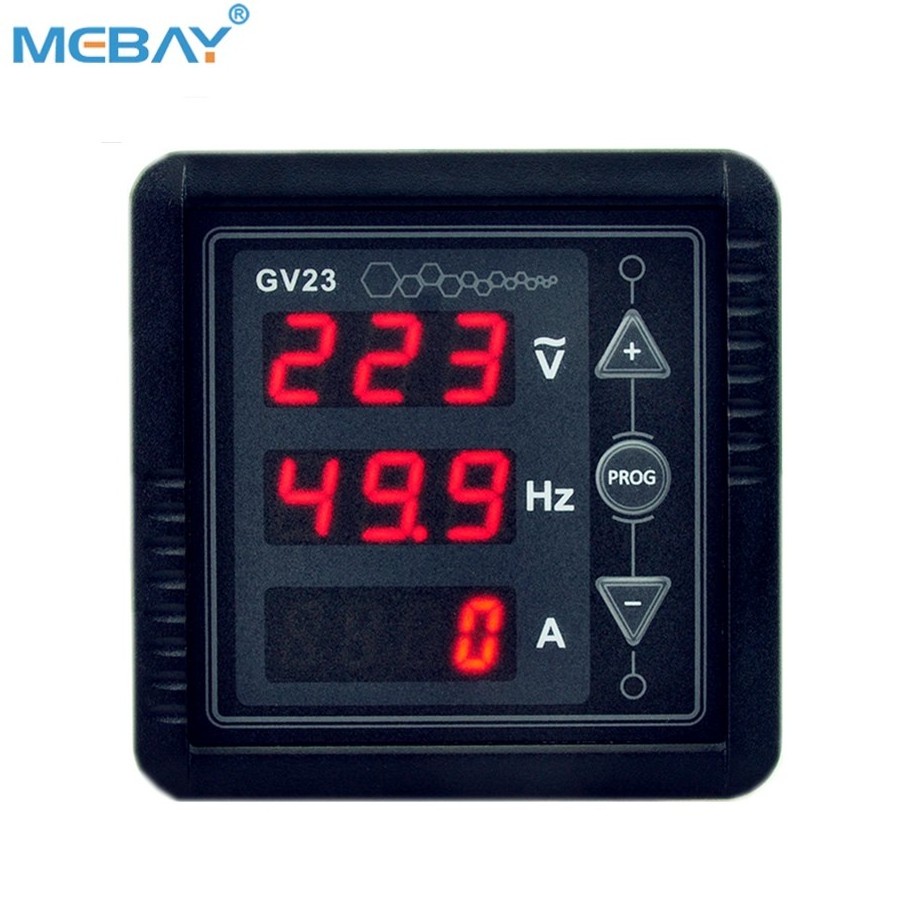

Mebay Panel Meter GV23 MKII AC Digital Frequency Amp Voltage Generator Meter

Mebay Panel Meter GV23 MKII AC Digital Frequency Amp Voltage Generator Meter

FOB Reference Price: Get Latest Price

≥5 Pieces

US $16.5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: MEBAY

Model Number:: GV23

Supply Voltage:: 85-440V

Operating Temperature:: -20-65 Celsius Degree

Dimensions:: 68mm * 68mm, 68mm * 68mm

Product:: Mebay Panel Meter GV23 MKII AC Digital Voltage Frequency Amp Meter

Output Voltage:: AC 165~275 V

Voltage:: AC 165~275 V

frequency range:: 40-70HZ

Installation size(W * H)::: 68mm * 68mm

Certificate:: CE

Usage:: LED Data Display

Phase:: ONE Phase

Stock:: YES

Quick Details

Measuring Range:: 0-999

Accuracy Class:: High Level

Place of Origin:: Chongqing, China

Brand Name:: MEBAY

Model Number:: GV23

Supply Voltage:: 85-440V

Operating Temperature:: -20-65 Celsius Degree

Dimensions:: 68mm * 68mm, 68mm * 68mm

Product:: Mebay Panel Meter GV23 MKII AC Digital Voltage Frequency Amp Meter

Output Voltage:: AC 165~275 V

Voltage:: AC 165~275 V

frequency range:: 40-70HZ

Installation size(W * H)::: 68mm * 68mm

Certificate:: CE

Usage:: LED Data Display

Phase:: ONE Phase

Stock:: YES

Products Description

Brief introduction

GV23 MKII is one updated version of GV23 meter for checking and displaying AC Voltage, Frequency, Current, Power, Power Factor and running time with light weight and low cost.It can replace traditional mechanical meter by digital display.

Parameters display

AC Voltage V

Frequency Hz

Current A

Features

IP54 protection level;

Voltage、 Frequency、Current checking and display

3-blanks LED Tube Display

CT Ratio can be set

Range and Accuracy

Voltage:

110V System: AC90～130V，deviation≤±1%；

220V System: AC165～265V，deviation≤±1%；

380V System: AC360-440V, deviation ≤±1%；

Frequency:

50Hz System: 45-60Hz，deviation≤±0.5%；

60Hz System: 55-65Hz，deviation≤±0.5%；

Current:

CT 5A： 5-6000A，deviation ≤±2.5%；

CT 50mA： 1-200A，deviation≤±2.5%；

Specification of GV23 MKII
Power supply	110V,220V system：AC85～265V，50/60Hz； 380V system：AC360～440V，50Hz
Consumption	MAX 1W
Operation temperature	-20℃～65℃
*Size(W H * D)**	78mm78mm63mm
*Cutout(W H)**	67mm*67mm
Protection level	IP54 (the front face after installation)
