Quick Details
-
Application:
-
Home Automation
-
Material:
-
ABS
-
Warranty:
-
2 Years
-
Voltage:
-
110-240V
Quick Details
-
Max. Voltage:
-
5a
-
Place of Origin:
-
Guangdong, China
-
Product name:
-

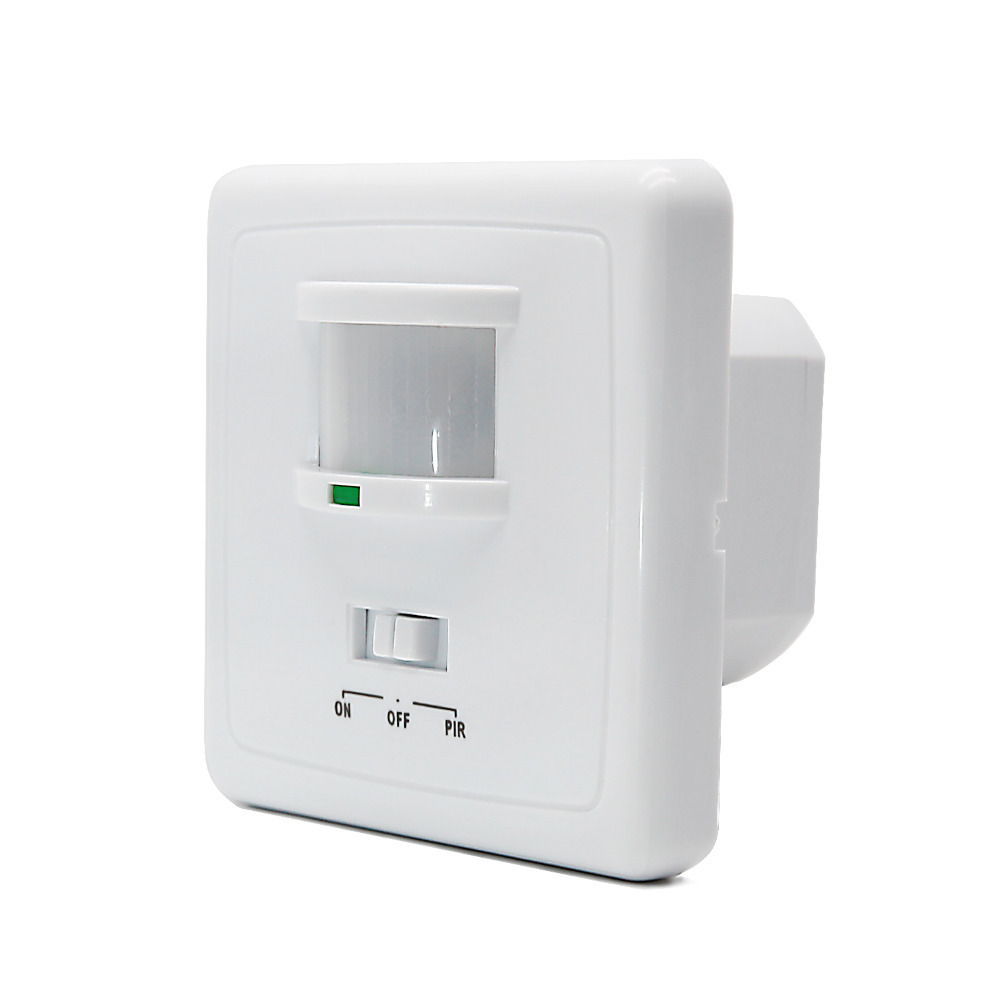

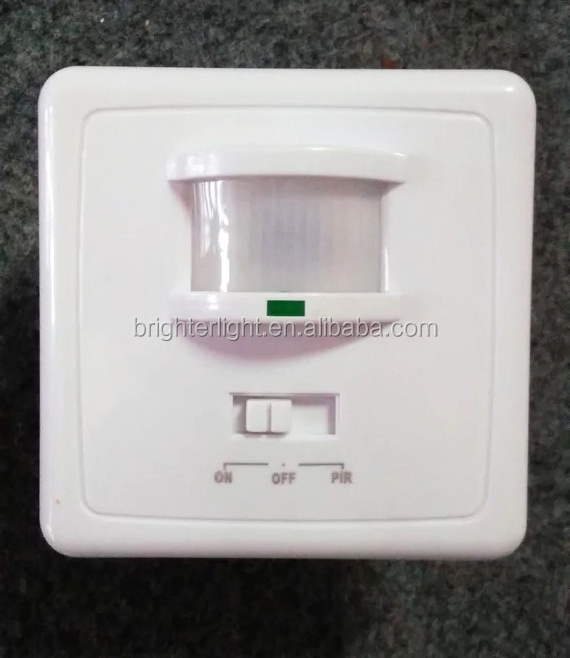

PIR Motion Sensor Switch
-
Application:
-
Home Automation
-
Material:
-
ABS
-
Warranty:
-
2 Years
-
Voltage:
-
110-240V
SPECIFICATION:
Power Source: 220 -240V/AC
Detection Range: 160°
Power Frequency: 50Hz
Working Temperature:-20~+40°C
Ambient Light:3-2000LUX(adjustable)
Working Humidity:<93%RH
Time-Delay : min:10sec±3sec Max:7min±2min
Installation Height: 1m-1.8m
Power Consumption:0.45W (work) 0.1W (static)
Rated Load: 600W (incandescent lamp) 200W(energy-saving lamp)
Detection Motion Speed: 0.6-1.5m/s
Detection Distance: 9m max(<24°C)
FUNCTIONS:
1.Can identify day and night: The consumer can adjust work ambient light. It can work in the daytime and at night when it is adjusted on the "sun" position (max). It can work in the ambient light less than 3LUX when it is adjusted on the "moon" position (min). As for the adjustment pattern, please refer to the testing pattern.
2.Time-delay is added continually: When it receives the second induction signals after the first induction, it will compute time once more on the rest of the first time-delay basic.(set time)
3.Time-delay adjustment: It can be set according to the consumer's desire. The minimum time is 10sec±3sec. The maximum is 7min±2min.

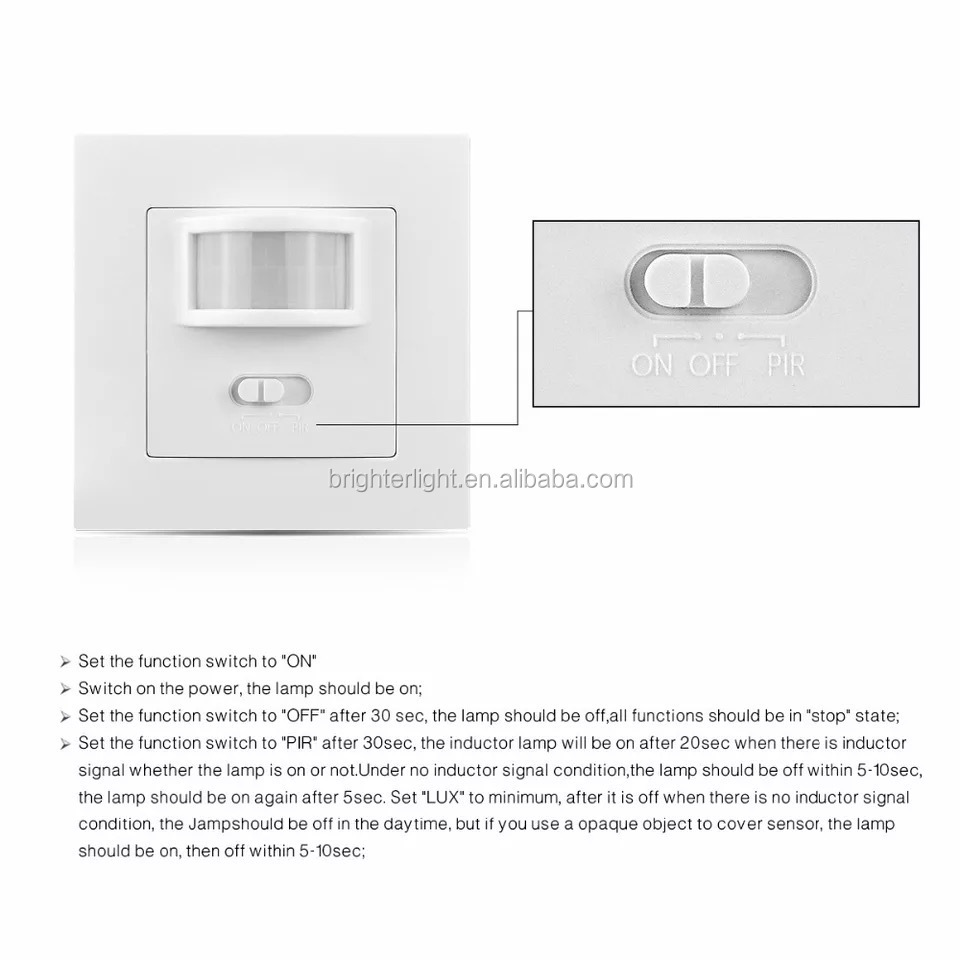

4.The switch: "ON","OFF","PIR".
Packing
Customer's Logo on packing and carton etc.
Delivery
Ship by DHL,FedEx,TNT etc.
LCL sea shipment or Full container loading.
We provide shipment consolidation service.
