Quick Details
-
Width of bed (mm):
-
150
-
Spindle Motor Power(kW):
-
0.55
-
Brand Name:
-
YCJIXIE
-
Model Number:
-
HQ400/3BN
-
Voltage:
-
110/220/380/400/440
-
Dimension(L*W*H):
-
1032X580X1000
-
Swing over bed:
-
420
-
Machine Type:
-
lathe milling machine
-
Product Name:
-
HQ400/3BN
-
Spindle hole:
-
20
-
Range of spindle speed:
-
160-1360
-
Worktable size:
-
200X150
-
Max. end mill:
-
20
-
Spindle travel:
-
85
-
Motor power:
-
0.55
-
Key word:
-
HQ400
Quick Details
-
Max. Length of Workpiece (mm):
-
400 mm
-
Machining Capacity:
-
Light Duty
-
Spindle Bore(mm):
-
20 m'm
-
Width of bed (mm):
-
150
-
Spindle Motor Power(kW):
-
0.55
-
Brand Name:
-
YCJIXIE
-
Model Number:
-
HQ400/3BN
-
Voltage:
-
110/220/380/400/440
-
Dimension(L*W*H):
-
1032X580X1000
-
Swing over bed:
-
420
-
Machine Type:
-
lathe milling machine
-
Product Name:
-
HQ400/3BN
-
Spindle hole:
-
20
-
Range of spindle speed:
-
160-1360
-
Worktable size:
-
200X150
-
Max. end mill:
-
20
-
Spindle travel:
-
85
-
Motor power:
-
0.55
-
Key word:
-
HQ400

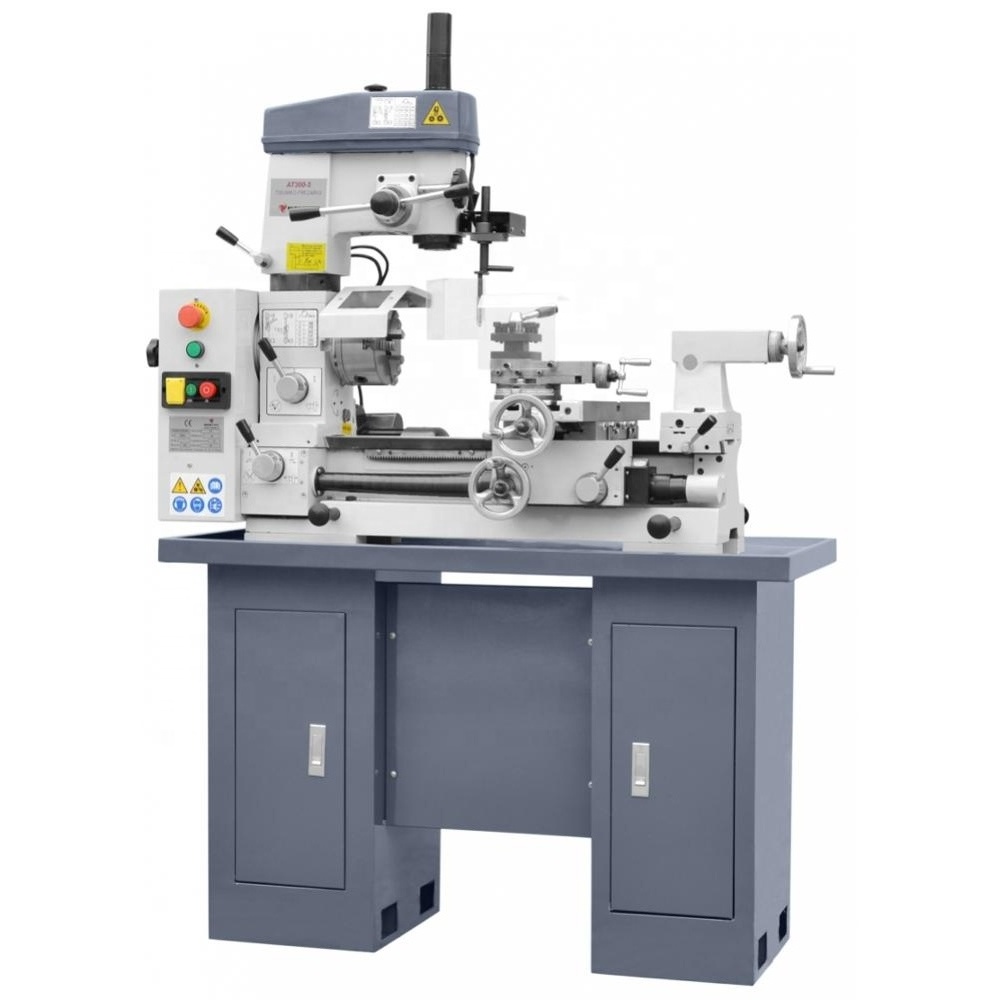

HQ400 Combination Lathe Milling Machine
Features:
1. Metric or imperial thread cutting
2. Suitable for processing metal, wood and other materials
3. Excellent advantage of various functions, small occupation and economization
4.Widely used in job-shops, car shops technical school, factories and family for machine parts
repairing and making, education training, household utensils'' Making, etc.
5. With Norton lever box to make more threading function
HQ400/3AN and HQ400/3BN with Norton lever gear box.
HQ400/3V with variable speed
|
Model |
HQ400/3AN |
HQ400/3BN |
HQ400/3V |
|
|
TURING |
Swing over bed |
420mm |
||
|
Distance between centers |
400mm |
|||
|
Max. longitudinal travel |
380mm |
|||
|
Max. cross travel |
120mm |
|||
|
Taper of spindle |
M.T.3 |
|||
|
Spindle hole |
20mm |
|||
|
Step of spindle speed |
7 |
7 |
Variable speed |
|
|
Range of spindle speed |
160-1360 r.p.m |
160-1360 r.p.m |
0-600rpm/600-1800rpm |
|
|
Barrel travel |
70mm |
|||
|
Barrel Taper |
M.T.3 |
|||
|
Metric thread range |
0.7-2mm |
|||
|
Inch thread range |
7-30T.P.L |
|||
|
Longitudinal range of automatic feeding |
0.088-0.28mm/r |
|||
|
Drilling & Milling |
Cross range of automatic feeding |
/ |
/ |
/ |
|
Max. drilling capacity |
15 mm |
|||
|
Worktable size (L*W) |
200*150 mm |
|||
|
Max. end mill |
20 mm |
|||
|
Max. face mill |
63 mm |
|||
|
Spindle travel |
85mm |
|||
|
Headstock travel of up and down |
80mm |
|||
|
Spindle taper |
M.T.3 |
|||
|
Step of spindle speed |
14 |
14 |
Variable speed |
|
|
Range of spindle speed |
117-1300r.p.m |
117-1300r.p.m |
0-660rpm/660-2030rpm |
|
|
Swivel angle of headstock |
±360° |
|||
|
Motor |
Motor power |
0.55kw |
0.55kw |
1.1kw |
|
Shipping data |
Packing size |
1032*580*1000mm |
||
|
N. weight/G. weight |
185kg/220kg |
|||
|
Loading amount |
44pcs/20container |
|||
