Quick Details
-
Brand Name:
-
ENERGYLUX OR OEM
-
Type:
-
ES-M09B Microwave Smart Motion Detector Radar Sensor Light Switch
-
Color:
-
White
-
Detection range:
-
2m/5m/8m/10m Available
-
Detection angle:
-
360°
-
Time setting:
-
10sec/1min/5min/10min/15min Available
-
Power source:
-
110-130V/AC OR 220-240V/AC OR 12V DC
-
Power frequency:
-
50HZ/60HZ
-
Rated load::
-
1200W incandscent lamp 300W LED
-
Ambient light:
-
5LUX/20LUX/50LUX/100LUX.DAY Available
-
HF System:
-
5.8GHZ CW radar, ISM band .
Quick Details
-
Usage:
-
Temperature Sensor
-
Model Number:
-
ES-M09B
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ENERGYLUX OR OEM
-
Type:
-
ES-M09B Microwave Smart Motion Detector Radar Sensor Light Switch
-
Color:
-
White
-
Detection range:
-
2m/5m/8m/10m Available
-
Detection angle:
-
360°
-
Time setting:
-
10sec/1min/5min/10min/15min Available
-
Power source:
-
110-130V/AC OR 220-240V/AC OR 12V DC
-
Power frequency:
-
50HZ/60HZ
-
Rated load::
-
1200W incandscent lamp 300W LED
-
Ambient light:
-
5LUX/20LUX/50LUX/100LUX.DAY Available
-
HF System:
-
5.8GHZ CW radar, ISM band .
Fearures
- Radar scanned signal can penetrate plastic, glass, ceiling, wooden door, and thin wall.
- It supports sensor distance and time delay setting, convenient to use
- Easy to install, suitable for LED lights, incandescent bulb, energy saving lamp. Great for closet, basement, laundry room, garage, bathroom, aisle and stairs.
- Recommended wall installation height 1.5-1.8m, ceiling installation height suggested 3-6m.

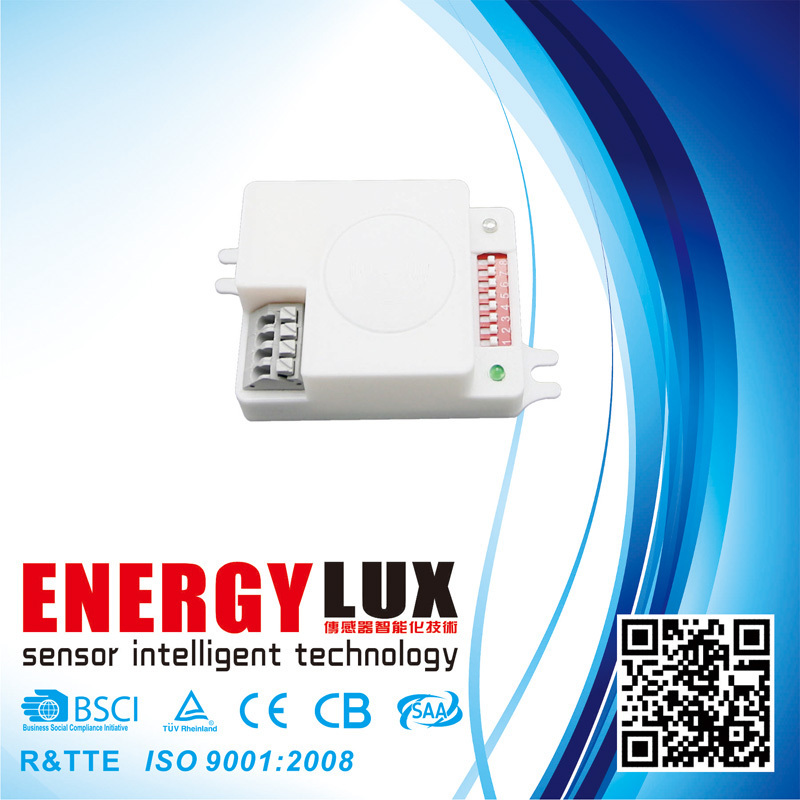

ES-M09B 360 degree Microwave Smart Motion Detector Radar Sensor Light Switch
The product is a new saving-energy switch; it adopts microwave sensor mould with high-frequency electro-magnetic wave (5.8GHz), integrated circuit. It gathers automatism, convenience, safety, saving-energy and practicality functions. The wide detection field is consisting of detectors. It works by receiving human motion. When one enters the detection field, it can start the load at once and identify automatically day and night. Its installation is very convenient and its using is very wide. Detection is possible through doors, panes of glass or thin walls.
SPECIFICATION
| MODEL | ES-M09B |
|
| DETECTION RANGE | 2m/5m/8m/10m Available | |
| DETECTION ANGLE | 360° | |
| POWER SOURCE |
110V-130V/AC 220-240V/AC |
|
| POWER FREQUENCY | 50/60HZ | |
| HF SYSTEM | 5.8GHz CW radar, ISM band | |
|
RATED LOAD
|
800W(110-130V/AC) 1200W(220-240V/AC) Incandescent lamp |
|
|
200W(110-130V/AC) 300W(220-240V/AC) Energy-saving lamp |
||
| TIME SETTING | 10sec/1min/5min/10min/15min Available | |
| WORKING HUMIDITY | <93%RH | |
| TRANSMISSION POWER | <10M/W | |
| AMBIENT LIGHT | 5LUX/20LUX/50LUX/100LUX.DAY Available |
