Quick Details
-
Power:
-
22kw
-
Dimension(L*W*H):
-
L4970W1600H2425(mm)
-
Weight:
-
9050kgs
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service
-
Dimension of M/C:
-
L4970W1600H2425(mm)
-
Color:
-
Any color
-
Capacity:
-
360kg/hour
-
Hot press rollers:
-
2 or 3
-
machine type:
-
non woven machinery
-
temperature:
-
300
-
Final products:
-
hard felt
-
application:
-
mattress industry
-
Working width:
-
2000-4800mm
-
Certification:
-
CE Certificate
Quick Details
-
Voltage:
-
380V
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
RD
-
Power:
-
22kw
-
Dimension(L*W*H):
-
L4970W1600H2425(mm)
-
Weight:
-
9050kgs
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service
-
Dimension of M/C:
-
L4970W1600H2425(mm)
-
Color:
-
Any color
-
Capacity:
-
360kg/hour
-
Hot press rollers:
-
2 or 3
-
machine type:
-
non woven machinery
-
temperature:
-
300
-
Final products:
-
hard felt
-
application:
-
mattress industry
-
Working width:
-
2000-4800mm
-
Certification:
-
CE Certificate

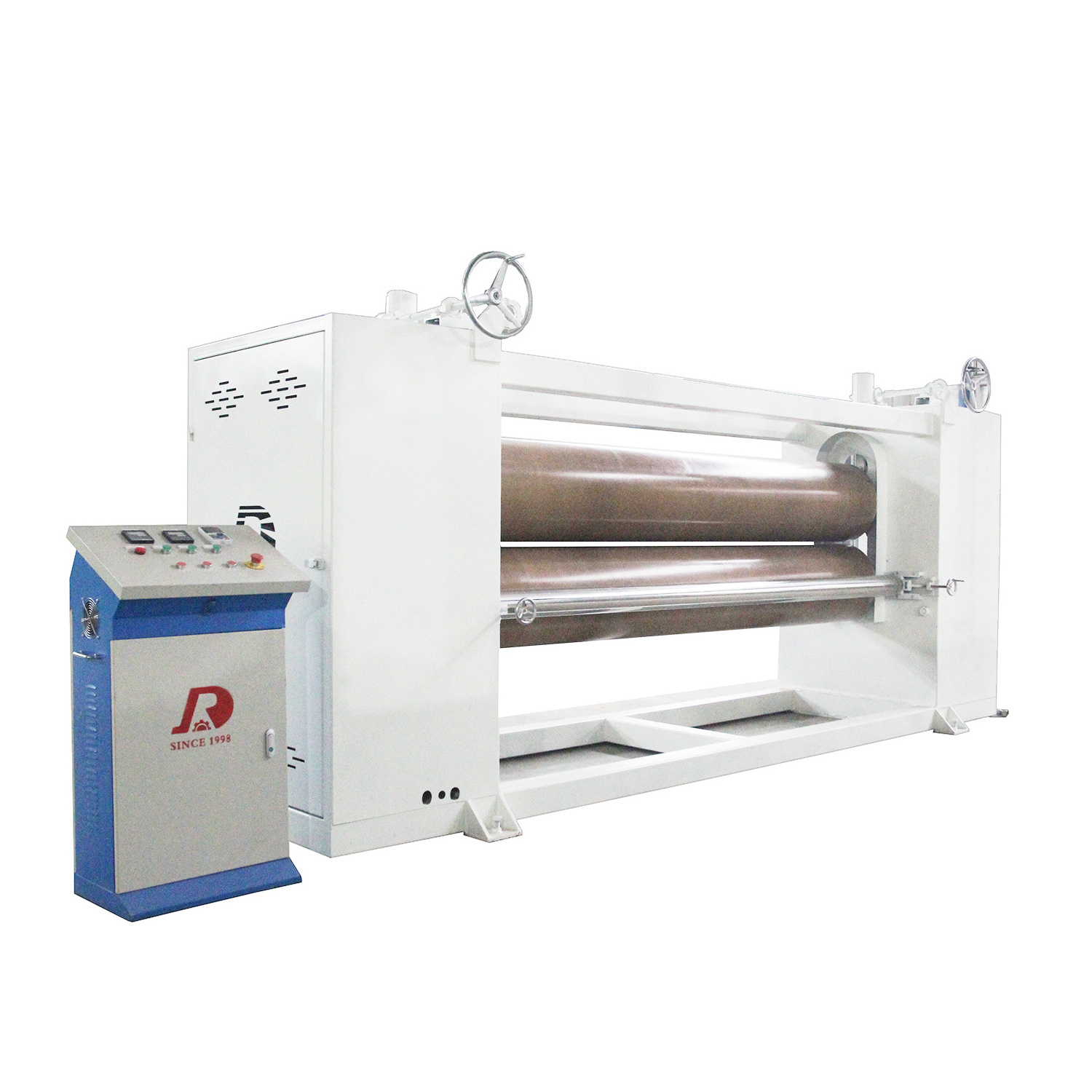

Heating roller machine
Heating roller machine / calander machine for non woven production line
Product Description
|
NO . |
ITEM |
DESCRIPTION |
|
1 |
Model |
GM Z -3 2 0/2
|
|
2 |
Dimension of M/C |
L 38 00W1400H2025 |
|
3 |
Weight |
67 00 kgs |
|
4 |
No of heating roller |
2 sets |
|
5 |
Heating roller |
Φ 37 0mm×L 32 00 |
|
6 |
Temperature of working face |
≤220℃ |
|
7 |
Running speed |
≤8m/min |
|
8 |
Working width |
2.6m |
|
9 |
Structural features |
1: Two -roll vertical, electric heat conduction oil heating insulation. The main body frame is made of high quality carbon steel welded together 2: At the bottom of the roller is adjustable, in the middle of the roller is fixed, the upper roller manual worm gear to adjust elevator, the adjusting range is 0 to 50mm |
|
10 |
Heating roller |
Φ 37 0mm ; Material of 45 # steel, wall thickness, 30 mm r oller surface 2800 mm long, fine grinding hard chrome plated surface or tetrafluoroethylene adhesion. Adjustable surface temperature of 100 ~ 220 ℃ |
|
11 |
Running drive |
3 kw - 6 type motor with 120/50:1 worm gear reducer |
1.We have After-sale department,every client can get a timely feedback when they have any trouble about our machine.
2. We have installation team,if you need,we will provide installation service.
3. Our equipment warranty period is 1 years,within this time,we will provide free maintenance.
4.I f you have any other question or demand,please feel free to contact our businessmen,they will reply you within 8 hours.
