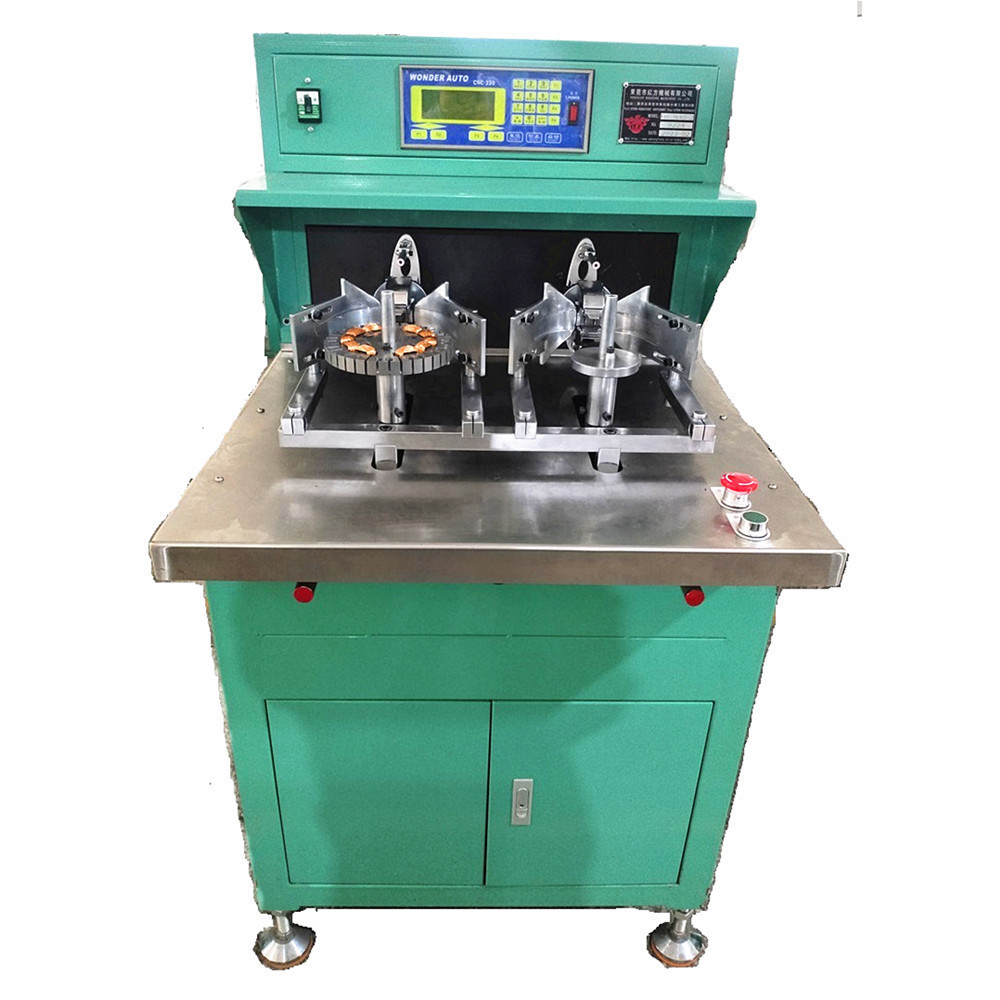

Automatic fan coil winding machine for electric motors

Automatic fan coil winding machine for electric motors

FOB Reference Price: Get Latest Price

≥1 Sets

US $8000

≥5 Sets

US $7600

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Marketing Type:: ceiling fan winding machine

Product name:: ceiling fan winding machine

Function:: ceiling fan winding

Feature:: Fan

Usage:: Motor or stator coil winding

Color:: green/white or custom color

Voltage:: Single phase 220V

Size:: L1000*W1640*H1480

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: HF

Weight (KG):: 650

Marketing Type:: ceiling fan winding machine

Product name:: ceiling fan winding machine

Function:: ceiling fan winding

Feature:: Fan

Usage:: Motor or stator coil winding

Color:: green/white or custom color

Voltage:: Single phase 220V

Size:: L1000*W1640*H1480

Product Description

Product Application

This machine is mainly use for ceiling fan stator coil winding purpose . it automatic winding wire , turn corner , move in and out .and also it can winding some big size wire , quality stable , it can save 7-15% copper .

SPECIFICATIONS FOR AUTOMATIC CEILING FAN WINDING MACHINE
_model	_HF-R40-2C	_speed	_{0-3000 RPM}
_{work station}	_{2 station}	_voltage	_{single phase 220 V}
_{wire range}	_{0.12-0.4 mm}	_weight	_{350 kgs}
_{max stator OD}	_{200 mm}	_{machine dimension}	_{1300x800x1400 mm (LxWxH)}
_{stator height}	_{8-45 mm}

Main Features

1. CNC controller control system , easy for programme setting , performance stable .

2. 2 nos winding head , it can winding 2 stators at same time .

3. wire guider use 3 phase motor and VFD contorl , fast seppd , stable . turn corner use big power drive and stepper motor control , more accurate .

Our Company

Company Introduction

HONG FANG MACHINERY CO.,LTD Established in 2008. It is a a professional Motor machine manufacturer with 12 years's experience. Our main products :coil winding machine .....coil inserting machine ...coil lacing machine....coil forming machine .......shaft inserting machine....rotor rough turning machine....rotor fine turning machine ,etc. We can supply AC/DC motor shaft....fan motor shaft....bush bearing ,etc.We would like to supply high-class products and satisfy every customer's needs.

Certifications

Our Service

1.12months guarantee of the whole machine,we will provide the consumable parts at an agency price when you need replacement .

2.English manual and CD video for machine using and maintaining will send you with the machine.

a.Hardware :1year on all parts and labor.

b.Software:Whole life on update for free.

c.Maintenance and technology support:whole life.

3.Our engineer could service you 24 hours online by Skype,YAHOO,MSN,QQ,WEIXIN,or cellphone, on weekend even on vacation

4.Our engineer could support you technology to your country if necessary.

Our engineer supplied technology support in our customers' factory.

Our engineer has gone to many countries for our customers to supply technology support.
