Quick Details
-
Model Number:
-
solar pump
-
Application:
-
pumping
-
Material:
-
Stainless Steel 304
-
Horsepower:
-
Solar/Mains Power/Generator
-
Voltage:
-
110v/220v/380v
-
Product Name:
-
Solar deep well pump
-
Pump Size:
-
4-10inch
-
Usage:
-
Water
-
Frequency:
-
50 /60 Hz
-
Inverter type:
-
MPPT
-
Fuel:
-
Solar Power
-
Powered By:
-
Solar/Mains Power/Generator
-
Certification:
-
ISO9001 ISO14001 CE
Quick Details
-
Warranty:
-
2years
-
Place of Origin:
-
China
-
Brand Name:
-
null
-
Model Number:
-
solar pump
-
Application:
-
pumping
-
Material:
-
Stainless Steel 304
-
Horsepower:
-
Solar/Mains Power/Generator
-
Voltage:
-
110v/220v/380v
-
Product Name:
-
Solar deep well pump
-
Pump Size:
-
4-10inch
-
Usage:
-
Water
-
Frequency:
-
50 /60 Hz
-
Inverter type:
-
MPPT
-
Fuel:
-
Solar Power
-
Powered By:
-
Solar/Mains Power/Generator
-
Certification:
-
ISO9001 ISO14001 CE
Solar Power Submersible Deep Well Water Pump
for Agriculture Irrigation System
As a professional manufacturer of solar pump system solutions and solar pump inverters, SINCR provides practical, professional and reliable AC and DC solar pump systems for agricultural irrigation and industrial applications.

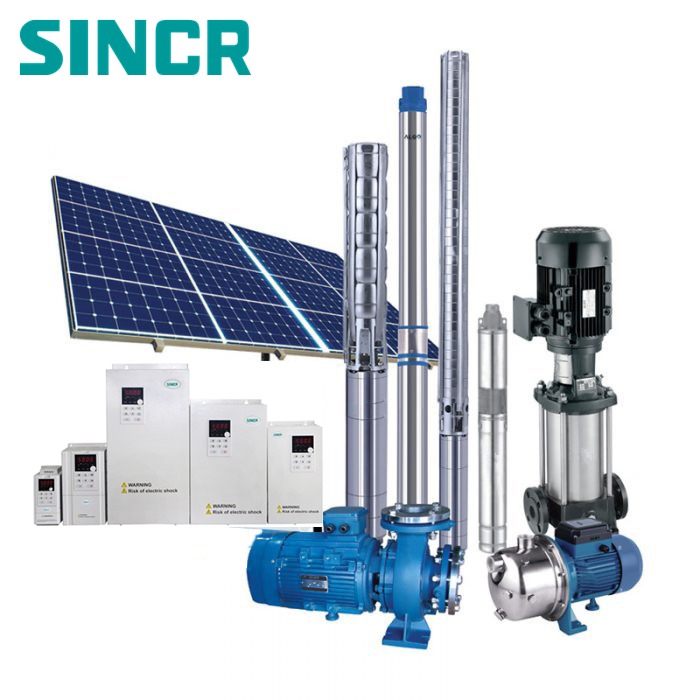

SINCR solar pump system consists mainly of solar panels, solar pump inverters and solar water pumps.
In the solar water pump system, water pump is very important, because it affects the economy and stability of the entire system. The submersible pump is the most commonly used in solar pump system, it has a wide range of applications and a wide range of speed adjustment.
Using with inverters can increase the daily working hours and water output of the system. Users with low head and large flow can choose multi-stage impeller submersible pumps; users with high head and small flow can choose submersible screw pumps.
| The Product Specification | ||||
| Model No. | 4SP2-06 | 4SP3-12 | 4SP5-12 | 4SP8-10 |
| Power | 0.5HP/0.37KW | 1HP/0.75KW | 1.5HP/1.1KW | 2HP/1.5KW |
| Water Head | 37-2m | 74-9m | 76-25m | 62-19m |
| Hourly Water Flow | 0-4.2m³ | 0-6m³ | 0-6.6m³ | 0-12m³ |
| Outlet Dia. | 4" | 4" | 4" | 4" |
|
Recommended
MPP Voltage |
250-350VDC | 250-350VDC | 250-350VDC | 250-350VDC |
| Model No. | 4SP14-07 | 5SP10-6* | 5SP15-07* | 5SP20-08 |
| Power | 3HP/2.2KW | 4HP/3KW | 3HP/4KW | 3HP/5.5KW |
| Water Head | 48-6m | 66-24m | 77-18m | 84-29m |
| Hourly Water Flow | 0-21m³ | 0-20m³ | 0-25m³ | 0-30m³ |
| Outlet Dia. | 4" | 5" | 5" | 5" |
|
Recommended
MPP Voltage |
500-700VDC | 500-700VDC | 500-700VDC | 500-700VDC |
| Model No. | 5SP25-10 | 5SP30-10 | 6SP17-18 | 6SP20-19 |
| Power | 10HP/7.5KW | 12.5HP/9.2KW | 15HP/11KW | 17.5HP/13KW |
| Water Head | 110-36m | 110-30m | 198-57m | 209-61m |
| Hourly Water Flow | 0-35m³ | 0-40m³ | 0-27m³ | 0-30m³ |
| Outlet Dia. | 5" | 5" | 6" | 6" |
|
Recommended
MPP Voltage |
500-700VDC | 500-700VDC | 500-700VDC | 500-700VDC |
| Model No. | 6SP30-16 | 6SP40-12 | 6SP46-14 | 6SP60-16 |
| Power | 20HP/15KW | 25HP/18.5KW | 30HP/22KW | 40HP/30KW |
| Water Head | 212-57m | 161-80m | 194-56m | 226-98m |
| Hourly Water Flow | 0-42m³ | 0-50m³ | 0-66m³ | 0-72m³ |
| Outlet Dia. | 6" | 6" | 6" | 6" |
|
Recommended
MPP Voltage |
500-700VDC | 500-700VDC | 500-700VDC | 500-700VDC |
Advantage of Solar Water Pump
1. VFD,MPPT solar pump inverter, the highest solar utilization rate.
2. Outdoor IP65 customization, good protection, long life and reliable operation.
3. Easy to install and easy to use.
4. Automatic run and stop, unattended.
5. High/low voltage protection, overcurrent/overload protection.
Applications
for pumping clean water, for domestic, civil and industrial applications, including for water supply, irrigation, washdown systems and pressure boosting.
Why Choose us?
♦ Good product quality
♦ Excellent pre-sale and after-sales program customization
♦ 24 hours technical support
Sincr are not just factory, but also service providers to solve problems. From providing solutions to production to installation of solar pump inverter system, we use professional expertise to prove our strength.
