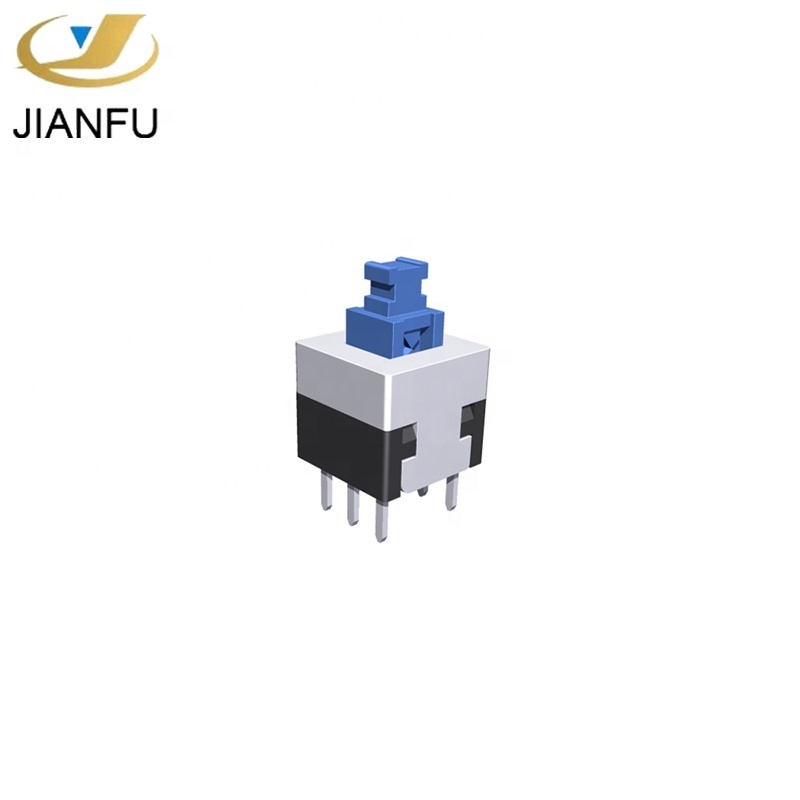

Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Certification:
-
ISO9001, ISO14001, RoHS
-
Function:
-
Lock/Non-Lock
-
Button color:
-
Blue
-
Head shape:
-
Rectangular
-
Terminal Type:
-
DPDT
-
Application:
-
Flashlight/Torch
-
Application3:
-
Toy
-
Application4:
-
low current circuit push switch for electronic equipment
-
Operation type:
-
Vertical Push
-
Size:
-
8X8
Quick Details
-
Protection Level:
-
IP50
-
Max. Current:
-
0.1A
-
Max. Voltage:
-
30V DC
-
Place of Origin:
-
Zhejiang, China
-
Certification:
-
ISO9001, ISO14001, RoHS
-
Function:
-
Lock/Non-Lock
-
Button color:
-
Blue
-
Head shape:
-
Rectangular
-
Terminal Type:
-
DPDT
-
Application:
-
Flashlight/Torch
-
Application3:
-
Toy
-
Application4:
-
low current circuit push switch for electronic equipment
-
Operation type:
-
Vertical Push
-
Size:
-
8X8
Dimensions
PCB layout
Circuit diagram
| Specifications | |||||||||
| CONTACT RATING: | 30 VDC @ 0.1A(with resistance and inductance) | ||||||||
| ELECTRICAL LIFE: | 10,000 cycles minimum | ||||||||
| CONTACT RESISTANCE: | 50 m Ω max | ||||||||
| INSULATION RESISTANCE: | 100 M Ω min. | ||||||||
| OPERATING FORCE: | 200±50gf | ||||||||
| OPERATING TEMPERATURE: | -20ºC to +80ºC | ||||||||
| Manual soldering: | 350℃±10℃ for 3 seconds maximum | ||||||||
| Features/Benefits | Typical Applications | ||||||||
| low current circuit push switch for electronic equipment | |||||||||
Q1.Are you a factory or trading company?
A1.We are a manufacturer which specializes in switch for 17 years, Our price is pretty competitive.
Q2.How does your factory do regarding quality control?
A2.Our Quality control Department is extremely responsible for quality checking from all raw material to the finished goods in each process with professional machines and testers .
Q3.When can I get the price?
A3.Usually we quote within 24 hours after we get your inquiry.
Q4.Can you provide some samples for me?
A4.We can provide free samples to you,but you should afford the shipping fee yourself.
Q5.What is the price of shipping?
A5.Depending upon the port of delivery, price varies.
Q6.Do you accept small orders?
A6.Of course.We will do our best to serve you no matter what the quantity is.
