Quick Details
-
Model Number:
-
FYCX-MK/FYCX-RT/FYCX-SS/FYCX-CM
-
Warranty:
-
2years
-
Type:
-
Cabinet Sensor Switch
-
Sensing Range:
-
5-10CM/1-3M
-
Product name:
-

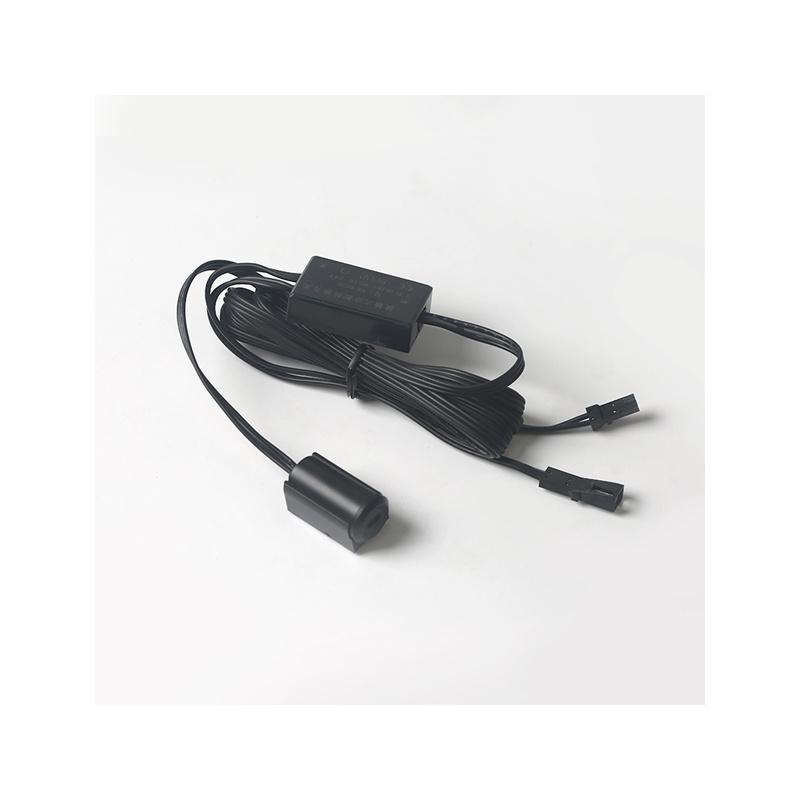

Cabinet magnetic sensor switch
-
Input voltage:
-
DC12V/24V
-
Size:
-
26*16*16MM
-
Function:
-
On/Off + Dimming
-
Detection distance:
-
5-8CM/1-3CM
-
Cut of size:
-
13/14MM
-
Light type:
-
Hard on/off
-
Warranty period:
-
2years
-
Application:
-
Cabinet Light
Quick Details
-
Voltage:
-
12V/24V
-
Place of Origin:
-
GUA
-
Brand Name:
-
FIGLUX
-
Model Number:
-
FYCX-MK/FYCX-RT/FYCX-SS/FYCX-CM
-
Warranty:
-
2years
-
Type:
-
Cabinet Sensor Switch
-
Sensing Range:
-
5-10CM/1-3M
-
Product name:
-
Cabinet magnetic sensor switch
-
Input voltage:
-
DC12V/24V
-
Size:
-
26*16*16MM
-
Function:
-
On/Off + Dimming
-
Detection distance:
-
5-8CM/1-3CM
-
Cut of size:
-
13/14MM
-
Light type:
-
Hard on/off
-
Warranty period:
-
2years
-
Application:
-
Cabinet Light
The smart touch dimmer control sensor switch
is used to turn on / off
12V
LED lamps with power up to
60W
.
The switch is installed
on a hidden surface made of dielectric materials (chipboard, fiberboard, plexiglass,marble etc.), for example, kitchen
countertops, a decorative / protective backsplash in the kitchen, the wall of a wardrobe, etc. The place of touch on the visible
side of the surface, on the back of which the switch is installed, is marked with an icon - a sticker indicating the location of
the contact pad of the touch switch,by touching which you can control the on / off of the light.
The switch ( FYCX) is equipped with a Hard ON / OFF function
on a hidden surface made of dielectric materials (chipboard, fiberboard, plexiglass,marble etc.), for example, kitchen
countertops, a decorative / protective backsplash in the kitchen, the wall of a wardrobe, etc. The place of touch on the visible
side of the surface, on the back of which the switch is installed, is marked with an icon - a sticker indicating the location of
the contact pad of the touch switch,by touching which you can control the on / off of the light.
The switch ( FYCX) is equipped with a Hard ON / OFF function
|
Product Name
|
Cabinet magnetic sensor switch
|
|
Seismic Conduction Switch
|
|
|||
|
Model No.
|
FYCX-MK
|
FYCX-RT
|
FYCX-SS
|
FYCX-CM
|
|||
|
Function
|
On/Off（Door control）
|
On/Off（30 seconds）
|
ΦOn/Off+Dimming
|
On/Off+Dimming
|
|||
|
Workgin Voltage
|
DC12V/24V
|
|
12V/24VDC
|
|
|||
|
Cut of size
|
Φ13mm
|
Φ14mm
|
Φ13mm
|
Φ14mm
|
|||
|
Detection distance
|
5-10cm
|
1-3m
|
5-10cm
|
0cm
|
|||
|
Dimension
|
26*26*26mm
|
26*17*17mm
|
26*16*16mm
|
26*17*17mm
|
|||
|
Induction method
|
Door sensing
|
Body sensing
|
Hand sweep sensing
|
Touch sensing
|
|||
|
Application
|
wardrobe light, cabinet light, bookcase light, wine cabinet light, showcase light, LED strip light
|
|
|
|
|||
