Quick Details
-
IP Rating:
-
IP54
-
Beam Angle(°):
-
90
-
CRI (Ra>):
-
90
-
Lamp Luminous Flux(lm):
-
1430
-
Working Lifetime(Hour):
-
60000
-
Working Temperature(℃):
-
0-40
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
AOI-200-RGB
-
Brand Name:
-
KOMA / HIFLY
-
Lifespan (hours):
-
60000
-
Working Time (hours):
-
60000
-
Category:
-
AOI Vision Lighting
-
New Feature:
-
Uniformity Diffuser
-
Luminous Area:
-
72 / 200 mm (Inlet Dia / Outlet Dia)
-
Material:
-
Aluminum Alloy + LED Beads
-
Certification:
-
RoHS, CE
Quick Details
-
Color Temperature(CCT):
-
6000K (Daylight Alert)
-
Warranty(Year):
-
1-Year
-
Power Supply:
-
DC
-
IP Rating:
-
IP54
-
Beam Angle(°):
-
90
-
CRI (Ra>):
-
90
-
Lamp Luminous Flux(lm):
-
1430
-
Working Lifetime(Hour):
-
60000
-
Working Temperature(℃):
-
0-40
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
AOI-200-RGB
-
Brand Name:
-
KOMA / HIFLY
-
Lifespan (hours):
-
60000
-
Working Time (hours):
-
60000
-
Category:
-
AOI Vision Lighting
-
New Feature:
-
Uniformity Diffuser
-
Luminous Area:
-
72 / 200 mm (Inlet Dia / Outlet Dia)
-
Material:
-
Aluminum Alloy + LED Beads
-
Certification:
-
RoHS, CE
Product Description
100% brand new and high quality.
●
High quality material--Aluminum alloy:

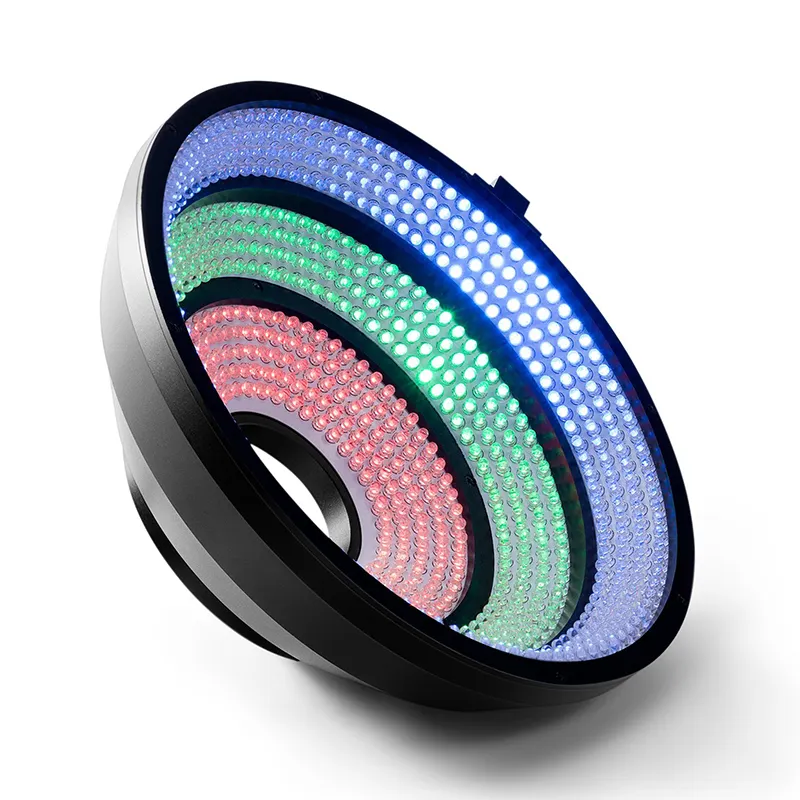

This assures a long lifespan, good performance and duration. AOI machine vision illumination series consists of multi-angle, multi-color and high-density LED particle array, which reflects the size and slope of different surfaces at different angles.
●
The highly uniform AOI light is composed of evenly distributed LED luminescence units, light emits from the arc surface and is perfectly concentrated. The angles of red/green/blue/ white color LED beads can be customized, and beads of each color can be controlled seperately. Power and Size etc. are fully customizable. The light intensity of this removable HIFLY AOI LED light can be controlled by extra connected light brightness controller/dimmer.
|
Light source color
(wavelength)
|
White (color temperature):
6000-7500K
|
Red: 620nm-630nm
|
|
|
|
Green: 520nm-530nm
|
Blue:460nm-470nm
|
|
|
Using environment(indoor)
|
temperature:
0℃-40℃
|
Humidity:
20%-85%RH (non-condensing)
|
|
|
Lifespan
|
60,000 hours for white and 50,000 hours for red
(theoretical reference)
|
|
|
|
After-sales service
|
One-year warranty and Lifetime technical support
|
|
|
|
Optional items or accessories
(Charged)
|
Offering custom design and development services if needed
|
|
|
Specification
Features:
● Multi-angle 4-color high density LED array shows 3D information of solder joint in multiple directions.
● Multiple emitting angle combined and customizable (will provide a better effect when working with a coaxial light).
● Different transmission rate diffuser plate are optional to reduce the reflection on the surface of the target object and increase the uniformity of light.
● Adopted wave-soldering technology, easy installation, compact design.
● Multiple emitting angle combined and customizable (will provide a better effect when working with a coaxial light).
● Different transmission rate diffuser plate are optional to reduce the reflection on the surface of the target object and increase the uniformity of light.
● Adopted wave-soldering technology, easy installation, compact design.
AOI Light Series (Else models)
|
Model
|
Inlet/Outlet Dia (mm)
|
Input Voltage
|
Power (W)
|
|
|
|
Weight (Kg)
|
|||
|
|
|
|
R
●
|
G
●
|
B
●
|
W
●
|
|
|||
|
AOI-120-RGB
|
Φ28/Φ123.3
|
24V DC
|
3
|
7
|
8
|
|
0.6
|
|||
|
AOI-150-RGB
|
Φ36/Φ150
|
24V DC
|
4
|
9
|
12
|
|
0.75
|
|||
|
AOI-180-RGB
|
Φ72/Φ180
|
24V DC
|
6
|
11
|
16
|
|
1.0
|
|||
|
AOI-200-RGB
|
Φ72/Φ200
|
24V DC
|
8
|
13
|
11
|
11
|
1.25
|
|||
|
AOI-250-RGB
|
Φ80/Φ254
|
24V DC
|
10
|
16
|
16
|
16
|
1.7
|
|||
Application
Main Applications:
● PCB soldering inspection (applied to inspecting missing/ wrong/inclined parts, and other defects in PCB industry).
● Surface defects inspection for multiple layers.
● Inspect the welding quality of the electronic components, including screen printing characters, presence and absence of components, false / insufficient / missing / excessive / continuous welding, welding deviation, etc.
● Metal surface scratch inspection.
● Inspect the scratches, pits on the surfaces of high reflective objects.
● Inspect the surface defects of rubber ring products.
● Inspection the scratches and dirty of filter surfaces.
● Surface defects inspection for multiple layers.
● Inspect the welding quality of the electronic components, including screen printing characters, presence and absence of components, false / insufficient / missing / excessive / continuous welding, welding deviation, etc.
● Metal surface scratch inspection.
● Inspect the scratches, pits on the surfaces of high reflective objects.
● Inspect the surface defects of rubber ring products.
● Inspection the scratches and dirty of filter surfaces.
