Quick Details
-
Model Number:
-
TF-F40
-
Warranty:
-
12 Months
-
Product name:
-
four post car lift
-
Color:
-
red/blue/customized
-
Lifting capacity:
-
4000kgs
-
Lock release system:
-
manual unlock
-
First lifting height:
-
1500mm
-
Second lifting height:
-
450mm
-
Platform length:
-
4500mm
-
Platform width:
-
550mm
-
Overall width:
-
3260mm
-
Post height:
-
2016mm
Quick Details
-
Lifting Capacity:
-
4000kgs
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
TFAUTENF
-
Model Number:
-
TF-F40
-
Warranty:
-
12 Months
-
Product name:
-
four post car lift
-
Color:
-
red/blue/customized
-
Lifting capacity:
-
4000kgs
-
Lock release system:
-
manual unlock
-
First lifting height:
-
1500mm
-
Second lifting height:
-
450mm
-
Platform length:
-
4500mm
-
Platform width:
-
550mm
-
Overall width:
-
3260mm
-
Post height:
-
2016mm
Products Description

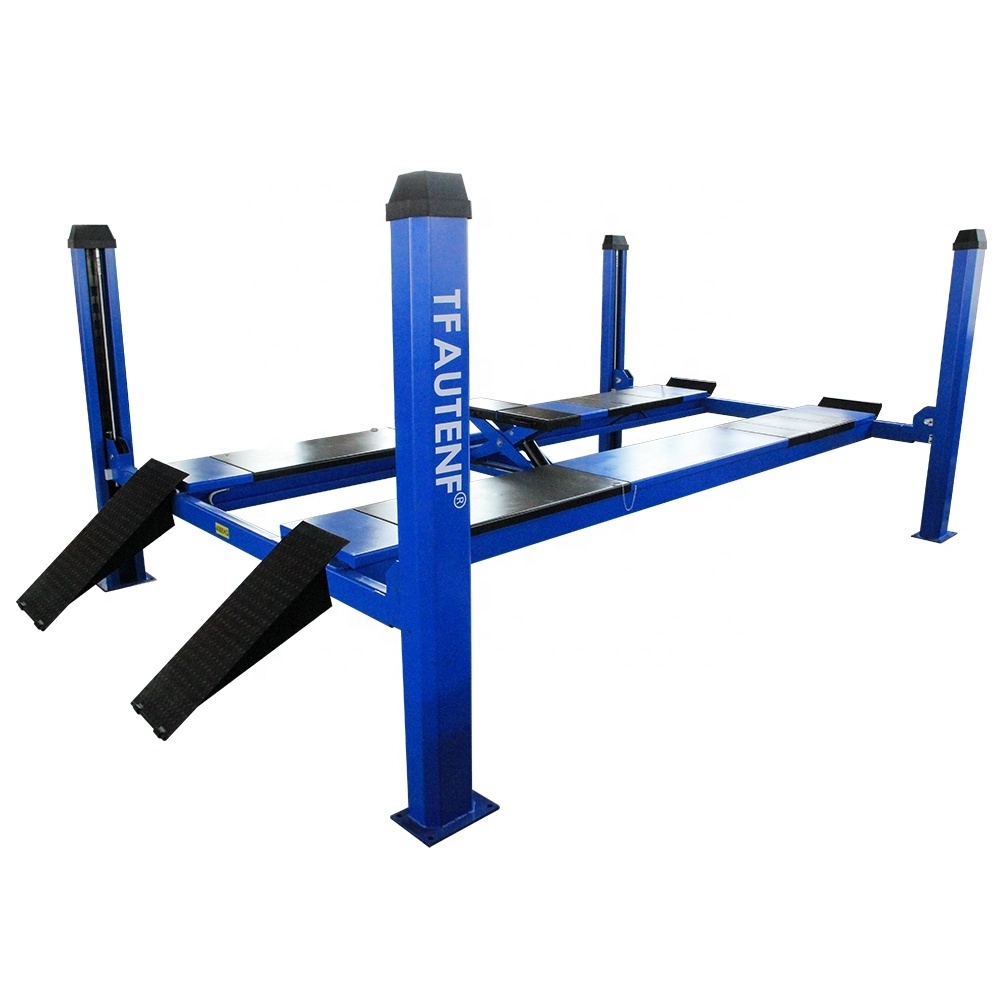

TFAUTENF 4 tons capacity hydraulic
4 post car lift / four post car lift
Top selling model,with a rolling jack,perfect
partner with wheel aligner!
Specifications
|
Product name & model
|
four post car lift TF-F40
|
|
Lifting capacity
|
4000 kgs / 9000 lbs
|
|
Lock release system
|
Manual unlock
|
|
Lifting height
|
1500 mm / 59.06 inch
|
|
Second lifting height
|
max 470mm, suggest 450mm
|
|
Minimum height
(Distance from ground to runway) |
213 mm / 8.39 inch
|
|
Runway length
|
4500 mm / 177.17 inch
|
|
Runway width
|
550 mm / 21.65 inch
|
|
Overall length
(Without the length of ramps) |
4885 mm / 192.32 inch
|
|
Overall width
|
3260 mm / 128.35 inch
|
|
Width between posts
|
2905 mm / 114.37 inch
|
|
Width between runways
|
860 mm / 33.86 inch
|
|
Post height
|
2016 mm / 79.37 inch
|
|
Lifting/falling time
|
50s/60s
|
|
Motor power
|
2.2KW
|
|
Power supply
|
220V/380V/customized
|
Notes:
1, The one above is 4500mm long runway, there is also 4200mm/5000mm/5500mm long runway for your choise;
2, The lifting capacity (3.5 tons, 4 tons, 5 tons), color, voltage, runway length, and lifting height can be customized.
Drawing
Details Images
Manual unlock
Position for turntables
Sliding plate
Oil cylinder & steel rope
Column
Column details
Packing & Delivery
Package information:
|
Package quantity
|
1
|
|
Gross weight
|
1200kgs
|
|
Package size
|
4700*650*900mm (2.75CBM)
|
