Quick Details
-
Filling Accuracy:
-
+-0.5-1%
-
Voltage:
-
220V 50/60Hz
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
MTW
-
Dimension(L*W*H):
-
L2000*W1000*H1600mm
-
Weight:
-
250 KG
-
Product name:
-

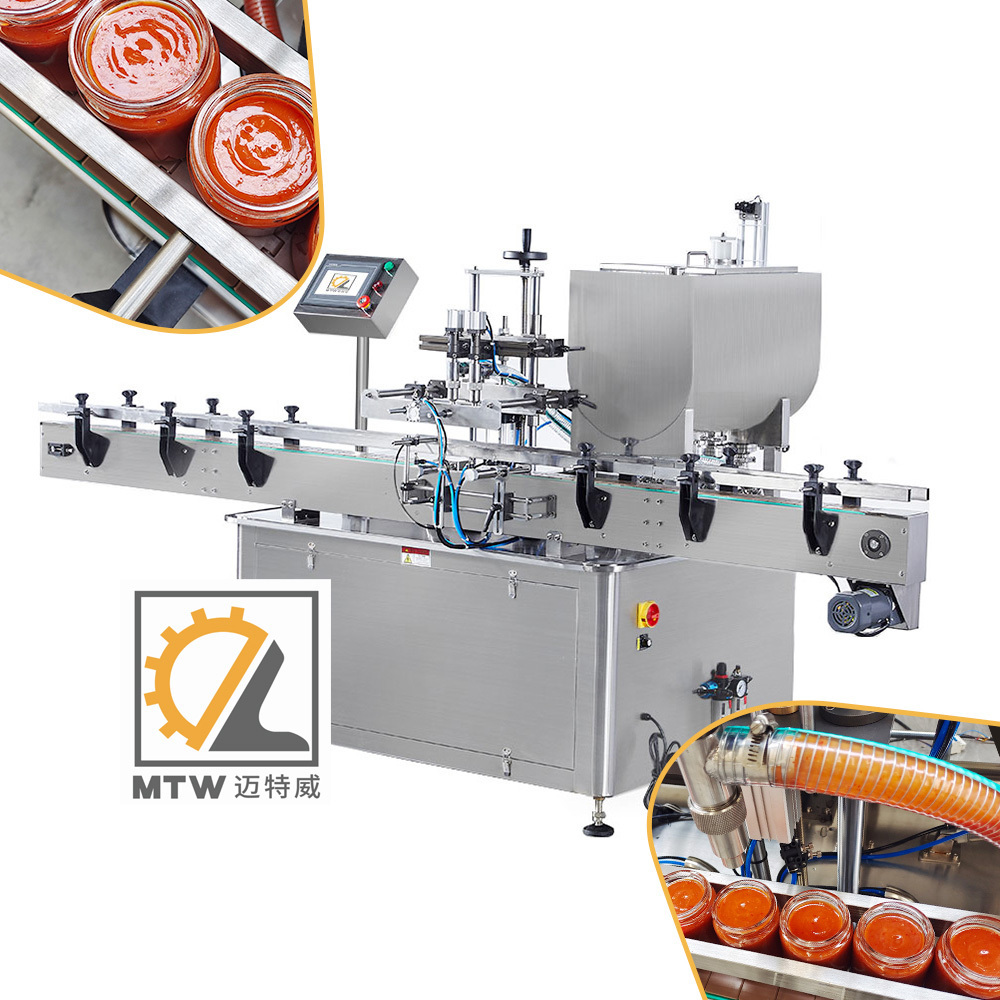

Automatic Sauce filling machine
-
Material:
-
Stainless Steel 304/316
-
Control:
-
PLC+ Touch Screen
-
Feature:
-
High Precision Filling Level
-
Function:
-
Automatic Filler
-
Advantage:
-
Easy Operation High Efficiency
-
Customizable:
-
Yes
-
Usage:
-
Liquid Filling Packaging
-
After Warranty Service:
-
Video technical support, Online support
-
Suitable for:
-
High Viscous Products
Quick Details
-
Machinery Capacity:
-
2000BPH, 1000BPH, Other
-
Packaging Material:
-
Plastic, Metal, Glass, Other
-
Filling Material:
-
Oil, Other, Paste, Cream, Sauce
-
Filling Accuracy:
-
+-0.5-1%
-
Voltage:
-
220V 50/60Hz
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
MTW
-
Dimension(L*W*H):
-
L2000*W1000*H1600mm
-
Weight:
-
250 KG
-
Product name:
-
Automatic Sauce filling machine
-
Material:
-
Stainless Steel 304/316
-
Control:
-
PLC+ Touch Screen
-
Feature:
-
High Precision Filling Level
-
Function:
-
Automatic Filler
-
Advantage:
-
Easy Operation High Efficiency
-
Customizable:
-
Yes
-
Usage:
-
Liquid Filling Packaging
-
After Warranty Service:
-
Video technical support, Online support
-
Suitable for:
-
High Viscous Products
Our Advantages
Product Description
Introduction :
This filling machine is used to fill both liquid like(water, wine, oil etc) and paste like (cream,
essential oil, lotion,perfume, honey, tomato paste, sauce etc in food, cosmetics, chemical and other industries. The machine material is made with SUS304 & SUS316L, which is clean and hygienic, easy to disassemble and wash.
Product Paramenters
|
Material
|
SUS304 and SUS316L
|
|
|
|
|
||||
|
Filling heads
|
1 head / 2 head
|
|
|
|
|
||||
|
Filling range
|
30-300ml/ 50-500ml
|
100-1000ml
|
250-2500ml
|
300-3000ml
|
500-5000ml
|
||||
|
Driven
|
Panasonic servo motor & Airtac cylinder (Can choose)
|
|
|
|
|
||||
|
Hopper size
|
40L (standard size, bigger size can tailor-made)
|
|
|
|
|
||||
|
Conveying method
|
Conveyor belt (frequency control & speed adjustable)
|
|
|
|
|
||||
|
Filling speed (bottles/ hour)
|
1 head: 1200-1500 bottles/hour 2 head: 2000-2500 bottles/hour
|
|
|
|
|
||||
|
Filling precision
|
+/-0.5% (Panasonic servo motor )
+/-1% (Airtac Cylinder )
|
|
|
|
|
||||
|
Power
|
220V 50/60Hz 0.5Kw
(Can be tailor made to suit different countries)
|
|
|
|
|
||||
|
Air pressure
|
0.4MPA-0.8MPA
|
|
|
|
|
||||
|
Machine size
(L*W*Hmm)
|
L2000*W1000*H1600mm
|
|
|
|
|
||||
|
Weight
|
200kg
|
200kg
|
220kg
|
250kg
|
280kg
|
||||
Suitable for liquid filling, especially high-viscosity liquid,
such as soap liquid, lotion cream, cooking oil sauce, etc,
and high filling precision, widely used in food industry and daily chemical industry.
The filling heads are specially made, with the function of anti-drop and anti-drawing & bubble-kill. Can make diving filling heads to move together with liquid level.
Hopper for mixing and stirring materials
Machine parts use stainless steel SUS304 & SUS316L. The machine use world word-class brand components, such as photo sensor---Keyence (Japan) PLC---Mitsubishi (Japan) Electrinic control part---Schneider (France) Touch screen---Delta (Taiwan China) Or MCGS(Beijing China) Cylinder--AirAc (Taiwan China)
Conveyor belt
Transaction process
Why Choose Us
Company profile
Our company is a professional manufacturer of all kinds of packing machines, including: filling machines, sealing machines, capping machines, labelling machines etc. We have more than 10 years experience in manufacturing and designing all kinds of packing machines.
We supply all kinds of bottle packing machines for food industry, chemical industry etc.
We are good at designing and tailor-making products. Maitewei(MTW) pack makes more perfect packing, and more efficient production!
We supply all kinds of bottle packing machines for food industry, chemical industry etc.
We are good at designing and tailor-making products. Maitewei(MTW) pack makes more perfect packing, and more efficient production!
Our logistics
FAQ
1.Can I visit your factory?
A:Sure, Our factory address :Plant No 6, No.77 Fuyuan Road, Wuqing Development Area, Tianjin City, China.
2. If we have samples of new products, can you help to analysis and design the machine?
Yes, Our technical staff can help to analysis, design and test the new products you offered.
3.What can you buy from us?
Filling Machine,Capping Machine,Labeling Machine
4. How about the spare parts?
After we deal down all the things , we will offer you a spare parts list for your reference.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,PayPal,Western Union;
Language Spoken:English,Chinese
A:Sure, Our factory address :Plant No 6, No.77 Fuyuan Road, Wuqing Development Area, Tianjin City, China.
2. If we have samples of new products, can you help to analysis and design the machine?
Yes, Our technical staff can help to analysis, design and test the new products you offered.
3.What can you buy from us?
Filling Machine,Capping Machine,Labeling Machine
4. How about the spare parts?
After we deal down all the things , we will offer you a spare parts list for your reference.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,PayPal,Western Union;
Language Spoken:English,Chinese
