Quick Details
-
Brand Name:
-
TOWEI
-
Model Number:
-
3410-426
-
Max. Current:
-
4A
-
Mechanical Life:
-
10000 Cycles
-
Product Name:
-
rotary switch for cooler or fan
-
Position:
-
2
-
Suitable:
-
fan,cooler
-
Temperature:
-
125℃
-
Certification:
-
CQC, TUV, CB, CUL,ROHS
-
Service:
-
OEM/ODM
-
Function:
-
OFF, L-1
-
Material:
-
fire-proof
-
Terminal:
-
Solder Terminal
-
Installation:
-
screw
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
250V AC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TOWEI
-
Model Number:
-
3410-426
-
Max. Current:
-
4A
-
Mechanical Life:
-
10000 Cycles
-
Product Name:
-
rotary switch for cooler or fan
-
Position:
-
2
-
Suitable:
-
fan,cooler
-
Temperature:
-
125℃
-
Certification:
-
CQC, TUV, CB, CUL,ROHS
-
Service:
-
OEM/ODM
-
Function:
-
OFF, L-1
-
Material:
-
fire-proof
-
Terminal:
-
Solder Terminal
-
Installation:
-
screw
Product Description

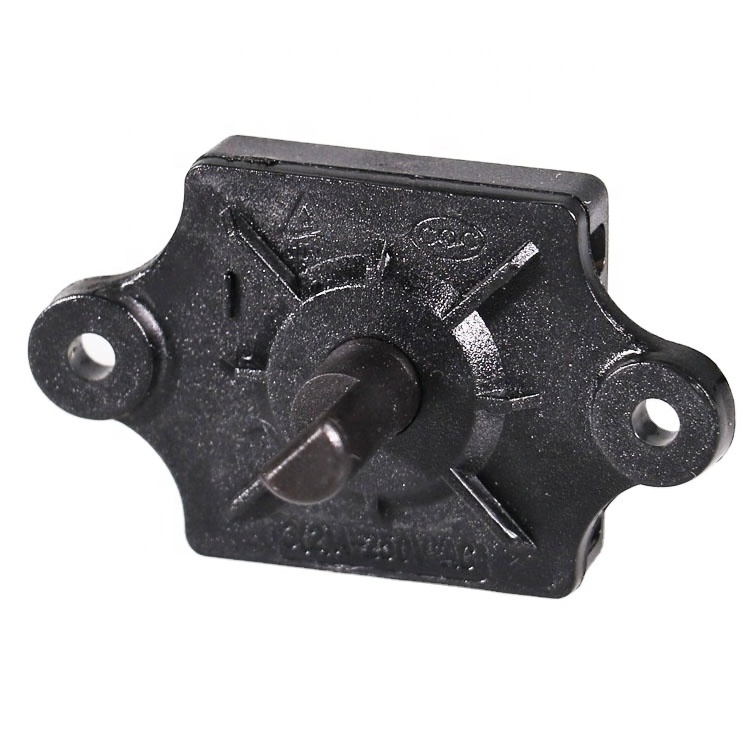

Towei 45 degree 2 position 1 speed rotary switches for Item No.:3410-426
|
Technical Parameter |
|
|
Electrical Rating |
4A ~125V.A.C. 3 (2) A ~250 V.AC. |
|
Function |
OFF, L-1 |
| Position | 2 |
| Rotary angle | 45° |
|
Install way |
pair of mounted holes |
|
HZ |
60/50 |
| Load | Res/ Mot |
| Temp(C) | 125°C |
| Pol/Thr | 1/ M |
| PP/Circuit | A/-- |
| Endur | 10K |
| Operation force | 750G+_250GF |
| Withstand voltage | 1500 V.A.C |
| SPCOA | 24-18AWG UL1015 |
|
Material: |
|
| Cover: PA66 | |
| Rotary: PA66 Flame rating: V-2 or V0 Temperature: 130°C Grade: Dupont | |
| Movable Contract: Copper | |
| Terminals: Brass | |
| Base: PA66 Flame rating: V-2 or V0 Temperature: 130°C Grade: SABIC | |
| Apply to: | |
|
All kinds of electric air cooler, cooling machine, Juicer, Mixer, Blender, coffee machine, vacuum humidifier, cleaner,massage equipment,air purifier,lamps,toys,massager and so on.
|
|
