XCMG Official Skid Steer Wheel Loader Tree Spade Digger Removal Moving Machine

XCMG Official Skid Steer Wheel Loader Tree Spade Digger Removal Moving Machine

FOB Reference Price: Get Latest Price

≥1 Pieces

US $6900

≥5 Pieces

US $5900

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight:: 4820 KG

Load rating:: 1050kg

wheelbase:: 1179mm

Quick Details

Use:: tree mover

Place of Origin:: Jiangsu, China

Brand Name:: XCMG

Weight:: 4820 KG

Load rating:: 1050kg

wheelbase:: 1179mm

Product Description

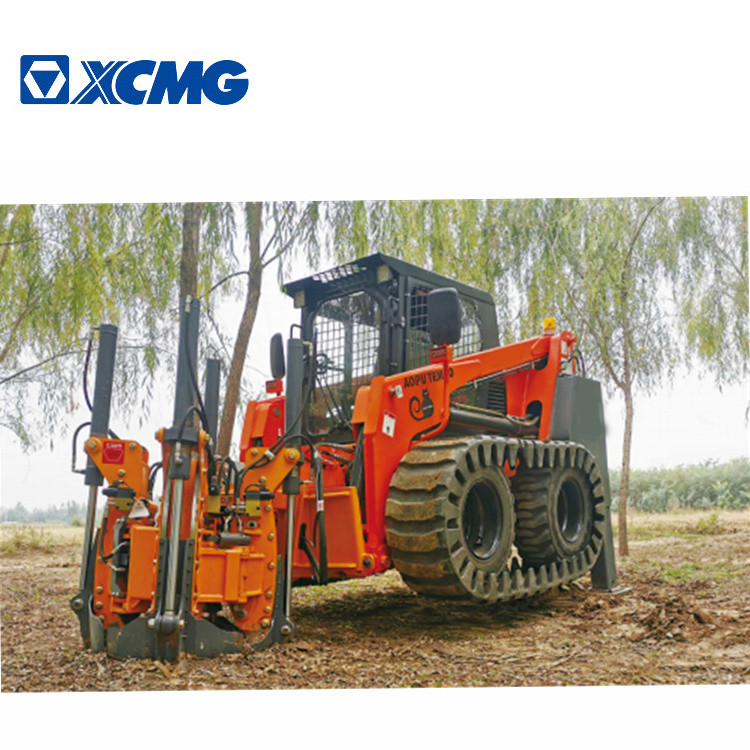

XCMG Official Skid Steer Wheel Loader Tree Spade Digger Removal Moving Machine

Efficient

Tree removal machine, Fast tree digging efficiency. From shoveling to digging out the tree, it only takes 30 seconds to 1 minute to truly realize what our slogan says: 1 minute, 1 tree. Selective tree digging (which is what we usually call picking and digging) can dig about 100-200 trees per day. And digging trees in clear land can double to 400-500 trees per day. One tree moving machine is equivalent to 30-100 tree diggers working at the same time.

Apple-shaped soil balls The excavated soil balls are like "apple balls", and the soil balls are full, which can retain more roots to a greater extent. Improve the survival rate of transplanted seedlings and help return seedlings.

High survival rate The tree moving machine adopts the electromechanical-hydraulic integrated "static pressure cutting" technology, and the cut root section is "flat and smooth", and the soil ball is thick and resistant to pressure and impact. After testing, the soil and root system inside the excavated soil balls have no obvious structural displacement changes, and the survival rate of trees can be significantly improved.

High Strength Shovel The tree moving machine knife and shovel components (including blades) are all imported (Germany, Italy (there is no corresponding material in China)) high-strength wear-resistant alloy plates. After testing: the blade is continuously bent by 140 degrees when an external force is applied, and the continuous operation is 100,000 times. Releasing the external force can restore the original process state.

Product Paramenters

parameter	Unit	XCS450	XCS500	XCS550
Load rating	kg	900	1050	1980
Overturning loads			1800	2100	3960
Machine weight			4050	4820	5550
Bucket capacity	m3	0.41	0.53	0.53
Maximum operating height	mm	4270	4295	4460
Bucket pin height			3269	3290	3295
With air conditioning top height			2400	2220	2250
Maximum horizontal height at the bottom of the bucket			3090	3116	3126
Attachment length is not included			2710	2889	2989
Length with attachment			3910	4089	4189
Maximum unloading height		mm	2551	2543	2555
Unloading distance			603	652	655
wheelbase			1050	1179	1200
Ground clearance			202	202	202
Tire edge width			1817			1917
Outer track width			1917			2017
Bucket edge width			1880
Departure Corner		24°
Unloading angle (maximum height)		38°

Product Show

Multi-function Machine

Closed sweeper

It's suitable for road maintenances and port and harbor road constructions. It works with the milling machine to clean the milled roads.

Planer

It's suitable for small-area milling of asphalt and cement roads and applicable for municipal and road maintenances. It's used with closed-type sweeper.

Manhole cover planer

It's suitable for the milling operation of damaged manhole covers on urban roads and can remarkably promote the replacement efficiency of manhole covers on urban roads and reduce the maintenance time.

Breaking hammer

It's applicable for user's outdoor operations with limited interior space or height and is an ideal tool for large-area breaking.

Twist drill

It's applicable for diriling operations for guidepost setup, tree planting, electricity pole setup, and municipal gardens.

Continuous ditcher

It's applicable for municipal and farm/ranch maintenances.

Inclined sweeper

It can rapidly and effectively remove the thin snow, dusts, viscous dry mud, and other wastes and is especially suitable for sweeping of roads, sidewalks, driving lanes, parking lots, runways, and warehouses.

Snow plough

It's suitable for sweeping of materials such as municipal road soil and accumulated snow. It's applicable for sweeping the accumulated snow of common thickness (In thickness of ≤ 30cm) and can push the accumulated snow to designated position for sweeping.

Rotary tiller

Suitable for softer bed packaging. The high-torque hydraulic motor drives the rotary tlling mechanism to loosen the Cow bed, so that the high and low layers of the cowshed bed are loose and flat, and the efficiency is high.
