Quick Details
-
Rim size:
-
6.0x17inch
-
Power:
-
10kw
-
voltage:
-
72v
Quick Details
-
Voltage:
-
72V( 60V-144V Can be optional)
-
Place of Origin:
-
China
-
Color:
-
Black
-
Rim size:
-
6.0x17inch
-
Power:
-
10kw
-
voltage:
-
72v
QS273 10KW 17inch Hub Motor V4 Type with 6.0x17Rim
1. Motor Configuration
a. 25mm2 Motor phas wires
b. Double Hall sensor wires(One is for replace)
c. Brake Disc on the motor(Please indicate if you want it)
d. Motor always NOT attached Temperature Sensor,if you need,please Indicate in the order
2. Motor Speed Choice
The motor can be customzied from 70kmph-130kmph under different voltage as 72V,84V,96V ,120V,144V
Please Indicate what speed and Voltage you need in the order
3. Main Tech Data of The Motor
-
Rated power:10000W
-
Wheel size: 6.0×17
-
Matching tire:180/70-17 to 220/70-17
-
Magnet Height: 70mm
-
Number of Poles: 16pairs
-
Max. Speed: 140kmph
-
Required rear fork width: 230mm
-
Tempreture Sensor:KTY83/122
-
Brake type:Disc brake
-
Water proof grade:IP54

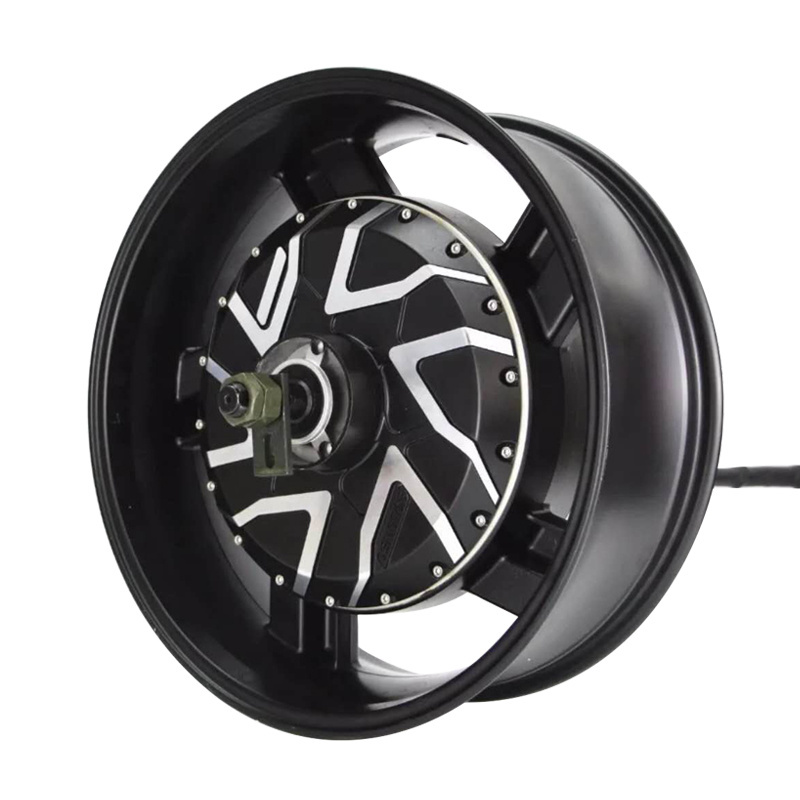

Picture:
