Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SZGOZIE
-
Model Number:
-
6*7.2/6*9/7*7/8*8-2
-
Product name:
-
Illuminated Tactile Switch
-
Color:
-
red/yellow/green/blue/others
-
Material:
-
brass
-
Certificate:
-
CE ROHS
-
Shape:
-
Square
-
Mounting:
-
Soldering
-
Insulation Resistance:
-
100Mohm
-
Certification:
-
Rohs
Quick Details
-
Protection Level:
-
IP40
-
Max. Current:
-
0.5A
-
Max. Voltage:
-
AC 250V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SZGOZIE
-
Model Number:
-
6*7.2/6*9/7*7/8*8-2
-
Product name:
-
Illuminated Tactile Switch
-
Color:
-
red/yellow/green/blue/others
-
Material:
-
brass
-
Certificate:
-
CE ROHS
-
Shape:
-
Square
-
Mounting:
-
Soldering
-
Insulation Resistance:
-
100Mohm
-
Certification:
-
Rohs
Specification
|
Product Name
|

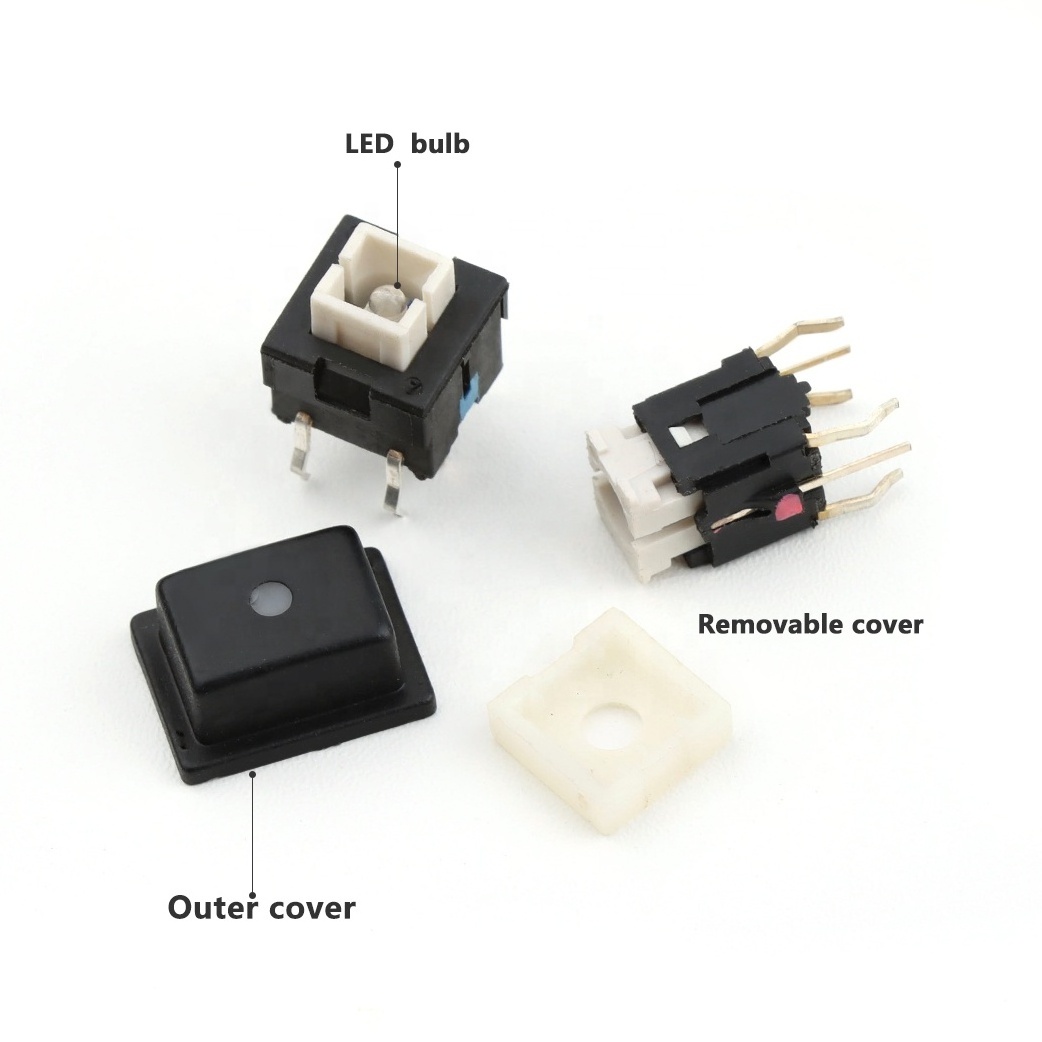

Illuminated Tactile Switch
|
|
Item Number
|
Illuminated Tact Switch
|
|
Electronic Life
|
>50000CYCLES
|
|
Rated current
|
0.5A 12V
|
|
Contact Resistance
|
<50MΩ
|
|
Insulation Resistance
|
>100MΩ
|
|
Withstand Voltage
|
>1500V/MINUTE
|
|
Storage Temperature
|
-25°C~+85°C
|
Product Description
Tactile switches
are small compact switches
designed to mount PCB boards
, made to connect electronic components to form an electronic circuit. Tact switches are an electromechanical component intended for a PCB (printed circuit board) and a type of push button switch, as it needs to be pressed. PCB switches are mounted directly on to a PCB (Printed Circuit Board), surface mount PCB switches (
SMD/SMT
) sit flat on the PCB whereas a
through-hole or ‘thru-hole’ PCB switches
are inserted into a drilled hole on the printed circuit boards and soldered to pads on the opposite side. Tact switches are also referred to as Tactile switches, referring to the tactile function.
Size
:
12*12mm
/
6*6mm / 4.5*4.5mm and so on.
More information about product,please
click here
.
Types of Tact Switches:
* Standard Tact Switch – another way to refer to all PCB, Tact switches.
* Horizontal and Vertical – indicates the position of the PCB, Tact switch as this may be a crucial part of your design.
* Illuminated Type – refers to Tact switches which can emit LED illumination.
* SMD Type – is referred to a mounting style and SMD is an abbreviation for ‘surface mount device’ type, means it will be placed directly on the surface of the PCB.
* Hinged lever-type – this type of Tact switch with the end of the switch slightly raised.
* Ultra subminiature type – refers to smaller Tact switches.
We can supply a range of tact switches which support momentary and latching push button functionality, support LED illumination or etching and stamping or select from a range of different caps.Please contact us , we can do more for you!
* Horizontal and Vertical – indicates the position of the PCB, Tact switch as this may be a crucial part of your design.
* Illuminated Type – refers to Tact switches which can emit LED illumination.
* SMD Type – is referred to a mounting style and SMD is an abbreviation for ‘surface mount device’ type, means it will be placed directly on the surface of the PCB.
* Hinged lever-type – this type of Tact switch with the end of the switch slightly raised.
* Ultra subminiature type – refers to smaller Tact switches.
We can supply a range of tact switches which support momentary and latching push button functionality, support LED illumination or etching and stamping or select from a range of different caps.Please contact us , we can do more for you!
