Quick Details
-
Model Number:
-
mobile poron 200307
-
Color:
-
Black
-
Shape:
-
Customized
-
Density:
-
240~480 kg/m3
-
Thickness:
-
0.79~12.70 mm (0.031 to 0.5 in.)
-
Material:
-
Rogers Poron
-
Range of Temperature:
-
-51 to 121° C
-
Recommended Temperature:
-
90°C
-
Benefits:
-
Durable, Flexible, Noise Reduction, etc.
-
Coefficient of Thermal Expansion:
-
2.3-3.1 x 10 -4 in/in/° C (1.3-1.7 x 10 -4 in/in/°F)
-
Application:
-
Automobile, Household Appliances, Consumer Electronics
Quick Details
-
Processing Service:
-
Moulding, Cutting
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Leader OPUS
-
Model Number:
-
mobile poron 200307
-
Color:
-
Black
-
Shape:
-
Customized
-
Density:
-
240~480 kg/m3
-
Thickness:
-
0.79~12.70 mm (0.031 to 0.5 in.)
-
Material:
-
Rogers Poron
-
Range of Temperature:
-
-51 to 121° C
-
Recommended Temperature:
-
90°C
-
Benefits:
-
Durable, Flexible, Noise Reduction, etc.
-
Coefficient of Thermal Expansion:
-
2.3-3.1 x 10 -4 in/in/° C (1.3-1.7 x 10 -4 in/in/°F)
-
Application:
-
Automobile, Household Appliances, Consumer Electronics

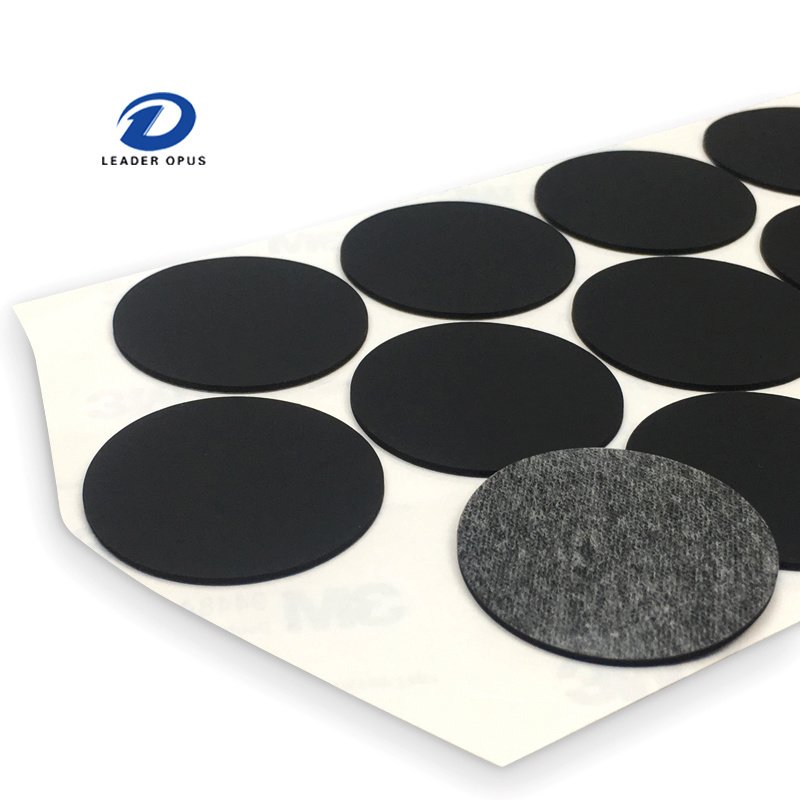

Soft Rogers Poron Series Material Mobile Phone Poron Foam Gasket
Die Cutting mobile poron
The very soft PORON 4701-30 polyurethane foam is ideal in applications where flexibility is a key requirement. PORON 4701-30 foam material maintains its integrity and effectiveness in gap filling, gasketing and vibration isolation applications.
Features of mobile poron
Thickness range of .031 to .5 in (.79 to 12.7 mm)
Available densities of 320 or 400 kg/m3 (20 or 25lb/ft3)
Excellent compression set resistance
Temperature range of -51 to 121° C (constant use recommended at 90°C)
Technical Sheet of Rogers Poron 4701-30
PROPERTY | TEST METHOD | VALUE | |||
---|---|---|---|---|---|
PHYSICAL | |||||
Density, kg /m 3 (lb / ft 3 ) | ASTM D 3574-95, Test A | 240 (15) | 320 (20) | 400 (25) | |
Tolerance, % | ± 10 | ||||
Thickness, mm (inches) |
4.78 – 12.70
(0.188 - 0.500) |
1.57 – 3.18
(0.062-0.125) |
0.79 – 1.14
(0.031 - 0.045) |
||
Tolerance, % | ± 10 | ± 15 | |||
Standard Color (Code) | Black (04) | ||||
Compression Force Deflection, kPa
(psi) Typical kPa, (psi) |
0.51cm/min (0.2” / min) Strain Rate
Force Measured @ 25% Deflection |
7 - 35
(1 – 5) 21 (3) |
21 - 55
(3 – 8) 35 (5) |
35 - 83
(5 – 12) 62 (9) |
|
Hardness, Durometer, Shore "O",
Shore “A” |
ASTM D 2240-97 |
<3
<3 |
8
5 |
16
12 |
|
Compression Set, % max. |
ASTM D 1667-90 Test D @ 23 ºC (73 ºF)
ASTM D 3574-95 Test D @ 70 ºC (158 ºF) ASTM D 3574-95 Test J/Test D autoclaved 5 hrs @ 121 ºC (250 ºF) |
2
10 5 |
|||
Dimensional Stability, % max. change | 22 hrs @ 80ºC (176ºF) in a forced-air oven | ± 1 | |||
Tensile Strength, kPa (psi) min.
Typical kPa (psi) |
ASTM D 3574-75 Test E |
138 (20)
207 (30) |
207 (30)
346 (50) |
242 (35)
484 (70) |
|
Tensile Elongation, % min.,
Typical |
ASTM D 3574-75 Test E |
100
160 |
100
155 |
100
150 |
|
Tear Strength, kN/m (pli) min
Typical kN/m (pli) |
ASTM D 264-91 Die C |
0.2 (1)
0.9 (5) |
0.5 (3)
1.2 (7) |
0.7 (4)
1.8 (10) |
|
TEMPERATURE RESISTANCE | |||||
Recommended Constant Use, max. | SAE J-2236 | 90°C (194°F) | |||
Recommended Intermittent Use, max. | 121°C (250°F) | ||||
Embrittlement | ASTM D 746-98 | -51°C (-60°F) | |||
Cold Flexibility | MIL-P-12420D 1991 @ -40 °C (-40 °F) | Pass | |||
FLAMMABILITY | |||||
Flammability, mm (inches) |
UL 94HBF (File E20305) (Pass≥)
MVSS 302 (Pass≥) CSA Comp HBF (File 188149) (Pass≥) |
4.8 (0.188)
4.8 (0.188) 4.8 (0.188) |
2.4 (0.093)
1.6 (0.062) 2.4 (0.093) |
1.6 (0.062) |
We can provide die-cutting Rogers Poron 4701-30, 4701-40, 4701-50, 4701-60, 4790-79, 4790-92, etc. If you are interested in die-cutting Rogers Poron Foam Gaskets, please contact us for more details.
Customized Die Cutting Rogers Poron
Benefits of mobile poron
Flexible and easily compressed
Excellent durability
Noise reduction
