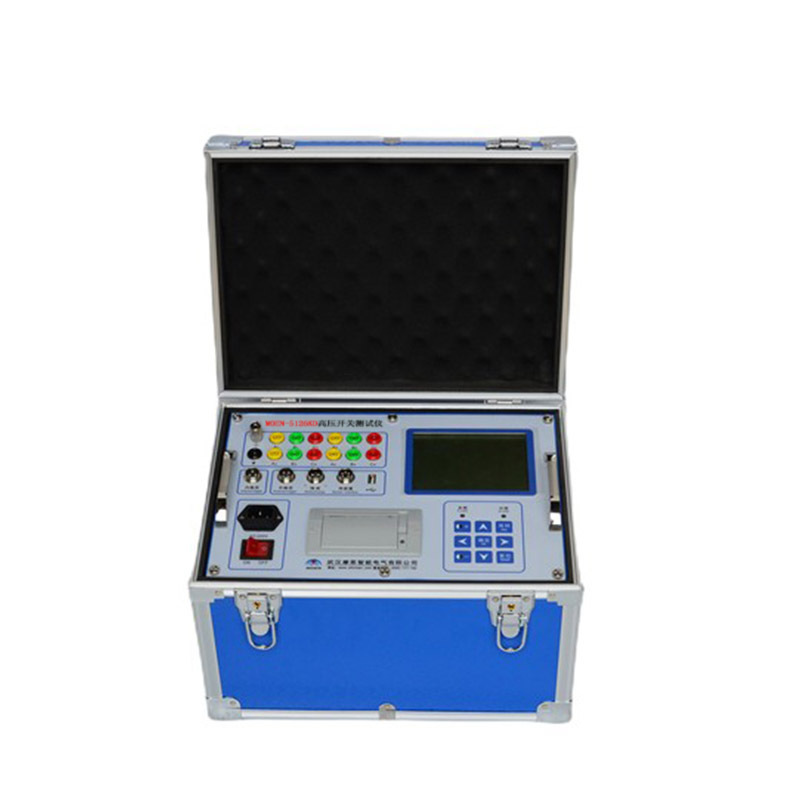

MOEORW-WG5126KD Best Price CB Analyzer Circuit Breaker Tester High Voltage Switch Tester

MOEORW-WG5126KD Best Price CB Analyzer Circuit Breaker Tester High Voltage Switch Tester

FOB Reference Price: Get Latest Price

≥1 Sets

US $4150

≥5 Sets

US $3000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: MOEORW

Model Number:: MOEORW-WG5126KD

Product Name:: High Voltage Switch Tester

Brand:: MOEORW

Model:: MOEORW-WG5126KD

Insulation resistance:: >2MΩ

Current:: Range 30.00A

Time:: Range 0ms +64000ms

Input power supply:: 220V±10% 50Hz±10%

Temperature:: -10~40℃

Humidity:: ≤80%RH

Weight:: 9kg

Quick Details

Warranty:: 1 Year

Power:: Electronic

Place of Origin:: Hubei

Brand Name:: MOEORW

Model Number:: MOEORW-WG5126KD

Product Name:: High Voltage Switch Tester

Brand:: MOEORW

Model:: MOEORW-WG5126KD

Insulation resistance:: >2MΩ

Current:: Range 30.00A

Time:: Range 0ms +64000ms

Input power supply:: 220V±10% 50Hz±10%

Temperature:: -10~40℃

Humidity:: ≤80%RH

Weight:: 9kg

MOEORW-WG5126KD Best Price CB Analyzer Circuit Breaker Tester High Voltage Switch Tester

Features:

◆ The instrument adopts an industrial computer structure and is suitable for all types of SF6 switches with metal contacts, GIS combination appliances, vacuum switches, oil switches, column switches, contactors, etc. produced at home and abroad. ◆ Sensors: acceleration speed sensor, rotation speed sensor, linear travel sensor and contact sensor, which are extremely convenient and simple to install. ◆ Triggering mode: internal trigger, external trigger (2 closing wires, 2 opening wires), sensor triggering and manual triggering. Manual triggering can be used to conduct characteristic tests on manually opened and closed circuit breakers (without opening and closing coils), such as manual open and close switches on poles. Sensor triggering is mainly used in switch factories and other places with special requirements. ◆ Energy storage output: The instrument can provide DC adjustable energy storage power supply. After connecting the line at one time, the motor energy storage can be controlled at any time without reversing the line. ◆ The host has a large screen, direct transmission, wide temperature range backlight LCD, and electronic contrast adjustment. Complete Chinese menu prompt operation, one switch action, display all data and waveform diagrams. ◆ The host can store 1000 sets of on-site opening and closing test results. The real-time clock in the machine is convenient for archiving and saving test date and time; the USB interface is used for data transfer and program upgrade. ◆ The instrument has powerful data analysis functions and can effectively analyze various indicators and parameters of the mechanical characteristics of the circuit breaker. Built-in fast micro printer to print all data and maps.

Product Specifications:

1.1 Usage environment
Input power 220V±10% 50Hz±10%
Atmospheric pressure 86～106kpa
Temperature -20～45℃
Humidity ≦80%RH
1.2 Safety performance
Insulation resistance >2.0MΩ
Dielectric strength: The power supply can withstand the power frequency of 1.5kV to the chassis for 1 minute without flashover or
arcing.
1.3 Basic parameters
Time: Range 0-64000.0ms Resolution 0.1ms Error ≤ 0.1%rdg±0.1
Speed: Range 0-20.00m/s Resolution 0.01m/s Error ≤1%rdg±0.01
Stroke: Range 0-1000.0 mm

	Measuring range	Resolution	Error
Vacuum circuit breaker	50.0mm	0.1mm	1%±1 word
SF6 circuit breaker	300.0mm	1mm
Oil circuit breaker	1000.0mm	1mm

Coil current: Range 30.00A Resolution 0.01A Output power supply: DC0~270V digitally adjustable/30A Dimensions and weight: length 350mm*width 240mm*height 210mm, main unit weight 7.8kg
