Plastic Pipe Making Machine PVC/UPVC/CPVC/PVC Pipe Extruding Machine for Sale

Plastic Pipe Making Machine PVC/UPVC/CPVC/PVC Pipe Extruding Machine for Sale

FOB Reference Price: Get Latest Price

≥1 Sets

US $30000

≥2 Sets

US $28000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Shandong, China

Brand Name:: BOTON

Voltage:: 220v-450v

Dimension(L*W*H):: 22*2.5*2.5m

Power (kW):: 90

Weight:: 2500 KG

Machine Name:: PVC pipe extrusion machine

Material:: Pvc Resin + CaCO3+other

Extruder:: Conical twin screw extruder

Capacity:: 50-400kg/h

Pipe diameter:: 16-630mm

Motor brand:: SIENEMS BEIDE

Inverter:: ABB Inverter

Temperature control:: Omron Japan

Contactor:: Siemens Contactor

PLC system:: Siemens PLC system

Quick Details

Screw Design:: Double-screw

Screw L/D Ratio:: 22:1

Screw Speed (rpm):: 75 rpm

Place of Origin:: Shandong, China

Brand Name:: BOTON

Voltage:: 220v-450v

Dimension(L*W*H):: 22*2.5*2.5m

Power (kW):: 90

Weight:: 2500 KG

Machine Name:: PVC pipe extrusion machine

Material:: Pvc Resin + CaCO3+other

Extruder:: Conical twin screw extruder

Capacity:: 50-400kg/h

Pipe diameter:: 16-630mm

Motor brand:: SIENEMS BEIDE

Inverter:: ABB Inverter

Temperature control:: Omron Japan

Contactor:: Siemens Contactor

PLC system:: Siemens PLC system

Machine Description

PVC/CPVC/UPVC Pipe Extrusion Line/Production Line

PVC/CPVC/UPVC Solid Pipe Extrusion Machine/Extruding Machine/Making Machine

PVC/CPVC/UPVC Pipe Extruder

The rigid PVC pipe extrusion line is for manufacturing the rigid PVC pipes, it can produce different diameter and thickness PVC pipes.

Extrusion Line Details

Our PVC pipe extrusion machine has features of low energy consumption, high output, stable running etc.

The standard PVC pipe extrusion machine include: material feeder, SJSZ series conic twin screw extruder, mould, vacuum calibration tank, spray cooling tank(for big pipe), haul-off, cutter, stacker/automatic belling machine.

PVC Pipe Extrusion Process Flow:

PVC powder + additive → mixing → spring feeding → twin screw extruder → mould → vacuum calibration machine → haul off machine →cutting machine → stacker or automatic belling machine

1.Twin screw extruder

2.Die head. Due to the diameter, it can be single, double and four die head

3.Vacuum tank: due to diameter, it can be designing of single, double vacuum chambers

4.Haul-offs: due to diameter, it can be designing of double, three, four, six, eight caterpillars

5.Cutter: due to diameter, it can be designing of saw cutter or planetary cutter

6.Stacker or automatic belling machine

Main Parameters

Diameter range (mm)	Extruder Model	Main Motor Power (KW)	Max. Capacity (KG/H)	Max. Haul off speed
16-40 Dual	SJSZ51/105	18.5 AC	150	10(m/min.)
20-63 Dual	SJSZ65/132	37 AC	250	15(m/min.)
20-63	SJSZ51/105	18.5 AC	120	15(m/min.)
50-160	SJSZ65/132	37 AC	250	8(m/min.)
75-160 Dual	SJSZ80/188	110 AC	450	6(m/min.)
63-200	SJSZ65/132	37 AC	250	3.5(m/min.)
110-315	SJSZ80/156	55 AC	450	3(m/min.)
315-630	SJSZ92/188	110 AC	800	2(m/min.)

1. Twin screw extruder with automatic feeding system：

----Different series of twin screw extruder for different diameters.

---- Quality Screw and Barrel

----Air Cooled Ceramic Heater
----High Quality Gearbox and Distribution Box
----Better Cooling of Gearbox
----Advanced Vacuum System
----Easy Cable Connection

Both conical twin screw extruder and parallel
twin screw extruder can be applied to produce PVC pipe. With latest technology, to lower power and ensure capacity. According to
different formula, we provide different screw design to ensure good plasticizing
effect and high capacity.

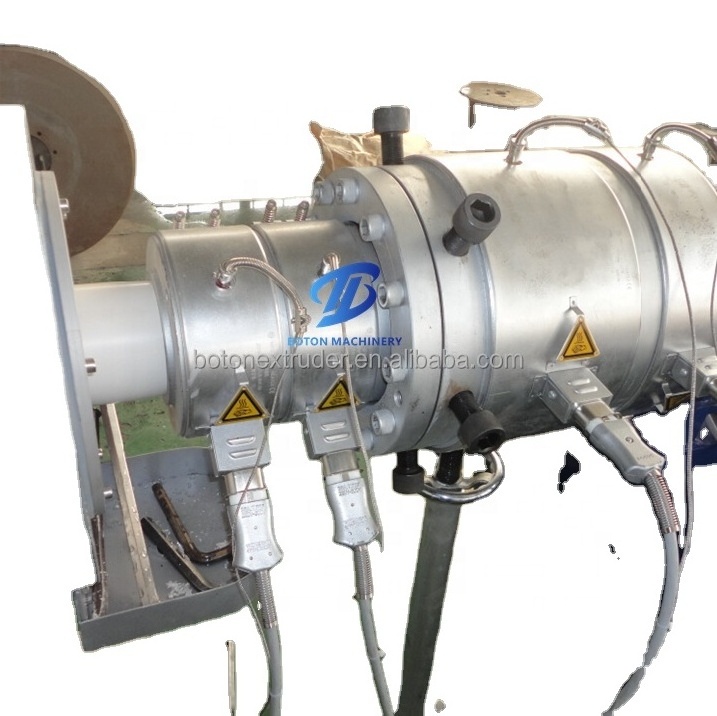

2. Mould：

----CNC Processing
----High Quality Material

----Customized size

Extrusion die head apply bracket structure, each material flow channel is placed evenly. Each channel is after heat treatment, mirror polishing and chroming to ensure material flow smoothly.

Die head is modular design, easy for changing pipe sizes, assembling, dismantle and maintenance. Can produce single layer ormulti-layer pipe.

3.Calibrating and cooling tank：

- ---Strong Cooling for Calibrator
----Better Support for Pipe
----Silencer
----Pressure Relief Valve
----Double Loop Pipeline
----Water, Gas Separator
----Full Automatic Water Control

Vacuum tank is used to shape and cool pipe, so as to reach standard pipe size. We use double-chamber structure. First chamber is

in short length, to ensure very strong cooling and vacuum function. As calibrator is placed in the front of first chamber and pipe shape is formed mainly by calibrator, this design can ensure quick and better forming and cooling of pipe.

4. Haul-off machine

----Pipe Clamping Device
----Water Tank Filter
----Quality Spray Nozzle
----Pipe Support Adjusting Device
----Pipe Support Device

Haul off unit provides sufficient traction force to pull pipe stably. According to different pipe sizes and thickness, our company will customize traction speed, number of claws, effective traction length. To ensure match pipe extrusion speed and forming speed, also avoid deformation of pipe during traction .

5.Cutting machine：

- ---Aluminum Clamping Device
----Advanced Hydraulic System
----Dust Collection System

Cutter controlled by Siemens PLC with chamfering function, working together with haul off unit to have precise cutting. Customer can set the length of pipe they want to cut.

6. Stacker：

It is used to hold pipes and can unload pipes
automatically.
(1) Length: 6000 mm
(2) Material: Stainless steel
(3) Unloading method: Pneumatic unloading

7. Belling machine (optional)

Belling machine can expand one end of the PVC pipe into the specified shape.

8. Electric Control System

----Motor: Siemens Beide
-----Inverter brand: ABB/Delta

----Contactor brand: Siemens

----Relay brand: Omron

---- Breaker brand: Schneider

PVC Pipe Extrusion Machine Video

Products Description

PVC Rigid Pipe

Advantages of PVC Pipes

1. It has good tensile and compressive strength: but its flexibility is not as good as other plastic pipes.

2. Low fluid resistance: The wall of PVC-U pipe is very smooth and has little resistance to fluid. Its roughness coefficient is only 0.009. Its water delivery capacity is 20% higher than that of cast iron pipes of the same pipe diameter and 40% higher than that of concrete pipes.

3. Excellent corrosion resistance and chemical resistance: PVC-U pipes have excellent acid resistance, alkali resistance, and corrosion resistance, and are not affected by damp water and soil pH. No anti-corrosion treatment is required when laying pipelines.

4. Anti-bite: PVC-U tube is not a source of nutrition, so it will not be corroded by rodents. According to a test conducted by the National Sanitation Foundation in Michigan, rats will not bite PVC-U pipes.

5. It has good water tightness: the installation of PVC-U pipes, regardless of whether it is connected by bonding or rubber ring, has good water tightness.

6. Performance test: curing time, shrinkage, splitting strength, tensile performance, peeling strength, thermal stability, pot life, storage period, release of harmful substances.

Application of PVC Pipes

PVC pipes are applied to agricultural water supply and drainage , overhead or underground wire and cable. Due to the special characteristics of the CPVC plastic pipes, they are widely used in the fields of crude oil transportation, pipe lines of chemical industry which require high temperature and corrosion resistance, hot and lukewarm water supply and drainage system, directly buried pipe of high and extra high Voltage electricity, protection sleeves of wires and cables.

Packing & Delivery

Machine will be packed by wooden box or plastic film which are suitable for sea shipping.
