Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
1050*540*3mm
-
Panel Efficiency:
-
>22%
-

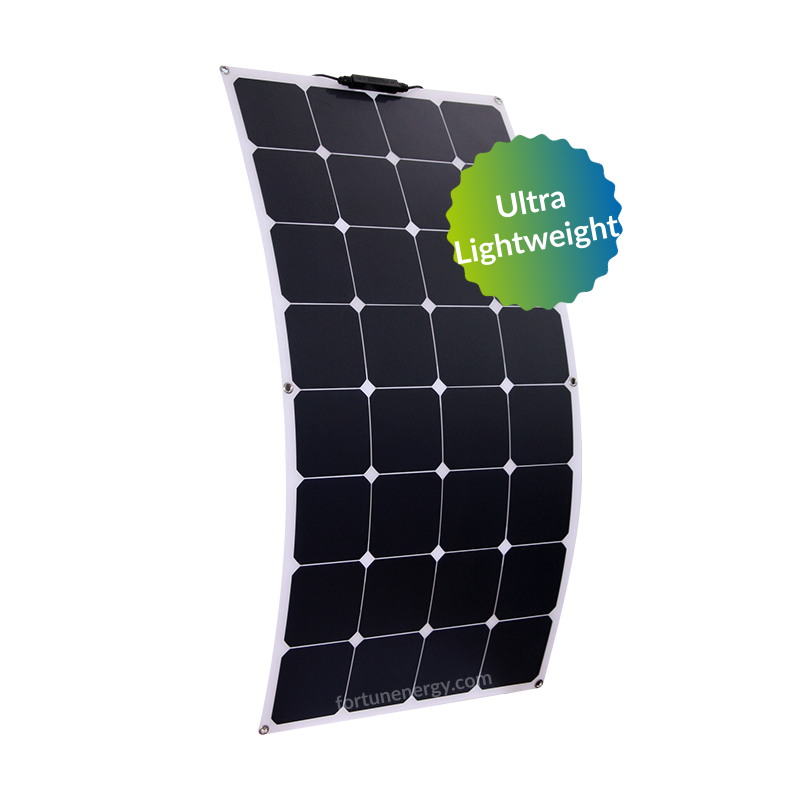

Product name:
-
Flexible Solar Panel
-
Material:
-
PET+EVA
-
Certificate:
-
CE/RoHS
-
Efficiency:
-
22%~25%
-
Application:
-
Off-grid Solar System
-
Cable:
-
Customized
-
Warranty:
-
12 months
-
Function:
-
RV/Camping/Yachting/Emergency
-
Weight:
-
1.8kg(3.97lbs)
-
OEM:
-
Yes
Quick Details
-
Cell size:
-
125mmx125mm
-
Brand Name:
-
Fortune Energy
-
Model Number:
-
FEPM-100FP
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
1050*540*3mm
-
Panel Efficiency:
-
>22%
-
Product name:
-
Flexible Solar Panel
-
Material:
-
PET+EVA
-
Certificate:
-
CE/RoHS
-
Efficiency:
-
22%~25%
-
Application:
-
Off-grid Solar System
-
Cable:
-
Customized
-
Warranty:
-
12 months
-
Function:
-
RV/Camping/Yachting/Emergency
-
Weight:
-
1.8kg(3.97lbs)
-
OEM:
-
Yes
Product Description
We are solar professionals, with more than 10 years in solar panel manufacturing
Small/custom solar panel from 40W up to 120W
MAKE INQUIRY NOW, AND ENJOY NEW CUSTOMER WELCOME DISCOUNT!
|
TECHNICAL CHARACTERISTICS (STC*)
|
|
|
|
Model
|
FEPM-100NP
|
|
|
Maximum Power (Pmp)
|
100W
|
|
|
Power Tolerance
|
0~+5%
|
|
|
Cell Efficiency
|
>22%
|
|
|
Optimum Operating Voltage (Vmp)
|
17.6V
|
|
|
Optimum Operating Current (Imp)
|
5.8A
|
|
|
Operating Temperature
|
-40°C ~ +85°C
|
|
|
MECHANICAL DATA
|
|
|
|
Solar Cells
|
N-type mono-crystalline SunPower 125*125mm
|
|
|
Front Surface
|
PET
|
|
|
Back Contact
|
Fibre glass | PET
|
|
|
Cable
|
1000mm (customisable)
|
|
|
Connector
|
Compatible | SAE | Custom connector
|
|
|
WARRANTY
|
|
|
|
Dimensions
|
1050*540*3 mm | 41.4*21.3*0.1 inches
|
|
|
Packaging Size
|
1100*580*30 mm | 43.4*22.8*1.2 inches
|
|
|
Warranty
|
12-month
|
|
It comes with standard cable and connectors
An extended power source for 12V batteries, and our P400/P500 power station
Recommend Products
>>Welcome to
contact us
<<
Our Advantages
About Company
Types of Installation
Production Process
We employ advanced equipment and skilled labour, dedicated to stringent quality control, from feeding, soldering,
electroluminescence (UL) test, lamination, framing to final inspection, fully automated with the highest manufacturing standards.
electroluminescence (UL) test, lamination, framing to final inspection, fully automated with the highest manufacturing standards.
Packaging & Shipping
USEFUL NOTES AND TIPS
To save cost on whether air delivery or sea shipment, we suggest customers to start with minimum 1 pallet, not only this will save final cost per piece, but also ensure complete protection of the products.
PACKAGING INFO
|
PANEL TYPE
|
POWER
|
PACKAGING
|
QUANTITY & WEIGHT
|
|
Foldable
|
14W
|
Single pack + corrugated carton box
|
20 pcs, 12 kg
|
|
|
21W
|
Single pack + corrugated carton box
|
20 pcs, 20 kg
|
|
|
28W
|
Single pack + corrugated carton box
|
10 pcs, 8.8 kg
|
|
|
100W
|
Corrugated carton box
|
4 pcs, 11.6 kg
|
|
|
120W
|
Corrugated carton box
|
4 pcs, 13.7 kg
|
|
|
160W
|
Single pack + corrugated carton box
|
Variable
|
|
|
320W
|
Single pack + corrugated carton box
|
Variable
|
|
Flexible
|
100W
|
Single pack + corrugated carton box
|
3 pcs, 7.5 kg
|
|
DELIVERY OPTIONS
|
Transit Time
|
Suggestions
|
|
Express courier
|
3 ~ 7 days
|
Recommended for sample order weighs less than 10 kg
|
|
Air delivery
|
4 ~ 10 days
|
Recommended for urgent delivery
|
|
Sea shipment
|
10 ~ 60 days
|
Recommended for standard order over 1CBM
|
FAQ
1. Are you a factory or trading company?
We design and manufacture small solar panel, custom solar panels, and we manufacture standard solar panel via certified factory, not only do we have manufacturing capability, we are also TUV certified party for 3rd-party production supervision.
2. Can you do OEM and ODM?
Absolutely. We offer a wide range of options for conventional panels and non-standard ones, tailored to most on/off-grid solar applications, along with our best pricing.
3. Can you do custom panel?
That is what we do, explain your idea, details, specification, we will lead the process clear and visible to come up with
technical and design solutions.
4. What is your lead time?
For convention panels, usually can be fulfilled between 2~3 weeks.
5. Can you provide sample?
Sure, please contact our representative for arrangement.
6. Why order from Fortune Energy?
· Quality with excellent design;
· Meets major international standards;
· 24-hour respond to any post sales service;
· Accept all major payment condition such as T/T and L/C.
7. What is your advantage?
· Key components are manufactured by our own;
· Combined 30+ years of experience in solar energy;
· Research and Development capability, OEM and ODM;
· Trade Assurance protected.
8. What are your main products?
On/off-grid solar panels, small solar panels, custom solar panels, portable solar power station generator, integrated solar street light/lamp, hybrid wind solar led street light/lamp.
We design and manufacture small solar panel, custom solar panels, and we manufacture standard solar panel via certified factory, not only do we have manufacturing capability, we are also TUV certified party for 3rd-party production supervision.
2. Can you do OEM and ODM?
Absolutely. We offer a wide range of options for conventional panels and non-standard ones, tailored to most on/off-grid solar applications, along with our best pricing.
3. Can you do custom panel?
That is what we do, explain your idea, details, specification, we will lead the process clear and visible to come up with
technical and design solutions.
4. What is your lead time?
For convention panels, usually can be fulfilled between 2~3 weeks.
5. Can you provide sample?
Sure, please contact our representative for arrangement.
6. Why order from Fortune Energy?
· Quality with excellent design;
· Meets major international standards;
· 24-hour respond to any post sales service;
· Accept all major payment condition such as T/T and L/C.
7. What is your advantage?
· Key components are manufactured by our own;
· Combined 30+ years of experience in solar energy;
· Research and Development capability, OEM and ODM;
· Trade Assurance protected.
8. What are your main products?
On/off-grid solar panels, small solar panels, custom solar panels, portable solar power station generator, integrated solar street light/lamp, hybrid wind solar led street light/lamp.
