Quick Details
-
Function:
-
Other
-
Brand Name:
-
ATEMPOWER
-
Model Number:
-
AP40DC
-
Place of Origin:
-
Zhejiang, China
-
Product name:
-

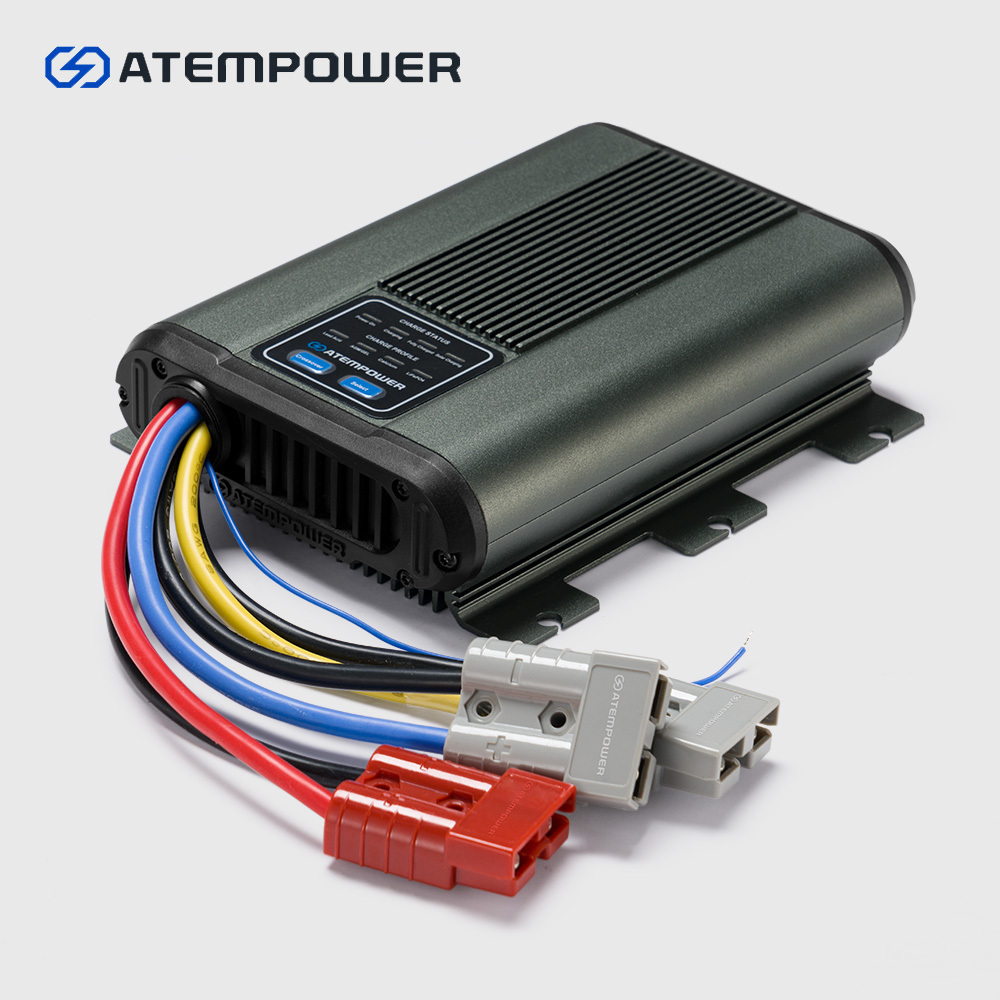

40A DC TO DC Battery Charger
-
Charger Type:
-
4 Step, Dual Battery Charger
-
Output:
-
12V/40A
-
Output Current:
-
DC Output: 40A/Solar Output: 40A
-
Equalisation:
-
Automatic
-
Certification:
-
CE, FCC
Quick Details
-
Type:
-
CAR CHARGER, Battery charger
-
Port:
-
1 x USB, TYPE-C
-
Material:
-
/
-
Function:
-
Other
-
Brand Name:
-
ATEMPOWER
-
Model Number:
-
AP40DC
-
Place of Origin:
-
Zhejiang, China
-
Product name:
-
40A DC TO DC Battery Charger
-
Charger Type:
-
4 Step, Dual Battery Charger
-
Output:
-
12V/40A
-
Output Current:
-
DC Output: 40A/Solar Output: 40A
-
Equalisation:
-
Automatic
-
Certification:
-
CE, FCC
Products Description
Specification
|
Type
|
Multi Stage
|
|
Input
|
DC Battery: 13.2-16.0 Volts
Solar Input: 16.0-25.0 Volts |
|
Output/Charging Voltage
|
14.4-15.4 Volts(Stops charging when alternator output or vehicle battery below 12.5 volts)
|
|
Output Current
|
DC Output: 40A/Solar Output: 40A
|
|
Minimum Start Voltage
|
2.5 Volts-For battery being charged
|
|
Soft Start
|
Yes
|
|
Soft Charge Current
|
40 A
|
|
Bulk Charge Voltage
|
14.7V(AGM/Gel)14.4V(Lead Acid)15.4V(Calcium)14.4V(LiON)
|
|
Absorption
|
Constant voltage with automatic amperage control
|
|
Equalisation
|
automatic
|
|
Float Charge Voltage
|
13.5V(AGM/Gel)13.5V(Lead Acid)13.5V(Calcium)
|
|
Float Charge Current
|
100mA
|
|
Battery Range
|
120 to 1200Ah
|
|
0-1 Metres
|
10AWG
|
|
1-5 Metres
|
6AWG
|
|
5 metres
|
4AWG
|
Description
If you’re planning an off-grid camping, a DC-DC charger by ATEM POWER will be your perfect companion for a dual battery setup when you cannot access main power. This device, which is designed to do a full charge cycle with the ability to choose either Lead Acid, AGM, Gel, calcium, LiON batteries and apply the suitable charging profile to prolong their lifespan, also incorporates Re-selection Ready mechanism that allows you to re-select the battery during charging by long pressing “POWER”. And it can be connected indefinitely when you’re all set up! This ATEM POWER DC-DC charger is also a fully multi input charger that is able to charge from either an alternator to get the best possible rate of flow into your secondary battery and keep it up on the drive or via solar power with the built-in MPPT controller for faster charging and reducing load on your engine! And a multiple of protections are integrated to keep battery safe especially in case of accidental terminal misconnection.
