Quick Details
-
Brand Name:
-
IVEN
-
Voltage:
-
380V / 50HZ
-
Power:
-
4000
-
Dimension(L*W*H):
-
5260*1830*2000 mm
-
Weight:
-
1600 kg
-
Marketing Type:
-
New Product
-
Product Name:
-
Automatic Carton Box Making Machine Uses Flat Board Packing
-
Production speed:
-
10-15 boxes/min
-
Table Height:
-
800 mm
-
Air Supply:
-
150L/min 6Mpa
-
Material:
-
Paper
-
Advantage:
-
High Capacity
-
Feature:
-
Stable Performance
-
Machine for:
-
Packaging
-
After Warranty Service:
-
Video technical support,Field maintenance and repair service
-
Certification:
-
CE; ISO; GMP
Quick Details
-
Production Capacity:
-
200 pcs/min
-
Product Type:
-
Box Packaging
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
IVEN
-
Voltage:
-
380V / 50HZ
-
Power:
-
4000
-
Dimension(L*W*H):
-
5260*1830*2000 mm
-
Weight:
-
1600 kg
-
Marketing Type:
-
New Product
-
Product Name:
-
Automatic Carton Box Making Machine Uses Flat Board Packing
-
Production speed:
-
10-15 boxes/min
-
Table Height:
-
800 mm
-
Air Supply:
-
150L/min 6Mpa
-
Material:
-
Paper
-
Advantage:
-
High Capacity
-
Feature:
-
Stable Performance
-
Machine for:
-
Packaging
-
After Warranty Service:
-
Video technical support,Field maintenance and repair service
-
Certification:
-
CE; ISO; GMP

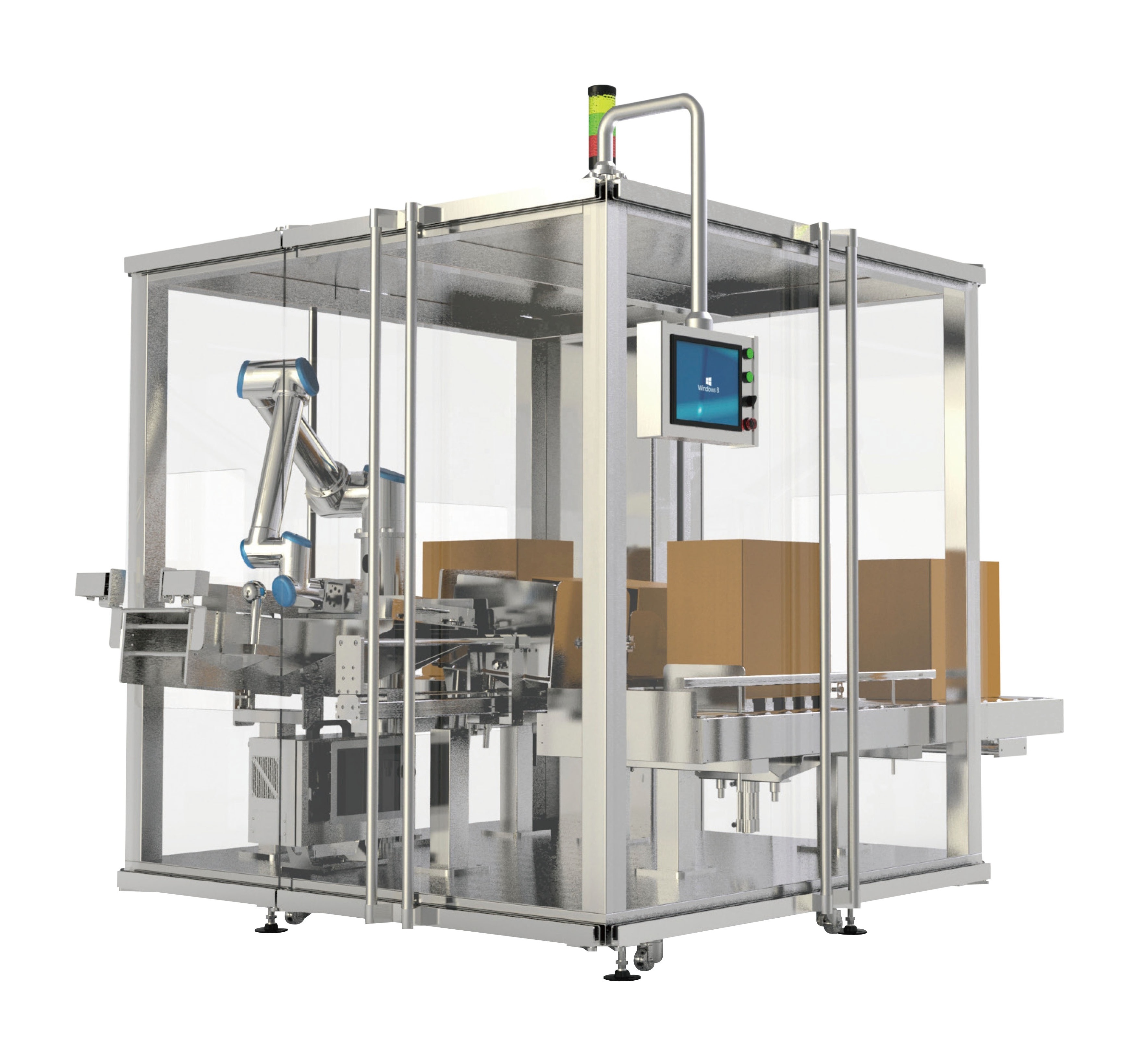

Automatic Cartoning Machine is suitable for packing blisters, tubes ampoules and other related objeces into boxes intermittently.It has advantage of high packing efficiency and good quality.
This machine can fold leafIet, open box, insert blister into box, emboss batch number and close box automatically. It adopts inverter to adjust speed, human machine interface to operate, PLC to control. and photoelectric to monitor and control each station automatically, so that once something unexpected happen,
it will stop and display the reasons automatically, which can solve the troubules in time. This machine can be used separately andalso can be linked together machine to be a Production line. Note: this machine canalso equip with hot meltgluedevice to do hot melt glus sealing for box.
Main Technical Parameters
| Model | ZHJ-80 | ZHJ-120 | ZHJ-150 |
| Production capacity | ≤80 boxes/min | ≤120 boxes/min | ≤150 boxes/min |
| Size of box(L×W×H) | (50-190)×(25-90)×(15-70)mm | (50-190)×(25-120)×(12-70)mm | (50-190)×(25-90)×(15-70)mm |
| Specification of box | 250-300g/m2 | 250-300g/m2 | 250-300g/m2 |
| Size of leaflet(L×W) | (110-260)×(100-180)mm | (110-260)×(100-180)mm | (110-260)×(100-180)mm |
| Specification of leaflet | 55-70g/m2 | 55-70g/m2 | 55-70g/m2 |
| Air consumption | 10m3/h | 10m3/h | 10m3/h |
| TotaI Power | 380V 50HZ 1.5kw | 380V 50HZ 1.5kw | 380V 50HZ 1.5kw |
| Overall Dimension(L×H×W) | 3300×1320×1700mm | 3300×1200×1700mm | 3300×1200×1700mm |
| Weight | 1200kg | 1500kg | 1500kg |
