DZJX Automatic Hydraulic Vacuum Vulcanization Machine Rubber Silicone O Ring Heating Element Vulcanizing Press Molding Machine
DZJX Automatic Hydraulic Vacuum Vulcanization Machine Rubber Silicone O Ring Heating Element Vulcanizing Press Molding Machine
DZJX Automatic Hydraulic Vacuum Vulcanization Machine Rubber Silicone O Ring Heating Element Vulcanizing Press Molding Machine
DZJX Automatic Hydraulic Vacuum Vulcanization Machine Rubber Silicone O Ring Heating Element Vulcanizing Press Molding Machine
DZJX Automatic Hydraulic Vacuum Vulcanization Machine Rubber Silicone O Ring Heating Element Vulcanizing Press Molding Machine
DZJX Automatic Hydraulic Vacuum Vulcanization Machine Rubber Silicone O Ring Heating Element Vulcanizing Press Molding Machine
DZJX Automatic Hydraulic Vacuum Vulcanization Machine Rubber Silicone O Ring Heating Element Vulcanizing Press Molding Machine
DZJX Automatic Hydraulic Vacuum Vulcanization Machine Rubber Silicone O Ring Heating Element Vulcanizing Press Molding Machine

DZJX Automatic Hydraulic Vacuum Vulcanization Machine Rubber Silicone O Ring Heating Element Vulcanizing Press Molding Machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $4500
≥5 Sets
US $4400
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Dimension(L*W*H):
100*100*120mm
Weight:
500
Power (kW):
3KW

Quick Details

Place of Origin:
Henan, China
Brand Name:
DZJX
Voltage:
380V/customizable
Dimension(L*W*H):
100*100*120mm
Weight:
500
Power (kW):
3KW
Product Description

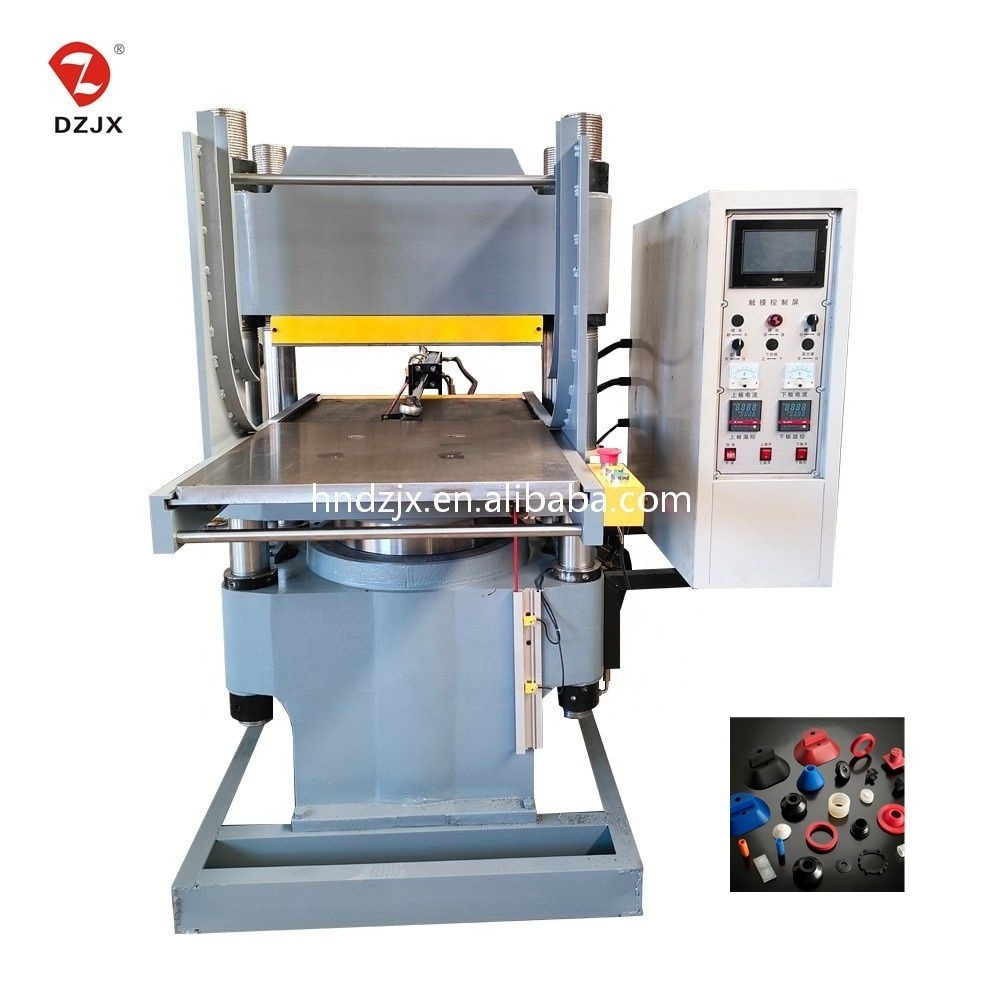

DZJX Automatic Hydraulic Vacuum Vulcanization Machine Rubber Silicone O Ring Heating Element Vulcanizing Press Molding Machine
DZJX Rubber Hot Molding Press /Hydraulic Hot Press Rubber Machine /Rubber Vulcanizing Press is suitable for producing various kinds of industrial rubber parts ,auto parts , bottle stopper , melamine and multi layer molded products for civil use.
Main Features
1.2RT/3RT/4RT mold ejector mold opening device , which is suitable for two layer ad three layers molds ;
2.The oil system is unique in design with good stability , fast lift-up and lift-down speed compared with other brands when unloading /loading mold;
3.With function of slow speed alignment adjusting , the adjustment is more precise and safe ;
4.The accurate placement of the loading/unloading mold has the 100% placement safety design , protecting the mold from being damaged;
5.The speed of mold raising and closing can be adjusted accurately and safe.
Product Show
Technical Parameters
Model
DZJX-100T
DZJX-160T
DZJX-250T
DZJX-300T
Total pressure
100T
160T
250T
300T
plate size
450*450mm
500*500mm
650*600mm
700*700mm
daylight
300mm
300mm
300mm
300mm
plunger stroke
300mm
300mm
300mm
300mm
unit pressure
4.9Mpa
6.4Mpa
7Mpa
6.1 Mpa
motor
3 kw
4 kw
5.5 kw
7.5 kw
function
quick mold opening / mold ejector /tilting plate
Application
Automatic plate vulcanizing machine is suitable for vulcanizing all kinds of rubber plastic model products and non - model products.
