2,Supporting dust removal equipment to prevent dust from flying and protect employee health.
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
customized
-
Dimension(L*W*H):
-
Optional
-
Weight:
-
400 KG
-

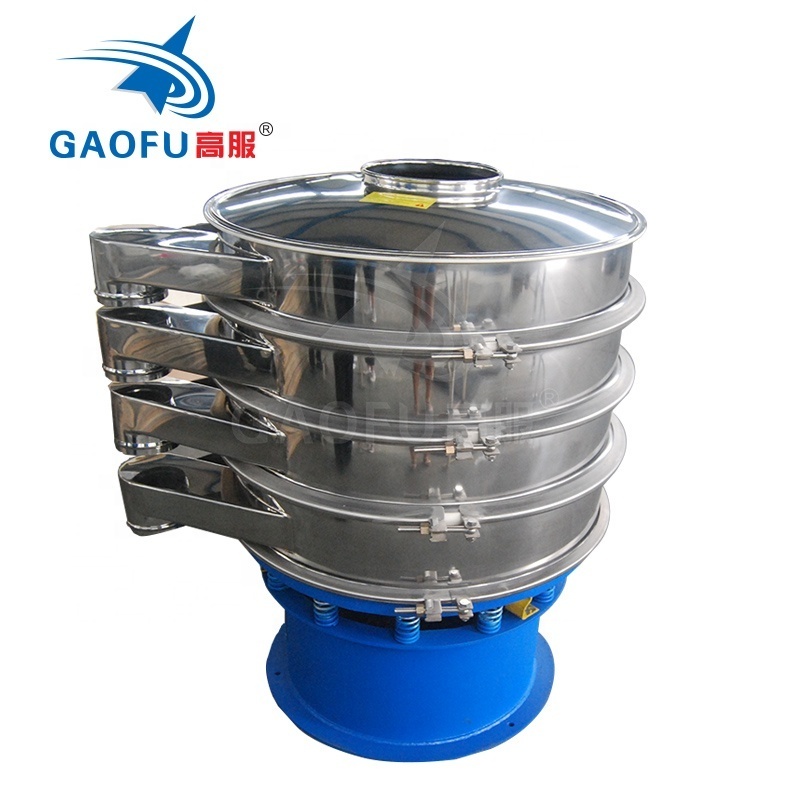

Product name:
-
Rotary Vibrating Screen
-
Motor:
-
Vertical Vibrating Motor
-
Material:
-
Carbon Steel/ Stainless Steel 304
-
Function:
-
Screening\separation\sorting\sieving
-
Layer(s):
-
1-5 Layers
-
Cleaning system:
-
Bouncing Ball
-
Color:
-
Silver
-
Screen Mesh:
-
2-500 Mesh
-
Surface treatment:
-
Mirror Polishing
-
Capacity:
-
100Kg-10Tons/hour
Quick Details
-
Type:
-
Circular
-
Place of Origin:
-
HEN
-
Brand Name:
-
Gaofu
-
Voltage:
-
customized
-
Dimension(L*W*H):
-
Optional
-
Weight:
-
400 KG
-
Product name:
-
Rotary Vibrating Screen
-
Motor:
-
Vertical Vibrating Motor
-
Material:
-
Carbon Steel/ Stainless Steel 304
-
Function:
-
Screening\separation\sorting\sieving
-
Layer(s):
-
1-5 Layers
-
Cleaning system:
-
Bouncing Ball
-
Color:
-
Silver
-
Screen Mesh:
-
2-500 Mesh
-
Surface treatment:
-
Mirror Polishing
-
Capacity:
-
100Kg-10Tons/hour
Product Description
Specification
|
Model
|
Effective diameter
(mm)
|
Sieve area
(m2)
|
Mesh
|
Layer
|
Power(KW)
|
|
|
|
|
|
|
|
|
Vibration motor
|
Common motor
|
|
|
S49-400
|
Φ340
|
0.0907
|
|
|
0.18
|
------
|
|
|
S49-600
|
Φ540
|
0.2289
|
|
|
0.25
|
0.75
|
|
|
S49-800
|
Φ730
|
0.4183
|
|
|
0.55
|
1.1
|
|
|
S49-1000
|
Φ900
|
0.6359
|
|
|
1.1
|
1.5
|
|
|
S49-1200
|
Φ1100
|
0.949
|
|
|
1.1
|
1.5
|
|
|
S49-1500
|
Φ1400
|
1.5386
|
|
|
1.5
|
2.2
|
|
|
S49-1800
|
Φ1700
|
2.2687
|
|
|
4
|
3
|
|
|
S49-2000
|
Φ1886
|
2.7922
|
|
|
4
|
3
|
|
S49-A series slurry vibro sieve use upright motos as the source of vibration ,equipped eccentricity hammer on the both sides of motor,change circumtotate to horizontal ,vertical and inclined movement ,then pass these three movement to the surface of the screen .Adjust the angle on the both sides of the top and bottom to change the movement orbits of the surface screen .
1
Observation hole /
Dust collection hole :
1，Observe the operation of materials ,adjust the excitation force of the equipment in time to ensure the effect of equipment operation .
2
Screen Frame：
1，A variety of screen frame forms are available to meet the needs of different materials .
2, Easy to replace the screen.
3
Gate
1，Freely control the discharge speed and quantity of materials .
2,Convenient for customers to clean the screen surface.
4
Cleaning device：
1,Classic mesh cleaning device , a variety of materials available to meet the needs of different industries.
2, Bouncing ball matched with the ring, the mesh cleaning effect is obvious ,and the cleaning performance is super high.
5
Fuma Wheel :
1, International size ,high -quality nylon,thick and wear-resistant,stable and easy driving.
2,The screw setting is easy to expand and contract,just turn up and down by one turn.
3,Thicker bracket, more stable and convenient to use .
6
Vibration motor ：
Self-produced vibration motor， meet with explosion-proof standards,stable performance and convenient maintenance.
Food industry
Pharmaceutical industry
Filtration
Feed
Powder coating
Pigment
Plastic
Battery material
Metallurgy
